Festool 577420 Plunge-Cut Saw TS 60 KEBQ-Plus-FS 240V
Product Code: FES/577420-PK
Brand: Festool
Several options are available for this product.
Please Choose Below
Festool 577420 Plunge-Cut Saw TS 60 KEBQ-Plus-FS 240V - Set with Guide Rail
Worlds apart. The benchmark in sawing.

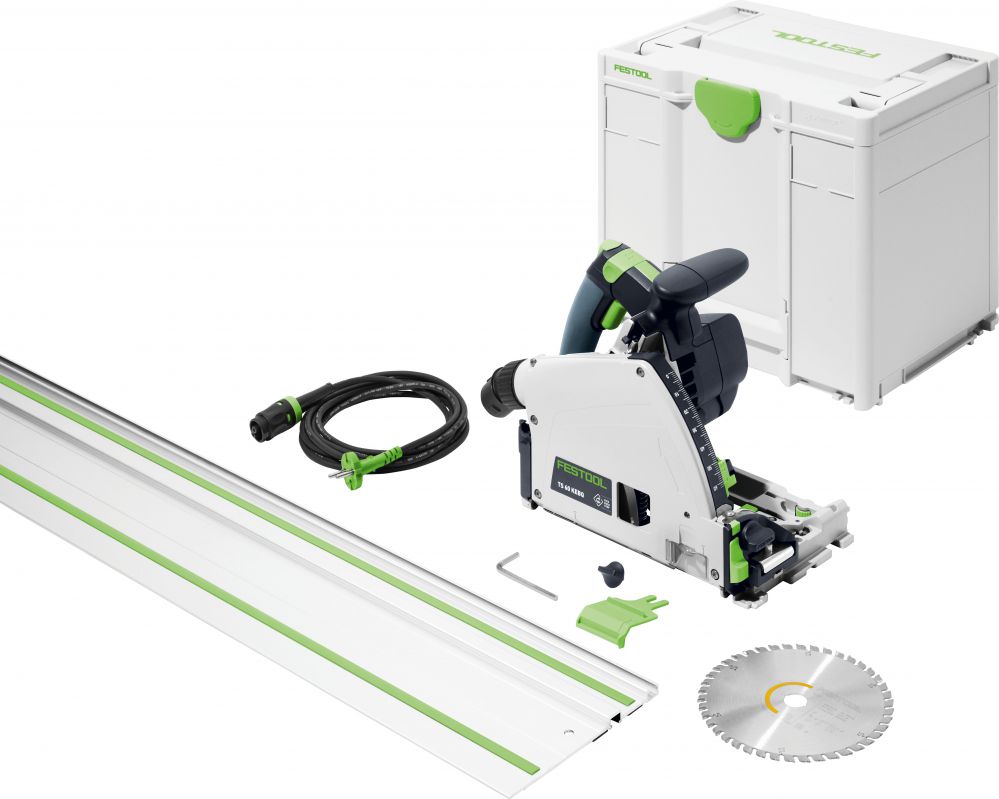

Items included
- Plunge cut saw TS 60 KEBQ 240V
- Flag window; vision panel
- Hex key WAF 5
- Splinterguard
- Systainer SYS3 M 337
- Wood Fine Cut HW 168 x 1.8 x 20 WD42 Circular Saw Blade
- PLUS Guide rail FS 1400/2

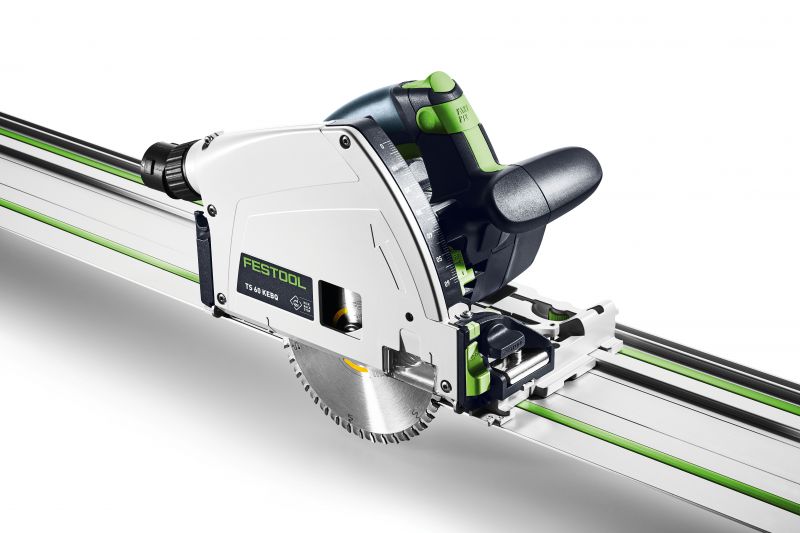

Festool TS 60 Plunge-Cut Saw TS 60 K KEBQ-Plus 240V
Festool plunge-cut saws have been setting the standard for saws for decades. The Festool TS 60 K is redefining this yet again. In the blink of an eye, the unique KickbackStop protects your workpiece and minimises the risk of injury. Perfectly coordinated with the entire Festool saw system and with a cutting depth of 60 mm. The most versatile saw of its kind guarantees you premium work results. Of course, this is also the case for mitre cuts and solid worktops. The Festool TS 60 K now offers the unrivalled opportunity to combine it with the cross-cutting guide rail. In just a few steps, this produces a portable and easy-to-use compound mitre saw system for accurate angle cutting. Thanks to the latest-generation brushless EC-TEC motor, the compact plunge-cut saw is extremely robust and powerful. It saws like a hot knife through butter, combining precision, flexibility and the highest cutting quality – whilst also offering enhanced safety. The Festool TS 60 K: Worlds apart.
Key Features
- Safer: The unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece
- Dive deeper: Greater cutting depth, at the same size and weight as the TS 55 F
- Versatile: Option to combine with the tried-and-tested guide rails and now with the FSK cross-cutting guide rails too
- Constant: EC-TEC motor in combination with the thin kerf saw blades ensures work progresses quickly whilst requiring less effort
- Precise: Simple, precise and repeatable mitre cuts can be achieved by setting mitre angles from -1° to 47°
- Convenient: The FastFix spindle stop and sophisticated design make it extremely easy to change the saw blade
- Best orientation: A transparent sliding viewing window provides a good view of the saw blade
Strengths and benefits
- The integrated KickbackStop reduces the risk of injury and damage to the workpiece caused by kickback during sawing or plunge-cutting into the workpiece. Once the saw has been triggered, it is ready for use straight away without replacements or additional costs.
- The plunge-cut saw enables precise cuts at cutting depths of up to 60 mm in a compact design. The TS 60 K offers a greater cutting depth, at the same size and weight as the TS 55 F. Even for mitre cuts of 45°, materials of up to 40 mm can be cut with the guide rail.
- The TS 60 K plunge-cut saw can also be combined with the FSK cross-cutting guide rail, for a portable system enabling quick and accurate cross cuts to be made. Together with the tried-and-tested guide rails, the TS 60 K can offer maximum flexibility of use.
- The brushless EC-TEC motor makes the TS 60 K virtually maintenance-free and extremely powerful. In combination with the thin kerf saw blades, the high-speed 6800 rpm brushless EC-TEC motor ensures work progresses quickly whilst requiring less effort.
- The cutting edge from 90° to 47° remains unchanged even when the saw swivels. The result is precise, every time. Thanks to the metal swivelling segment, the required mitre angle of -1° to 47° can be easily and precisely set from the front, ensuring repeat accuracy.
- The FastFix spindle stop makes it extremely easy to change the saw blade. The compact, sophisticated design means the saw can be set down on its side, which simplifies changing of the saw blade. Thanks to the form-fit connection, nothing gets caught in the clamping flange during saw blade replacement either.
- The transparent sliding viewing window and the additional markings for the starting and end point, now also on the right, provide a good view of the saw blade.
- The improved accuracy of the cutting depth setting, with a dual indicator and fine adjustment guarantees exact setting. Improved handling and parallax-free reading come as standard.
- The Festool dust extraction system is well designed, right down to the smallest detail. Improved extraction with the Cleantec system sleeve and a viewing window which can be lowered make virtually dust-free working a reality.
- With the clip-on splinter guard in combination with the guide rail, it is even possible to saw on both sides without virtually any splinters.
- Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table, angle stop and splinter guard, we offer a top-class sawing system.
- The slimline housing allows users to make cuts up to the edges and in close proximity to the wall (12 mm).
- Our fitted control electronics enable temperature monitoring, a quick-acting brake and speed control for optimum adaptation to the material.
- The KickbackStop can be manually deactivated, for example when working without a guide rail on uneven material. The advantage: The KickbackStop is automatically reactivated the next time the saw is switched on.
Applications
- Precise plunge cuts in materials up to 60 mm thick
- Cutting interior doors to length using guide rail and circular saw
- Cutting recesses in doors and kitchen worktops
- Cutting chipboard to size (chipboard, veneered and plastic-coated panels)
- Cross cuts with the FSK cross-cutting guide rail (floor panels, slats, boards)
- Manufacturing expansion joints in parquet flooring and false joints
Technical details
- Power consumption: 1 500 W
- Idle engine speed: 3 000 - 6 800 min⁻¹
- Saw blade diameter: 168.00 mm
- Angular range: -1 - 47 °
- Cutting depth: 0 - 62 mm
- Cutting depth 45°: 45 mm: Dust extraction connection dia.: 27/36 mm
- Cable length: 4.00 m
- Product weight: 4.80 kg
- Drive type: Mains
Festool TS 60 KEBQ Owners Manual
Festool FS 1400/2 Plunge Saw Guide Rail
Key Features
- Impeccable Guidance
- Invented and perfected by Festool: The guide rail. For making cuts and grooves with impressive precision. With slideway lining for guaranteed machine smoothness, a groove for screw and lever clamps and splinter guard for splinter-free sawing. Making breakthroughs in precision and convenience since 1964. The original is available in eight different lengths from 800 to 5000 mm.
Strengths and benefits
- Runs as if lubricated due to the slideway lining
- Safe Limit due to the kickback stop accessory that can be attached
- Precise angles can be cut in conjunction with the combination bevel accessory
- Perfectly straight cuts when used alongside a festool jigsaw
- Exact grooves when using the router guide rail adapter
- Zero play can be achieved with no tool adjustment of the saw guidance jaws
- A firm hold due to the cushion strips on the rear of the rail
- No splinters with a well positioned splinter guard
- Easily connected to extend the rail capacity
- No getting hoses and cables caught up with the rail deflector attached
Main areas of use
- Safe, perfectly straight power tool guidance
- Splinterguard for splinter-free sawing
- Can be properly positioned even on smooth materials because of the backing layer for gripping
- Protects the workpiece surface from being damaged
- Additional groove for use with accessories permits additional applications
- Coating for smooth running on the machine
Specification
- Length: 1400mm
Product Videos
Items Included
;)
1 X Festool 491498 Festool Guide Rail FS 1400/2
;)
1 X Festool 576724 Plunge-Cut Saw TS 60 KEBQ-Plus 240V
