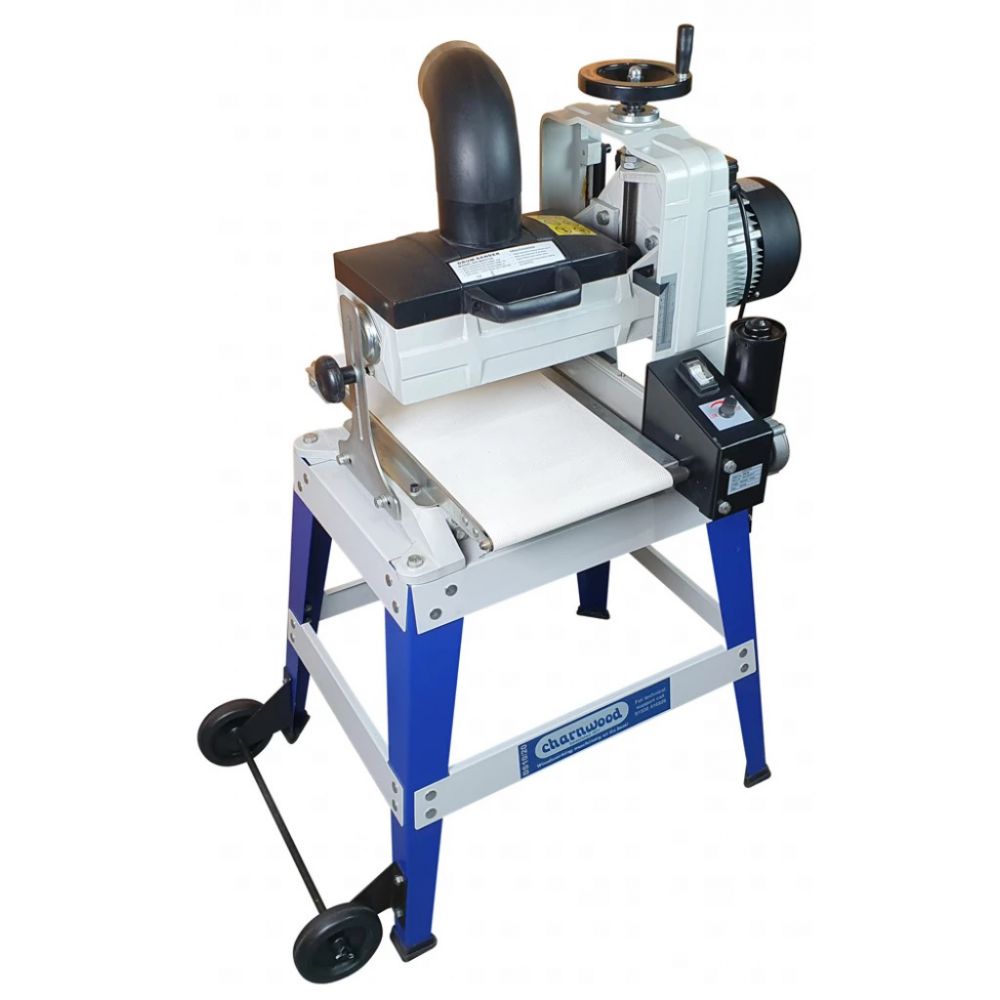

Charnwood DS10/20 10" Drum Sander

Charnwood 10" Drum Sander

ref: DS10/20

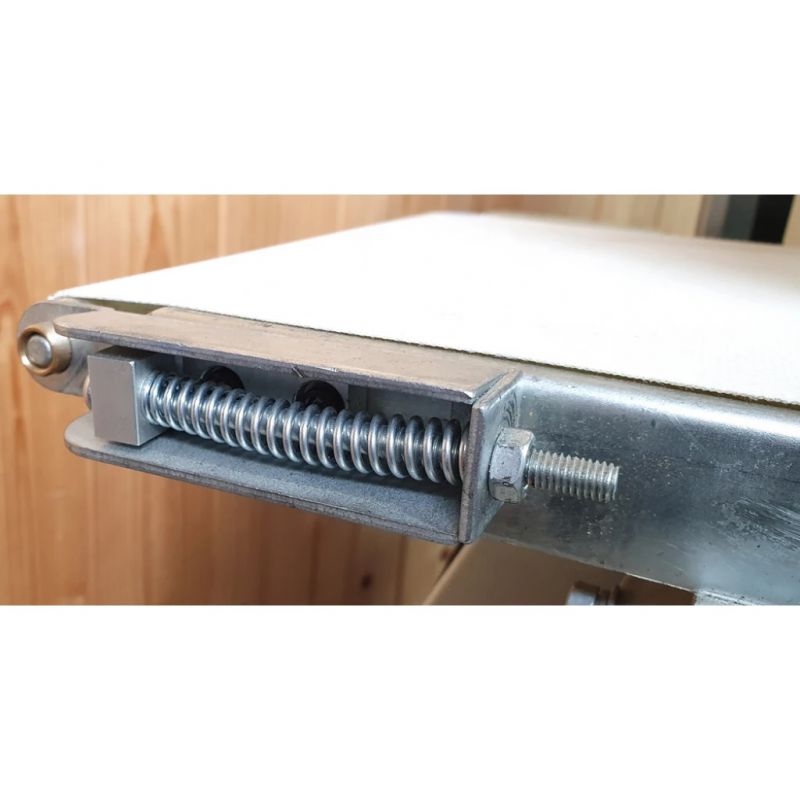

• After planing timber, the drum sander can be used to complete the finishing process. The work piece is fed through the sander on a powered conveyor belt with a variable speed control to achieve an optimum finish on all timber types.

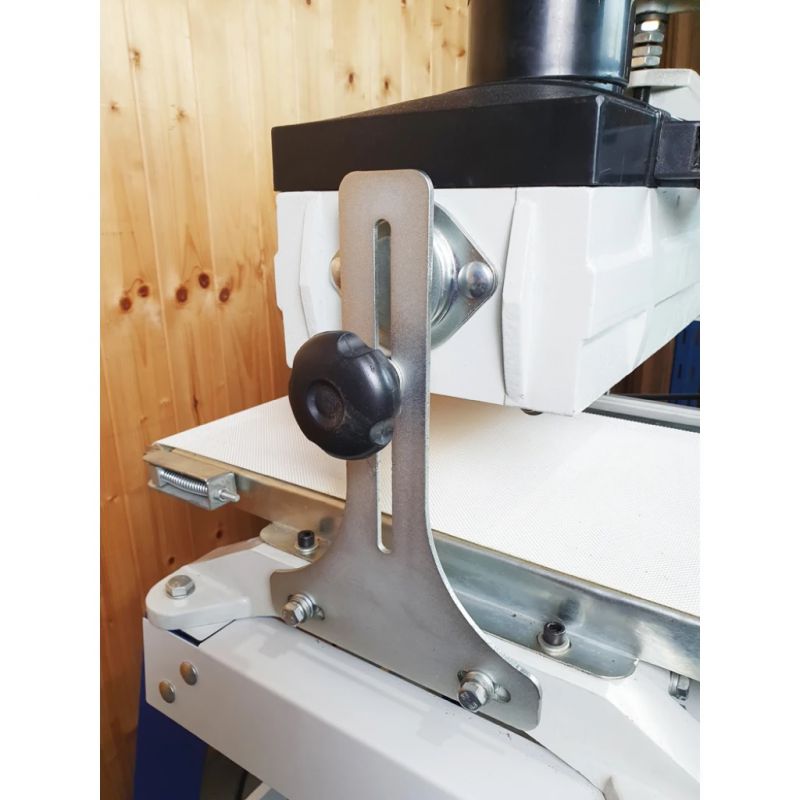

• The single pass capacity of the machine is 250mm (10″). However, by removing the side plate (which is fitted with a quick removal mechanism) the work piece can be fed through the now open end of the sander giving a capacity of up to 500mm (20″) by making 2 passes.

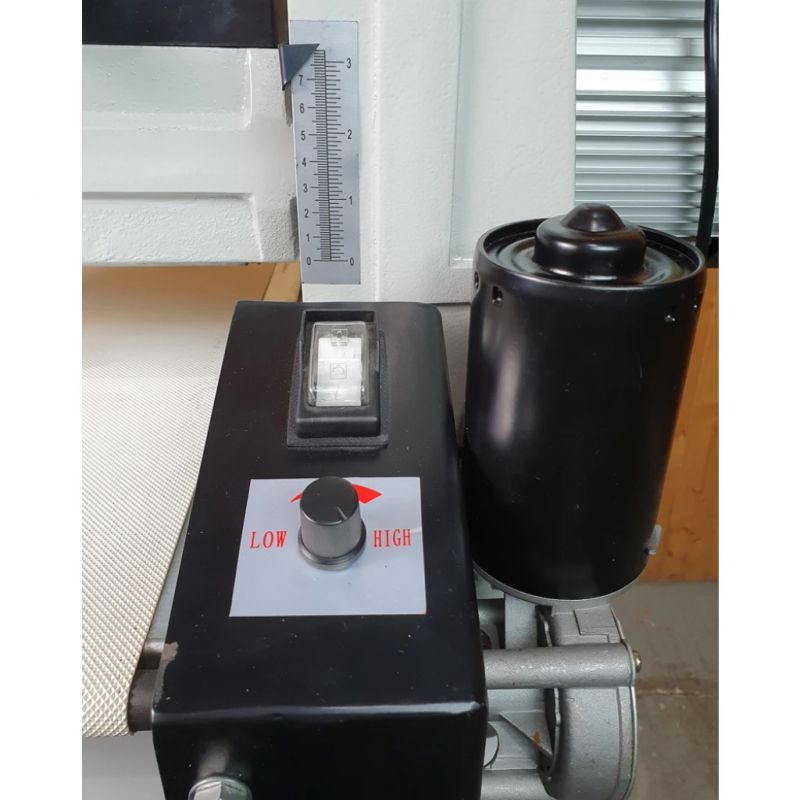

• The height of the sanding drum is adjusted using a large hand wheel and the position read off the scale, which is graduated in both millimetres and inches.

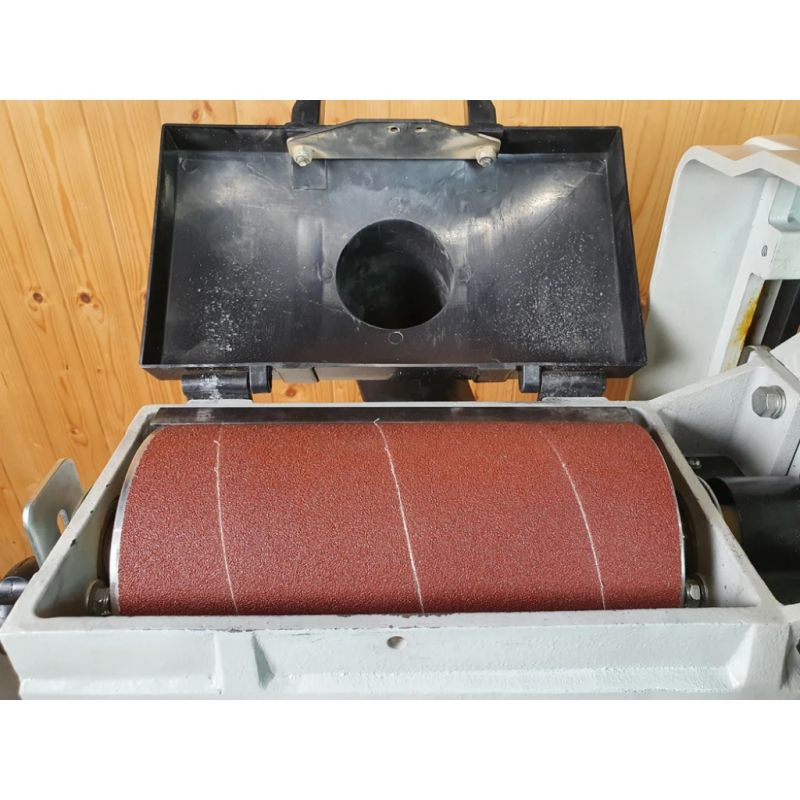

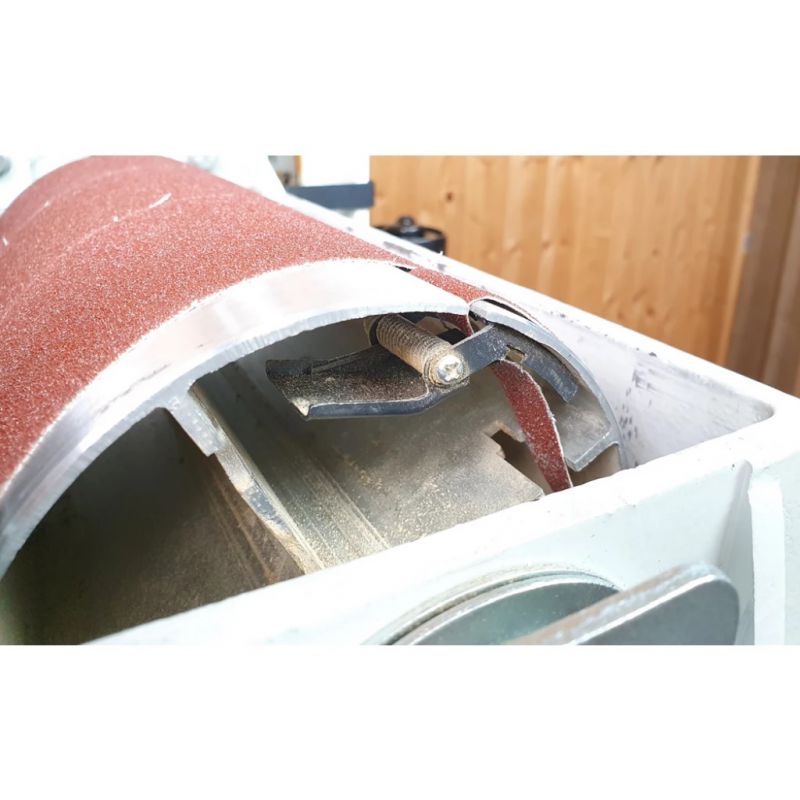

• Changing the sandpaper wrap is a simple task which requires no tools. Our sanding wraps are pre-cut with a taper at each which is clamped into each end of the drum. If you are using a sandpaper roll, you will need to make a template and cut the tapers before fitting.

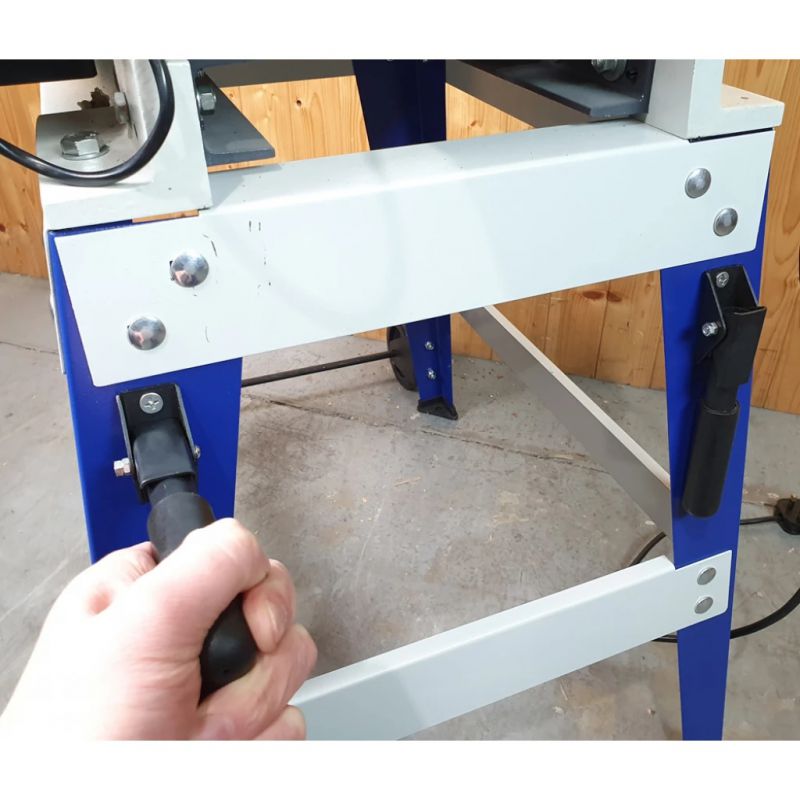

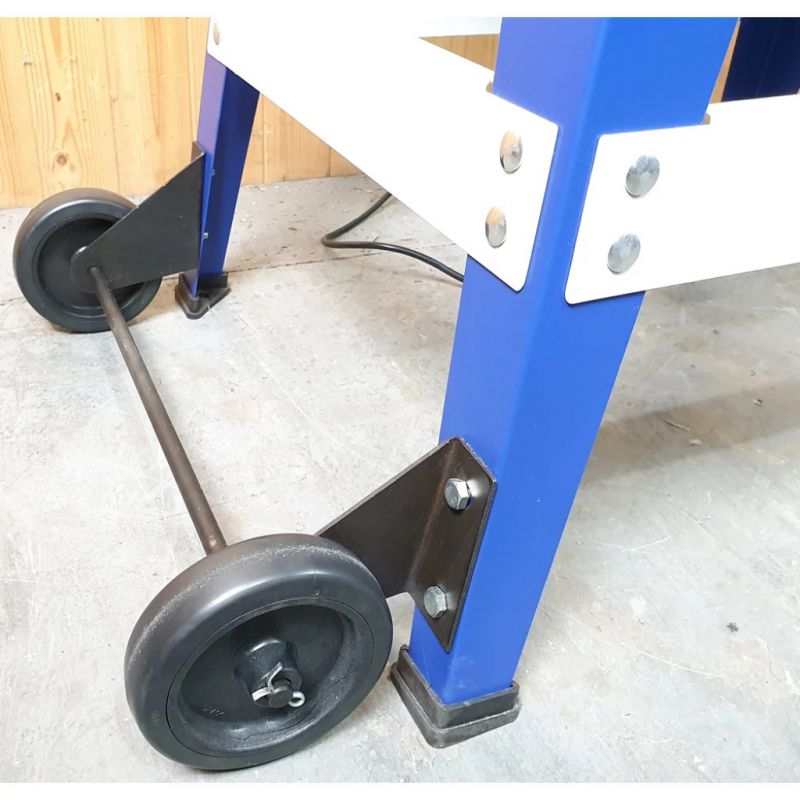

• Mobility is no problem thanks to the wheels and lifting handles provided.
• Supplied with a fitted 80 grit sanding wrap, floor stand, wheels & lifting handles, dust port elbow, 2.0m cable and UK 3 pin plug.

• 10″ Sanding Width in a Single Pass
• 20″ Sanding Width using 2 Passes
• Variable Speed Feed Conveyor
• Floor Stand Included
• Wheel Kit Included

• Maximum Width (1 Pass): 255mm (10″)
• Maximum Width (2 Passes): 505mm (20″)
• Maximum Workpiece Thickness: 75mm (3″)
• Minimum Workpiece Thickness: 5mm (1/5″)
• Minimum Length: 65mm (2.6″)

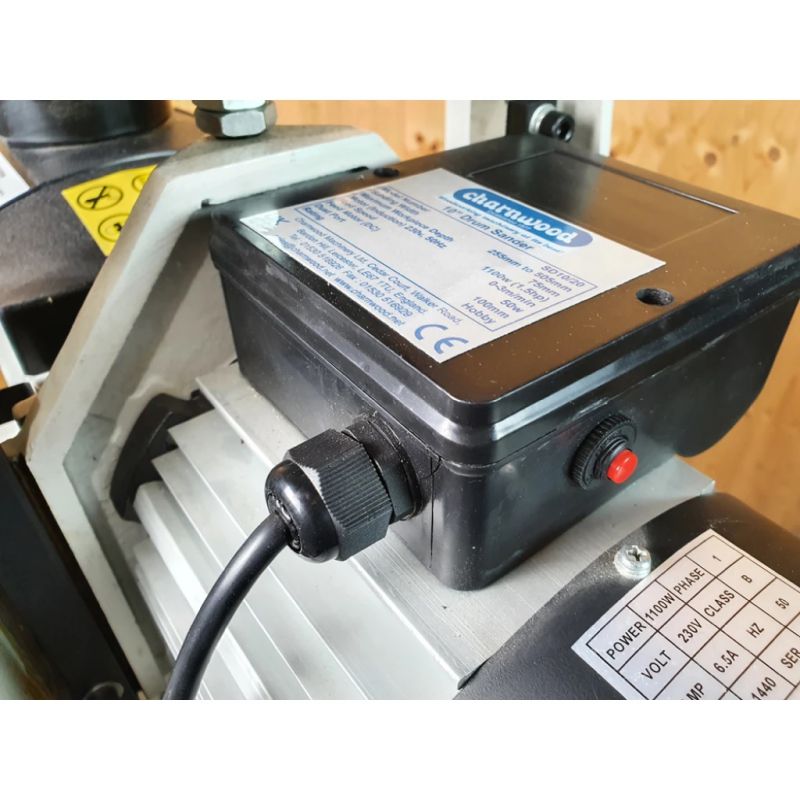

• Drum Motor (Induction) 230v, 50Hz: 1100w (1.5hp), 240v, 50hz
• Drum Speed: 1440rpm
• Drum Size (Diameter / Length): 132mm / 260mm
• Conveyor Motor (DC): 50w (1/15hp)
• Conveyor Speed (Variable): 0-3.5m/min
• Dust Port Diameter: 100mm
• Dust Collection Minimum Requirement: 1000m3/hour (50 Litres per second)
• Assembled Dimensions (WxDxH): 900 x 590 x 1140mm
• Shipping Dimensions (WxDxH): 800 x 640 x 640mm
• Weight (Net/Gross): 72kg / 100kg
• Assembly Time Required: 1 hour
• Rating: Hobby
• Product Guarantee: 5 Years

Please note: We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.
