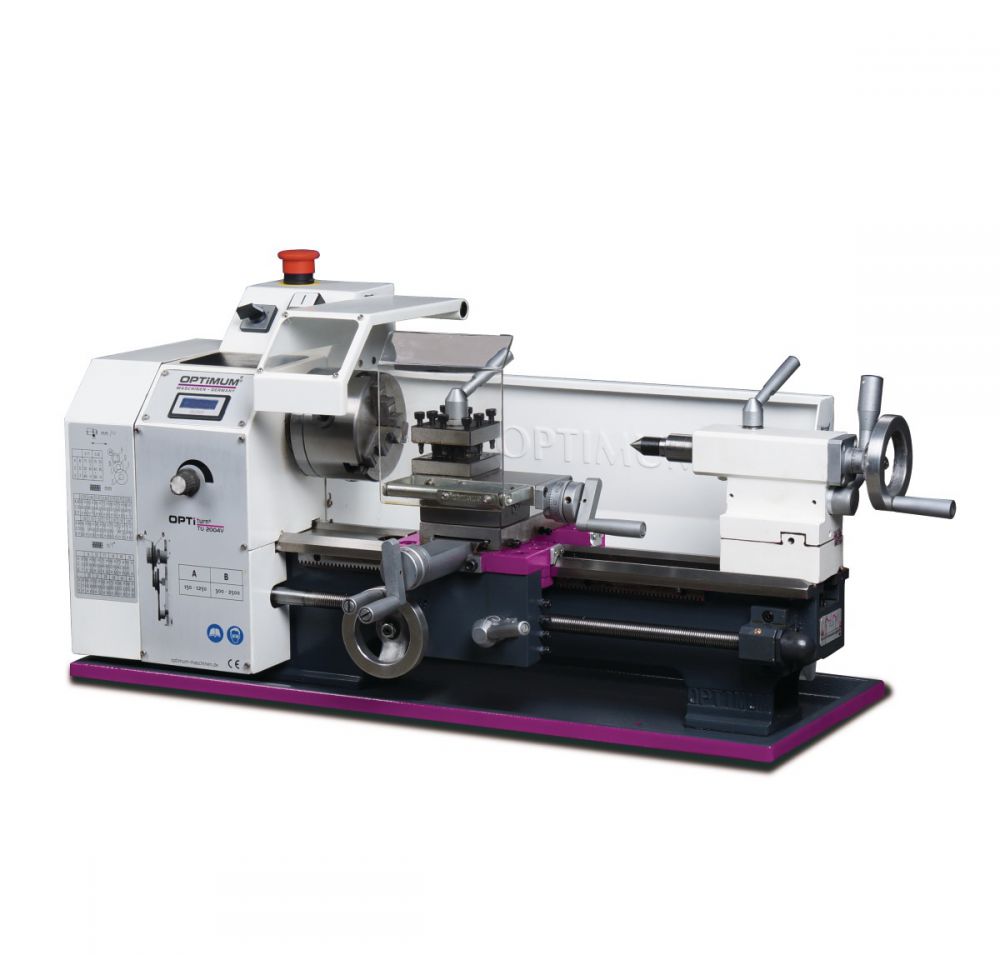

Sturmer Optimum OPTIturn TU 2004V Metal Turning Lathe 230v
Product Code: STU/3420310
Brand: Stuermer
£1,559.99 Inc. VAT
£1,299.99 Exc. VAT
Sturmer Optimum
OPTIturn TU 2004V Metal Turning Lathe 230v
ref: 3420310
Modeling lathe with electronically adjustable speed and digital speed display.
Key Features
- OPTI-turn TU 2004V Metal turning lathe + 300x100mm capacity + electronic speed range 150-2500 rpm + MT1 spindle cone + guaranteed concentricity of spindle nose to 0.009mm + R & L rotation + 3 jaw lathe chuck + 600W motor 230v
- Precise processing
- Heavily ribbed prism bed made of cast steel, inductively hardened and precision ground
- Hardened and ground Z-axis guideway
- Hardened spindle nose (DIN 6350)
- Guaranteed concentricity of the spindle nose better than 0.009 mm
- Automatic longitudinal / lead screw drive
- Roll-rolled trapezoidal thread of the lead screw
- Leadscrew stored in two sintered bearings
- Longitudinal, top and top slides
- Right / left rotation in the control panel switchable
- Hardened main spindle mounted in adjustable precision tapered roller bearings
- Tapered roller bearings in P5 quality
- Cylindrical center mount
- Hardened spindle nose with Ø 21 mm spindle bore
- Chuck concentricity better than 0.04 mm
- Tailstock adjustable for bow turning
- Tailstock quill and handwheel with adjustable fine scale 0.02 mm
- Fast, easy and tool-free adjustment by means of a clamping lever
- Emergency stop impact switch
- Lathe chuck protection
- thrust bearing
- Change gear
- Quadruple steel holder, rotatable
- Replacement gear set in the standard scope of delivery enables large thread cutting area
- 3-jaw lathe chuck in the standard scope of delivery
- EMC filter class C1
Technical details
Dimensions and weights
- Length approx.: 830 mm
- Width/depth approx.: 425 mm
- Height approx.: 360 mm
- Weight approx.: 65 kg
Electrical Data
- Drive motor output: 0,6 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Feed
- Longitudinal feed range: 0,1 – 0,2 mm/rev
- Number of longitudinal feeds: 2
Pitches
- Metric pitch: 0,25 – 3 mm/rev
- Number of metric pitches: 14
- Imperial pitch: 44 – 8 Gg/1"
- Number of imperial pitches: 12
Speed range
- Number of gears: 2
- Speed range: 150 – 2500 min¯¹
- Speed control: electronically adjustable
Spindle
- Spindle bore/rod passage diameter: 21 mm
- Tool holder max. chuck height: 12 mm
- Chuck passage diameter: 20 mm
- Spindle cone: MK 3
Standards and certifications
- Standard: DIN EN 55011
- EMC level: C1
Tailstock
- Chuck: MK 2
- Quill stroke: 65 mm
Travel
- Travel upper slide: 55 mm
- Travel cross slide: 75 mm
- Travel carriage saddle: 300 mm
Work areas
- Max. height: 100 mm
- Max. width: 300 mm
- Swing diameter above planing slide: 110 mm
- Bed width: 100 mm
- VPE: 1
