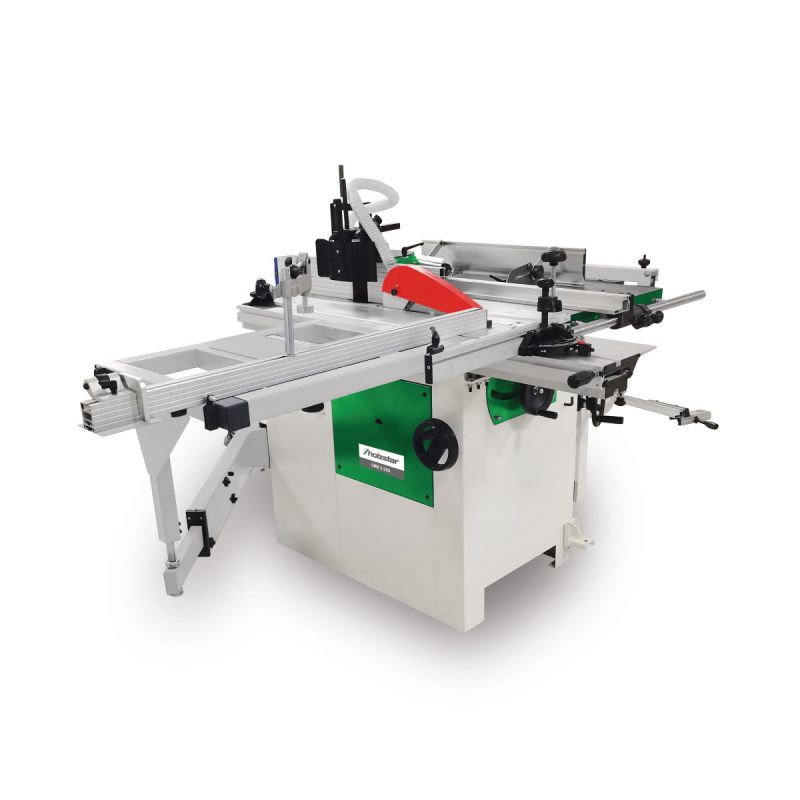

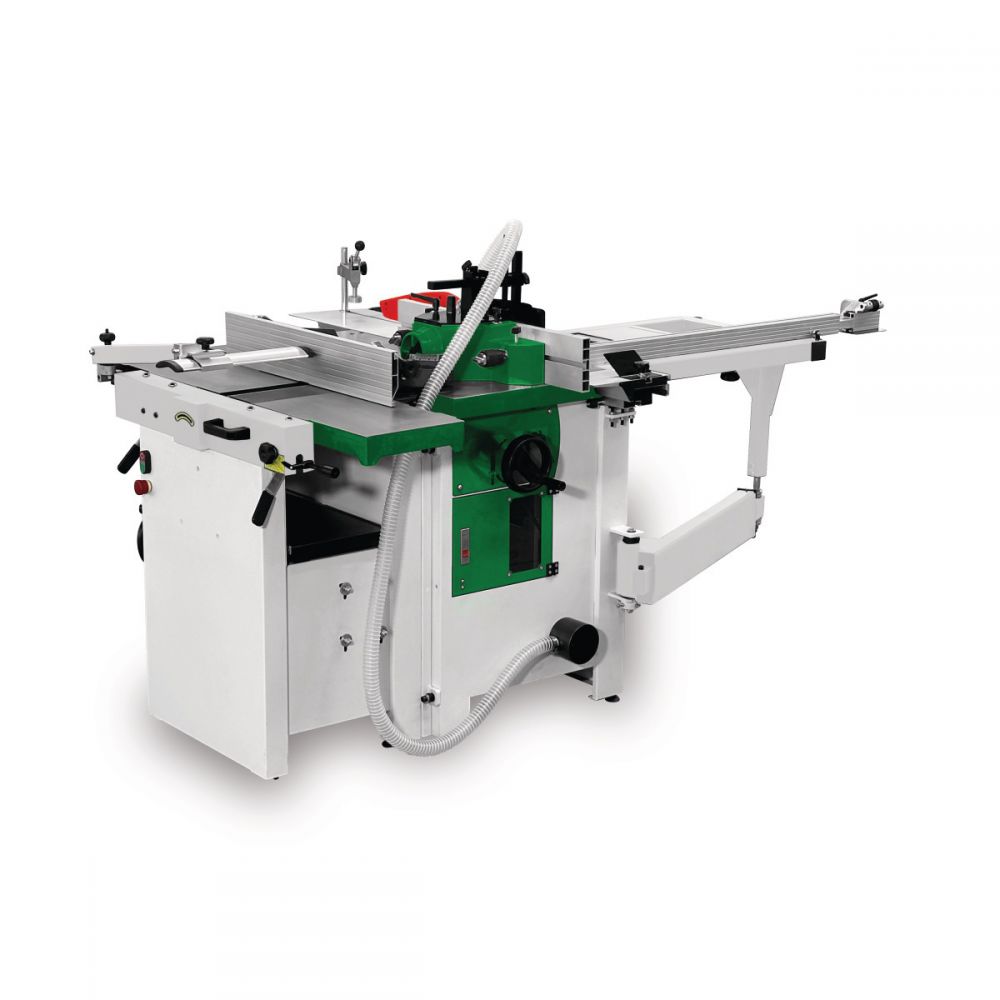

Sturmer Holzstar UMK 5-260 5 Operation Universal Combination Woodworker 230v

Sturmer Holzstar

UMK 5-260 5 Operation Universal Woodworker 230v

ref: 5946025

• Robust cast iron machine table enables precise work
• Function selection via rotary switch
• Practical traveling device available as an accessory

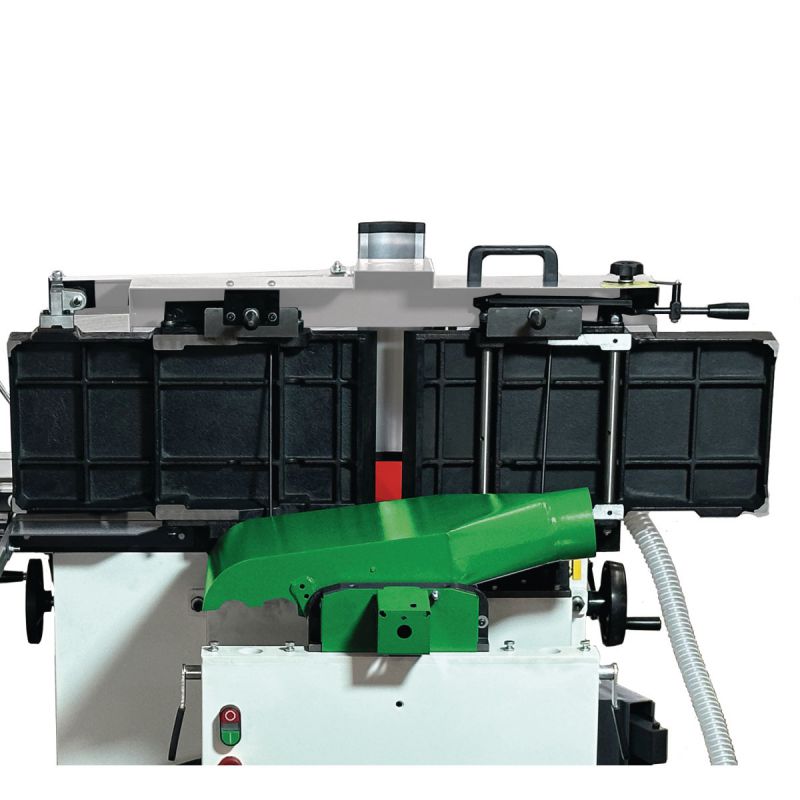

Surface planer/thickness planer

• Thicknessing planer table adjustment via handwheel
• Rubberized pull-out roller protects the surface of the workpiece during thickness planing
• Dressing and thicknessing table made of gray cast iron with ground surface

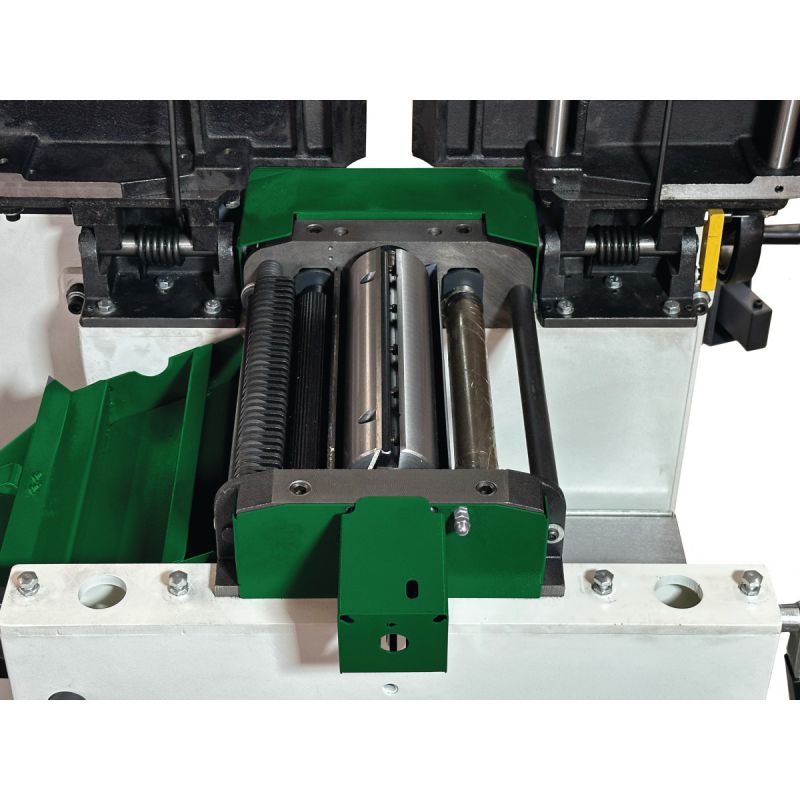

• Strip cutterblock with three HSS knives
• Aluminum planer fence can be tilted by 45

Circular sizing saw

• Circular saw blade can be tilted up to 45

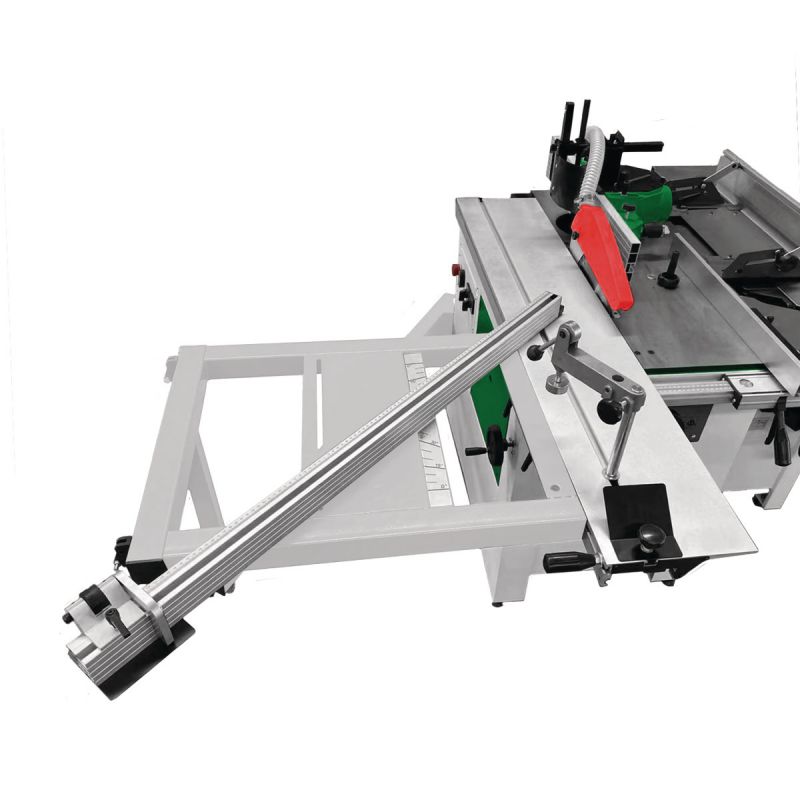

• Table extension arm with aluminum cross-cut fence for panels and large workpieces
• Including cast aluminum workpiece clamp and adjustable micro fence
• Aluminum sliding carriage with 1300 mm length
• Aluminum rip fence with fine adjustment

Table milling machine

• Rigid milling spindle
• Spindle height adjustable by 110 mm

Slot drilling device

• Available as accessories
• Wescott drill chuck 3 – 16 mm

Circular saw unit

• Trimming length: 1300 mm
• Saw blade angle: 90 – 45 °
• Max. cutting height at 90°: 78 mm
• Max. cutting height at 45°: 63 mm
• Diameter of (main) saw blade: 254 mm
• (Main) saw blade speed: 4000 min¯¹

Dimensions and weights

• Length approx.: 2200 mm
• Width/depth approx.: 1330 mm
• Height approx.: 1300 mm
• Weight approx.: 362 kg

Electrical Data

• Input power saw: 2.2 kW
• Input power planer: 2.2 kW
• Input power moulder: 1.5 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Extraction port

• Suction port diameter cutter: 100 mm
• Saw blade protection extraction port diameter: 30 mm
• Extraction port diameter thickness: 100 mm

Feed

• Speed: 7 m/min

Jointing

• Infeed table width: 260 mm
• Infeed table length: 1120 mm
• Max. cutting depth: 4 mm

Milling cutter diameter max.

• not lowerable: 160 mm

Milling spindle

• Mandrel diameter: 30 mm
• Usable length: 105 mm
• Height adjustment: 110 mm
• Speed(s): 1400/4000/6000/9000 min⁻¹

Noise emission

• Sound pressure level idle: 80 dB(A)
• Sound pressure level load: 92 dB(A)

Planing knife shaft

• Diameter: 70 mm
• Number of planing blades: 3 St
• Speed: 5500 min⁻¹

Sliding carriage and table

• Sliding table length: 1300 mm
• Sliding table width: 238 mm
• Table length: 920 mm
• Table width: 410 mm
• Table height: 850 mm

Thickness

• Table length: 545 mm
• Table width: 258 mm
• Working height min.: 5 mm
• Working height max.: 225 mm
• Max. cutting depth: 4 mm
