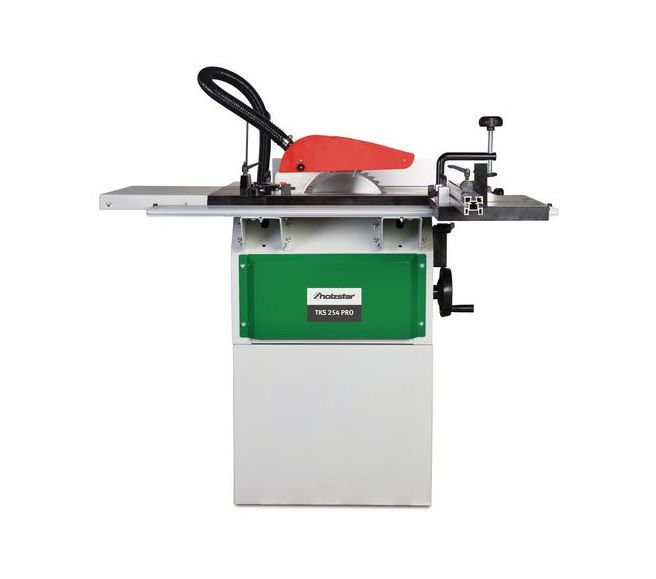

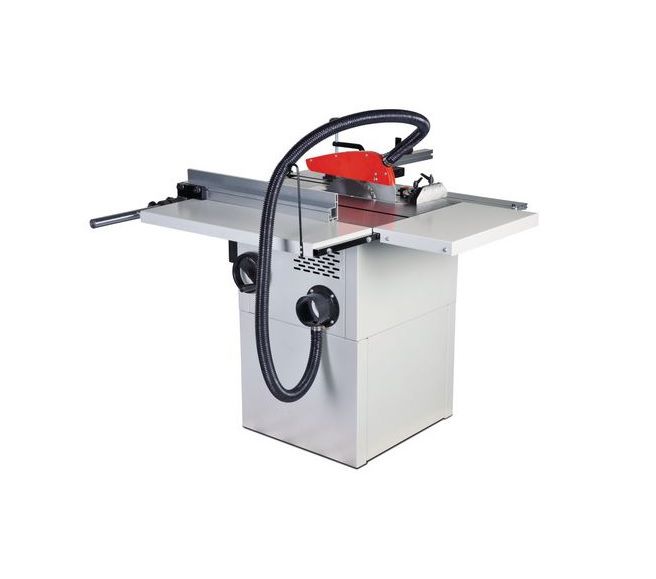

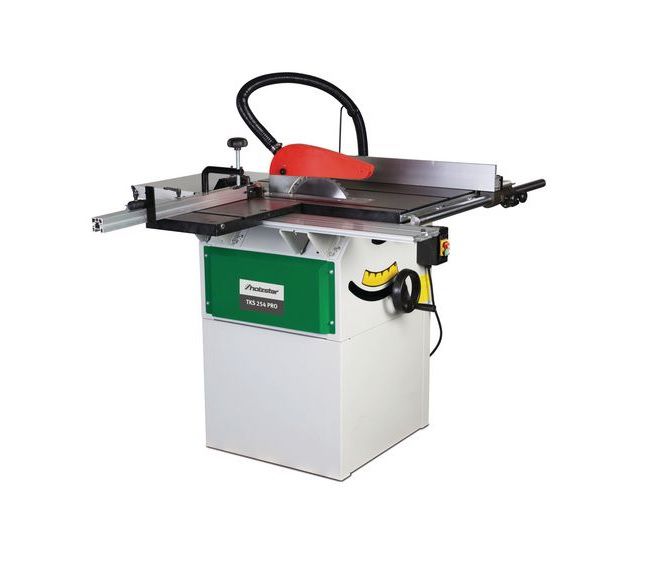

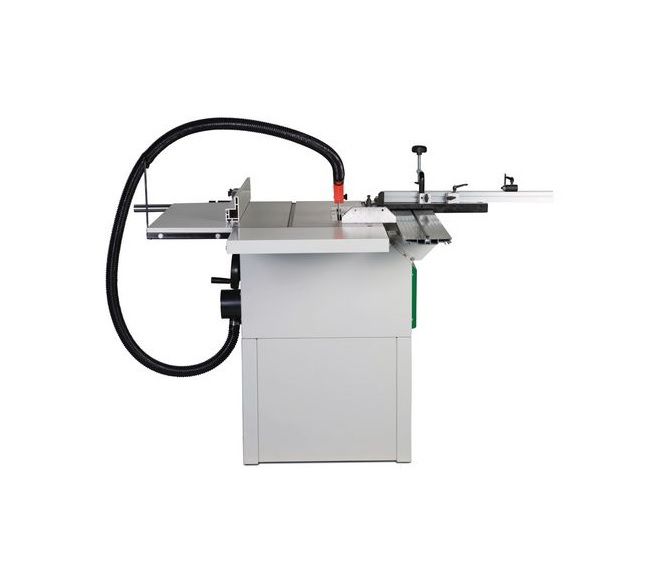

Sturmer Holzstar TKS 254 PRO Table Saw with Sliding Carriage 254mm 2100W 230v

X
Product Code: STU/5902027
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£1,679.99 Inc. VAT
£1,399.99 Exc. VAT
COLLECTION
DELIVERY
Qty
Stuermer

Sturmer Holzstar

TKS 254 PRO Table Saw with Sliding Carriage 254mm 2100W 230v

ref: 5902027



Key Features

  • TKS 254 PRO 254mm Dia sawbench package + 80mm max depth of cut + sliding table carriage + table width & length extentions + mitre att + 2.1 kW motor 230v
  • Large dimensioned cast iron table

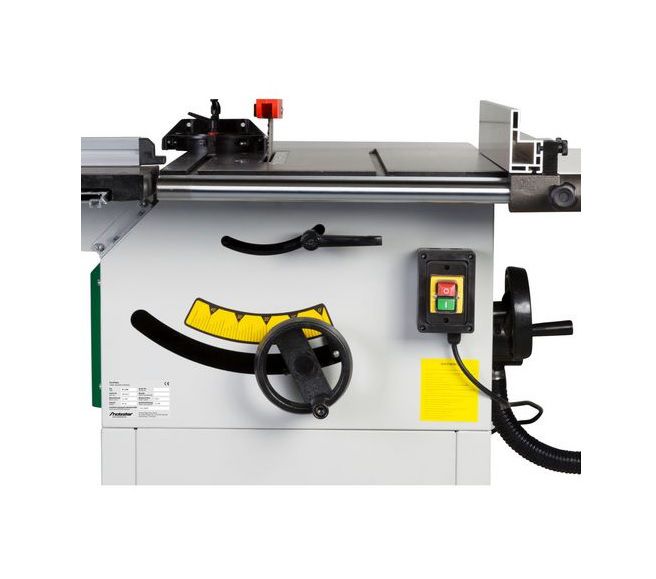

  • Saw blade tilt from 0° to 45°, precise, accurate to the degree and conveniently adjustable via handwheel and scale
  • Large central suction connection Ø 100 mm
  • The saw blade height adjustment is also carried out via a hand wheel from the operator's front panel
  • The stable suspension of the saw unit at the front and rear enables precise cuts to be made
  • Equipped with powerful motor and thermal overload protection
  • Incl. saw blade protection hood with integrated suction connection
  • With standard table extension



Items included

  • Substructure

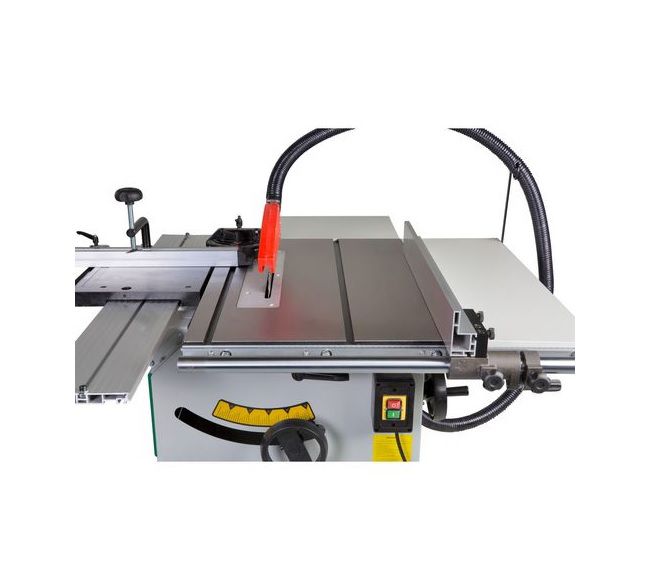

  • Sliding table
  • Table extension
  • Rip fence
  • Saw blade 254 x 30 x 3.0 mm Z40
  • Saw blade guard with suction hose

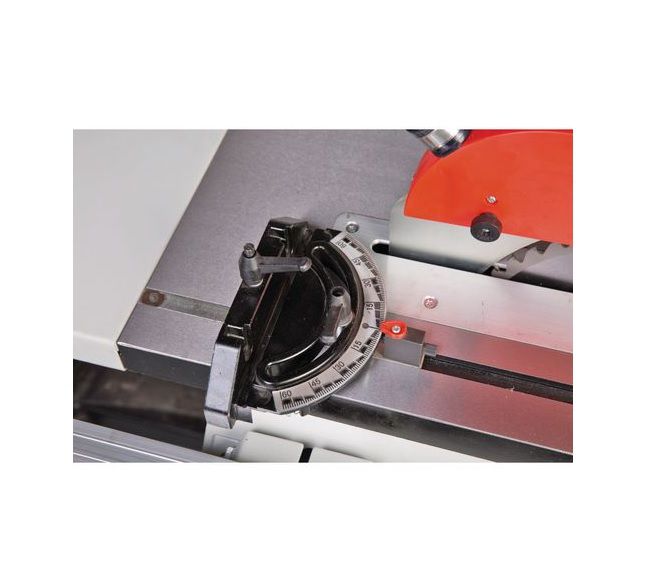

  • Angle stop



Technical details

Circular saw unit

  • Max. cutting width with rip fence: 610 mm
  • Max. cross cut width left from saw blade: 550 mm
  • Saw blade angle: 90 – -45 °
  • Max. cutting height 90°: 80 mm
  • Max. cutting height -45°: 54 mm
  • (Main) saw blade diameter: 254 mm
  • (Main) saw blade speed: 4000 min¯¹

Dimensions and weights

  • Length approx.: 1430 mm
  • Width/depth approx.: 1000 mm
  • Height approx.: 1030 mm
  • Weight approx.: 131 kg

Electrical Data

  • Drive motor output: 1,5 kW
  • Absorbed power drive motor: 2.1 kW
  • Total output: 2.1 kW
  • Total rated value: 9.3 A
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter bottom: 100 mm
  • Saw blade protection extraction port diameter: 30 mm

Noise emission

  • Sound pressure level: 84.2 dB(A)

Sliding carriage and table

  • Sliding carriage length: 400 mm
  • Sliding carriage width: 250 mm
  • Table length: 720 mm
  • Table width: 480 mm
  • Work height: 835 mm
  • VPE: 1
