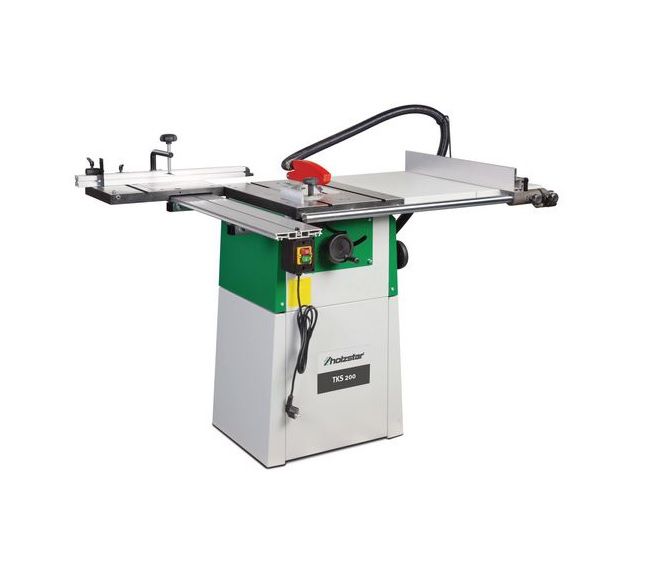

Sturmer Holzstar TKS 200 Table Saw with Sliding Carriage 200mm 1100W 230v

X
Product Code: STU/5902020
Brand: Stuermer
Stock Available
Delivery typically 3-4 days
£959.99 Inc. VAT
£799.99 Exc. VAT
COLLECTION
DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
Stuermer

Sturmer Holzstar

TKS 200 Table Saw with Sliding Carriage 200mm 1100W 230v

ref: 5902020



Key Features

  • TKS 200 200mm Dia sawbench package + 60mm max depth of cut + sliding table carriage + table width extention + mitre att included + 1100W motor 230v
  • Large cast iron table
  • Table widening as standard
  • Saw blade tilt from 90° to -45° to the left, precise, accurate to the degree and conveniently adjustable via handwheel and scale
  • Height adjustment of the saw blade via hand wheel
  • Stable suspension of the saw unit at the front and rear enables precise cuts
  • Powerful motor equipped with thermal overload protection
  • Large central suction connection Ø 100 mm
  • Saw blade protection hood with suction connection



Items included

  • substructure

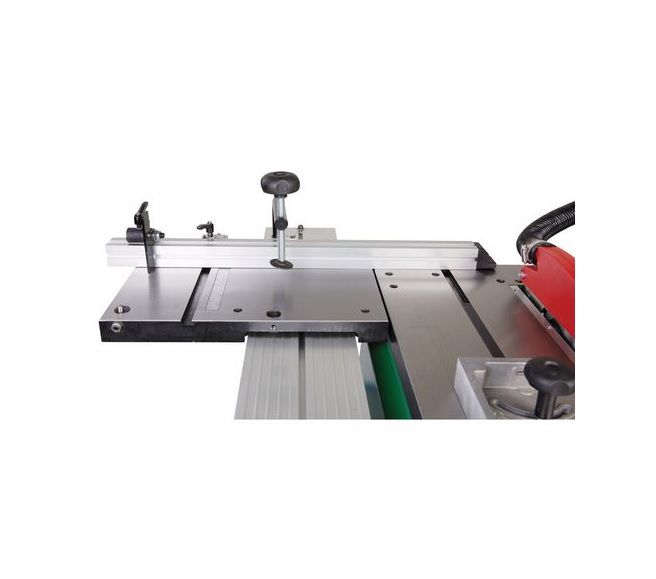

  • sliding table

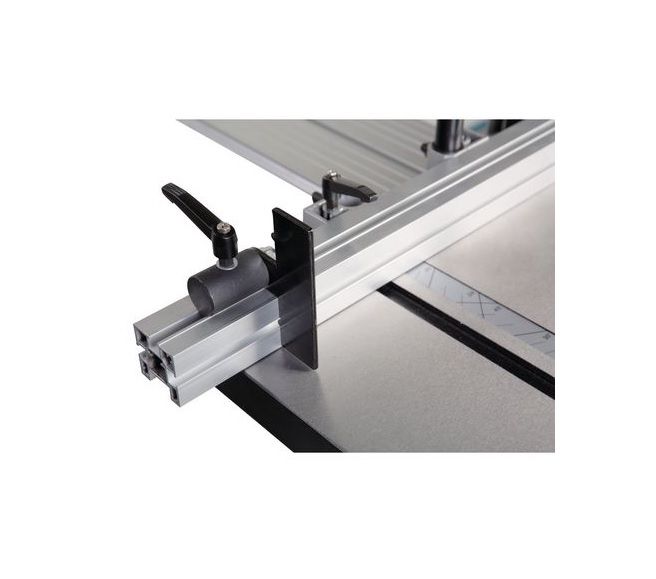

  • rip fence

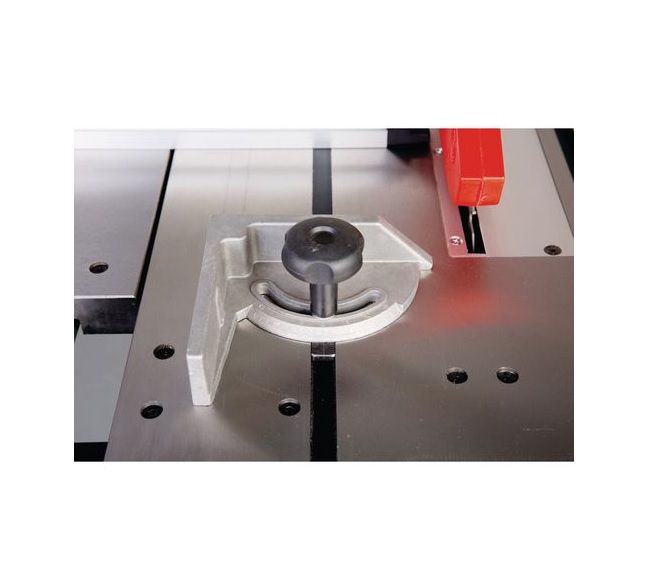

  • angle stop
  • saw blade guard with suction hose
  • table extension
  • saw blade 200 x 30 x 2.8 mm Z18



Technical details

Circular saw unit

  • Max. cutting width with rip fence: 705 mm
  • Max. cross cut width left from saw blade: 635 mm
  • Saw blade angle: 45 – 90 °
  • Max. cutting height 90°: 60 mm
  • Max. cutting height 45°: 48 mm
  • (Main) saw blade diameter: 200 mm
  • (Main) saw blade speed: 4750 min¯¹

Dimensions and weights

  • Length approx.: 1430 mm
  • Width/depth approx.: 1000 mm
  • Height approx.: 1030 mm
  • Weight approx.: 80 kg

Electrical Data

  • Drive motor output: 0,75 kW
  • Absorbed power drive motor: 1,1 kW
  • Total output: 1,1 kW
  • Total rated value: 4.6 A
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter bottom: 100 mm
  • Saw blade protection extraction port diameter: 30 mm

Noise emission

  • Sound pressure level: 78.5 dB(A)

Sliding carriage and table

  • Sliding carriage length: 400 mm
  • Sliding carriage width: 250 mm
  • Table length: 530 mm
  • Table width: 400 mm
  • Work height: 870 mm
  • VPE: 1
