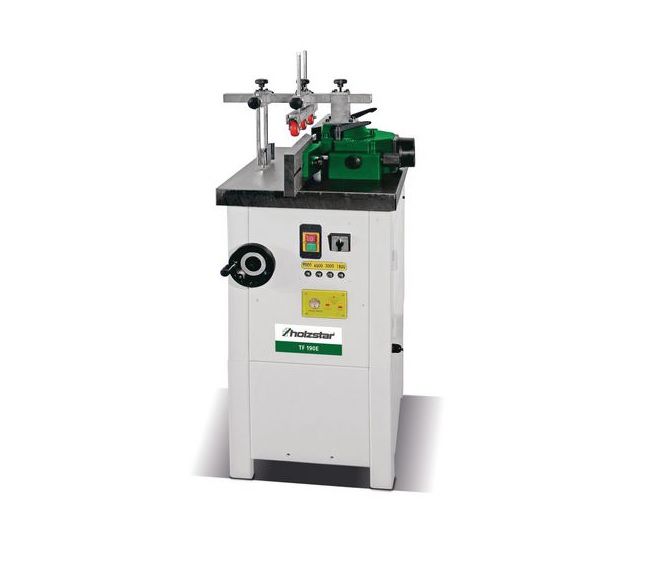

Sturmer Holzstar TF 190 E Spindle Moulder 4-Speed 2800W 230v
Product Code: STU/5901921
Brand: Stuermer
Low Stock - Contact Us For Availability
£1,799.99 Inc. VAT
£1,499.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar
TF 190 E Spindle Moulder 4-Speed 2800W 230v
ref: 5901921
Key Features
- TF 190 E 4 Speed spindle moulder (1800-9000 rpm) + LED display + selector switch for L or R spindle roatation + triple pressure roller safety device + 2800W motor 230v 16 Amp
- Milling stop with finely adjustable aluminum stops
- Quick and easy changing of the speed using multiple V-belts
- Speed setting displayed by LED lights
- Large work surface thanks to the torsion-free grey cast iron table
- Selector switch for clockwise/counterclockwise rotation of the milling spindle
- Milling unit made of grey cast iron
- Hold-down unit for precise workpiece guidance
Technical details
Dimensions and weights
- Length approx.: 730 mm
- Width/depth approx.: 500 mm
- Height approx.: 1200 mm
- Weight approx.: 140 kg
Electrical Data
- Drive motor output: 2,2 kW
- Absorbed power drive motor: 2,8 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter: 100 mm
Milling cutter diameter max.
- Max. tool diameter lowerable: 200 mm
Milling spindle
- Usable length: 100 mm
- Stroke: 100 mm
- Max. protrusion over the table: 100 mm
- Speed(s): 1800/3000/6000/9000 min¯¹
- Speed regulation: Strap
- Speed display: LED on the machine front
- Arbor diameter: 30 mm
Work table
- Length: 690 mm
- Width: 480 mm
- Table height: 900 mm
- VPE: 1
