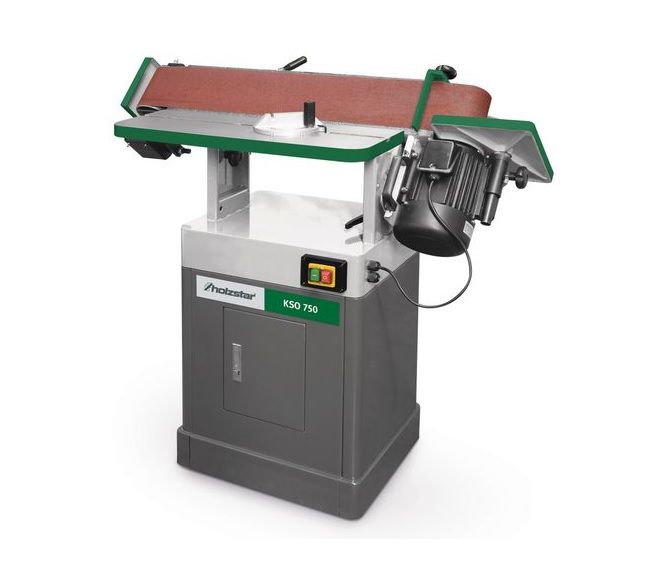

Sturmer Holzstar KSO 750 Osc' Tilting Belt and Spindle Sander 2200W 230v

X
Product Code: STU/5900751
Brand: Stuermer
Stock Expected
Delivery typically within 2-3 weeks
£1,199.99 Inc. VAT
£999.99 Exc. VAT
COLLECTION
DELIVERY
Qty
Stuermer

Sturmer Holzstar

KSO 750 Osc' Tilting Belt and Spindle Sander 2200W 230v

ref: 5900751



Key Features

  • KSO 750 150mm Osciallating tilting belt & spindle sander + cast iron table w T slots + mitre att + cabinet base + 2200W motor 230v 16 Amp
  • With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
  • With height-adjustable sanding table
  • Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
  • Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding
  • Table height adjustment by handwheel
  • Robust gray cast iron work table with T-slots, stable machine stand when working
  • With height-adjustable additional table for contour sanding
  • Quick and easy sanding belt change via quick clamping system
  • Spring-loaded clamping device for a uniform belt tension
  • Sanding sole with graphite coating as standard
  • Extraction nozzle Ø 100 mm
  • With lockable storage option in the standard substructure
  • Due to the steplessly adjustable sanding unit, the edge sanding machine is suitable for a wide variety of sanding operations, such as sanding. B. vertical and horizontal sanding used
  • Includes mitre gauge, workpiece stop 499 x 178 x 69mm, sanding belt K60.



Technical details

Dimensions and weights

  • Length approx.: 1300 mm
  • Width/depth approx.: 750 mm
  • Height approx.: 1200 mm
  • Weight approx.: 120 kg

Electrical Data

  • Supply voltage: 230 V
  • Mains frequency: 50 Hz

Extraction port

  • Extraction port diameter: 100 mm

Sanding machine

  • Sanding belt length: 2270 mm
  • Sanding belt width: 150 mm
  • Circumferential belt speed(s): 16.3 m/s
  • Sanding surface length: 820 mm
  • Sanding surface width: 170 mm

Work top(s)

  • Work table height adjustment: 80 mm
  • Longitudinal table length: 750 mm
  • Longitudinal table width: 250 mm
  • Longitudinal table height adjustment; 80 mm
  • Min. cross table height: 980 mm
  • VPE: 1
