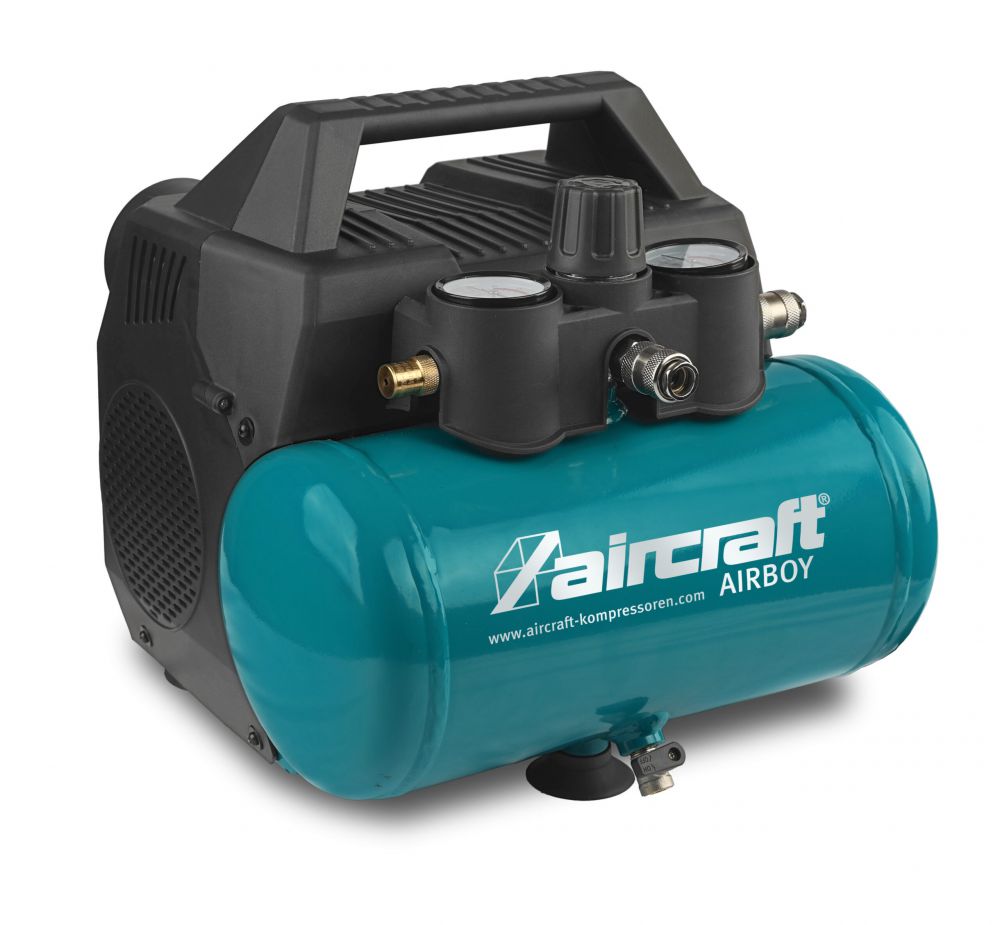

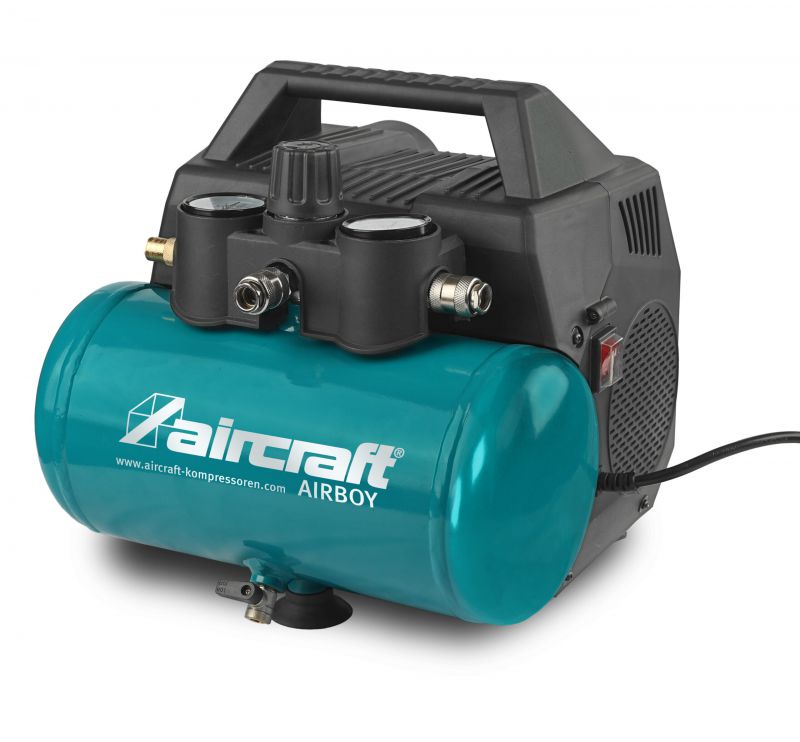

Sturmer Aircraft AIRBOY 131 OF E Piston Compressor 8 Bar 600W 230v

Sturmer Aircraft

AIRBOY 131 OF E Piston Compressor 8 Bar 600W 230v

ref: 2001225

• AIRBOY 131 OF E Portable piston oil free compressor + twin cylinders + 8 bar + stepless adjustment for correct pressure + twin pressure guages + 600W motor 230v
• Universally applicable
• Oil-free piston compressor, therefore no oil change necessary and no oil in the condensate
• Small, compact design
• Fully automatic on-off operation
• Electric motor equipped with motor protection switch
• Compressed air withdrawal via two one-hand quick couplings
• Pressure reducer for stepless adjustment of the desired working pressure

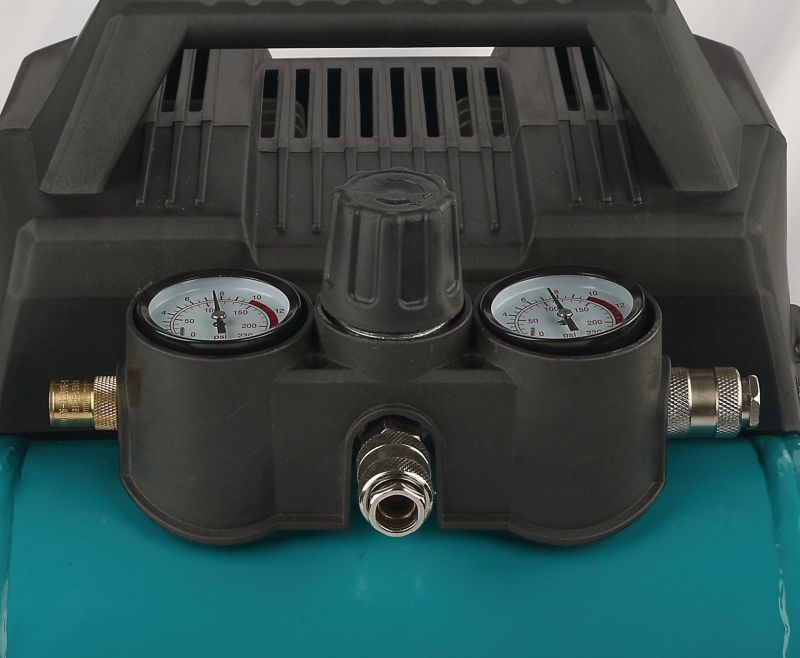

• One pressure gauge each for display of container and working pressure
• Three suction cups for safe standing

• Pressure regulation: Pressure regulator
• Automatic pressure switch: ✔
• Drive transmission: Direct-coupled
• Compressed air outlet: Two one-hand quick couplings
• Condensate drain: Ball valve
• Pressure vessel: Powder coated
• Compressor base: Three suction cups
• Connection cable: 1.8 m
• Connector: CEE 7/4

Compressed air tank

• Maximum pressure: 8 bar
• Pressure vessel capacity: 6 l
• Tank vertical / horizontal: Horizontal

Compressor

• Compressor system: WDS
• Oil-free / oil-lubricated: Oil free
• Suction capacity approx.: 107 l/min
• Filling capacity approx.: 42 l/min
• Explanation filling capacity: at 6 bar working pressure
• Number of cylinders: 2
• Number of compressor stages: 1
• Piston stroke: 5.8 mm
• Diameter of piston: 63.7 mm

Dimensions and weights

• Length approx.: 345 mm
• Width/depth approx.: 340 mm
• Height approx.: 315 mm
• Weight approx.: 15.9 kg

Electrical Data

• Delivery power: 0.6 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz
