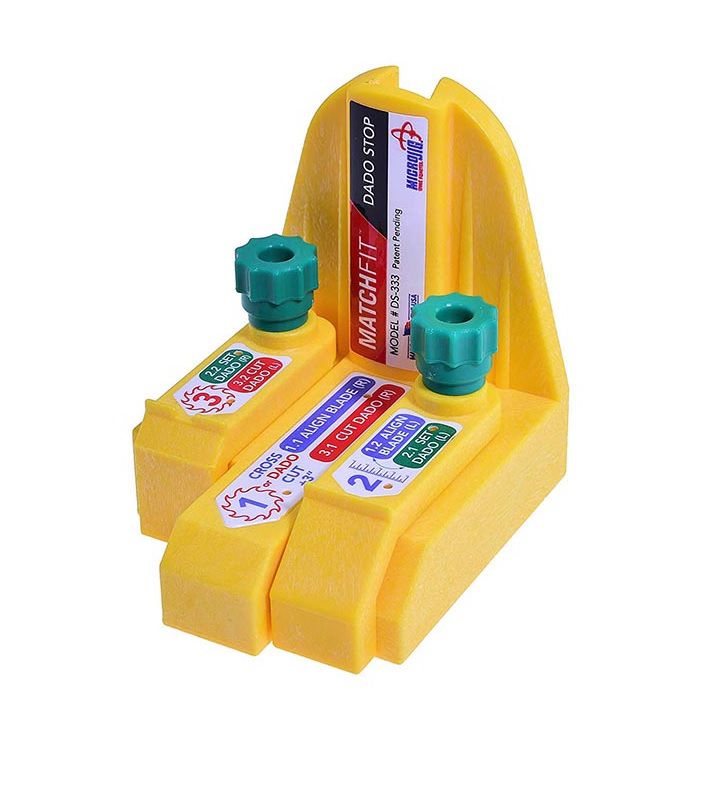

Microjig MATCHFIT Dado Stop

Microjig MATCHFIT Dado Stop

ref: DS-333

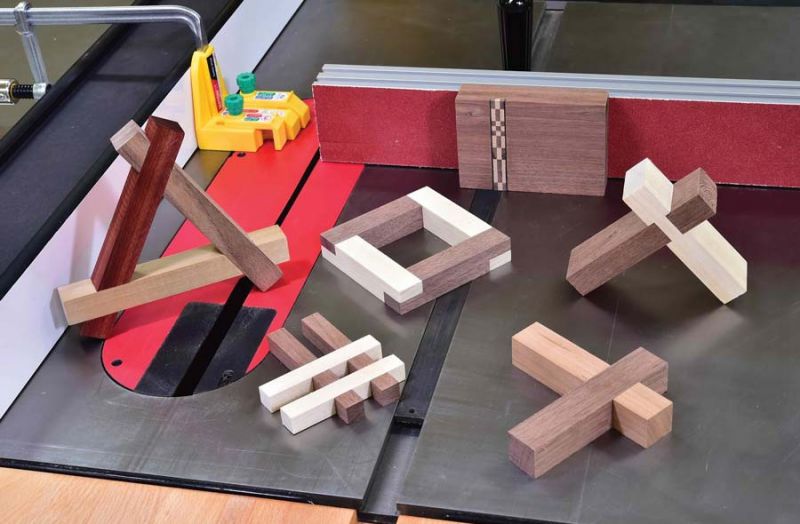

Make flawless dados for lap joints and inlays without a dado blade.

• The Dado Stop references the blade’s unique kerf and the actual inlay material to measure the cut. Setting up your dado cut takes just a few seconds, and eliminates the need for measuring, test cuts, and wrestling with multiple blades and shims. Best of all—there's no dado blade required.
• Static Leg 1 measures exactly 3”, can be used to calibrate fence scale.
• Also functions as a crosscut stop for safe, repeatable crosscuts.
• Maximum dado width: 1-5/8” with a 13/16” stacked dado set.
• Make perfect dados in a fraction of the time: 1 - Set the kerf width for your blade using Leg 2. 2 - Set Leg 3 off of Leg 2 to set the width of the dado.3 - Cut the first shoulder off Leg 1 to account for the blade width. 4 - Cut the second shoulder off of Leg 3. 5 - Use the blade to clear out any remaining material from the centre.
