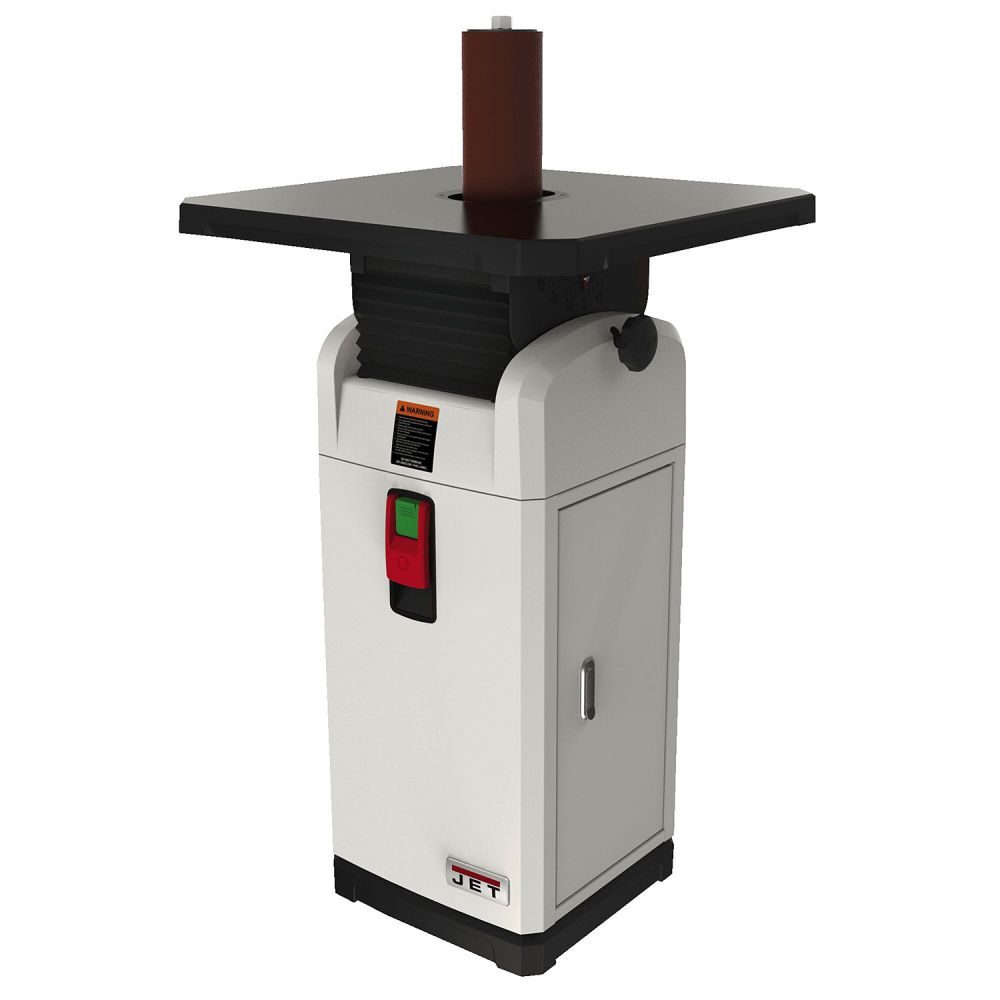

Jet JOSS-S Oscillating Spindle Sander 230V

JET OSCILLATING SPINDLE SANDER 230V
Ref: JOSS-S

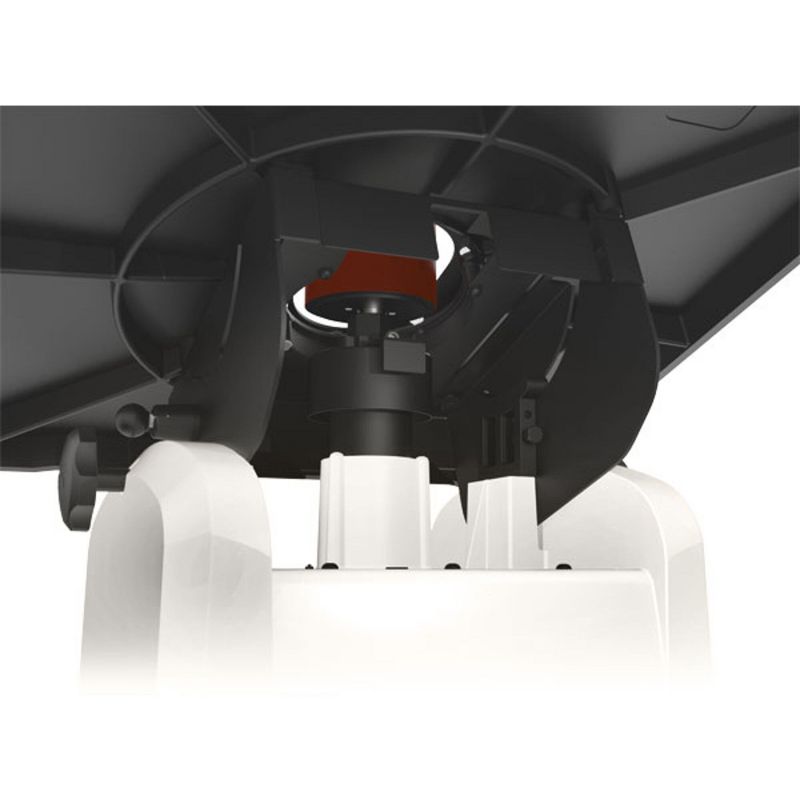

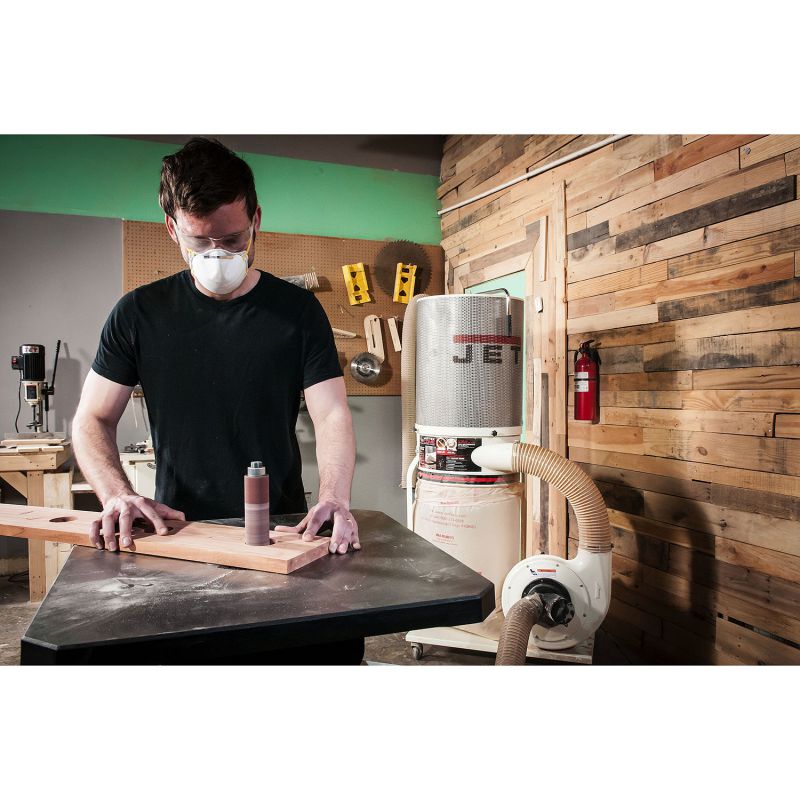

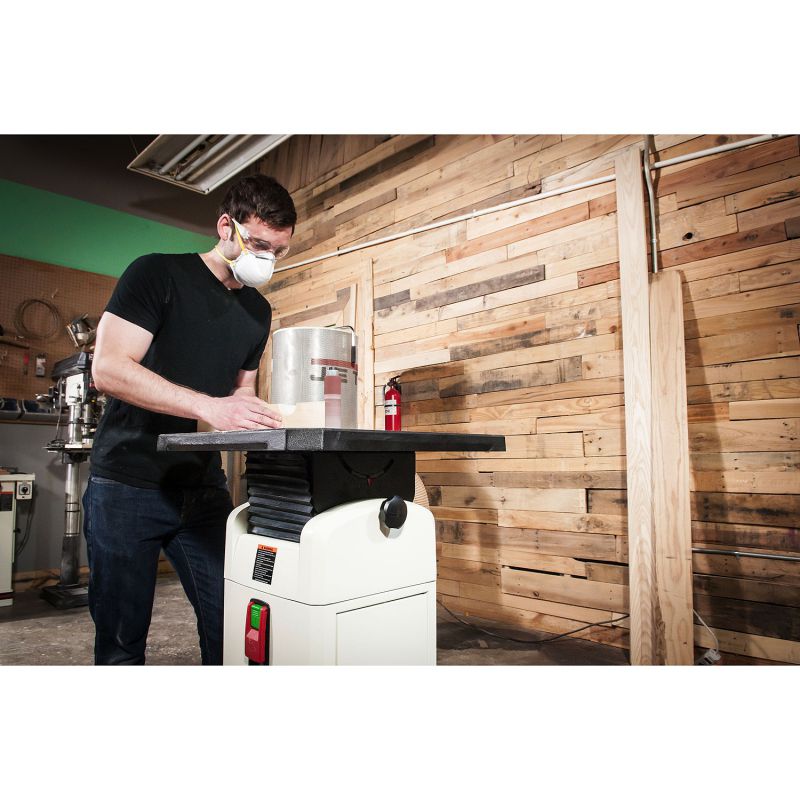

• Wash plates make a chamber under the table to create a strong suction effect and dust-free working area

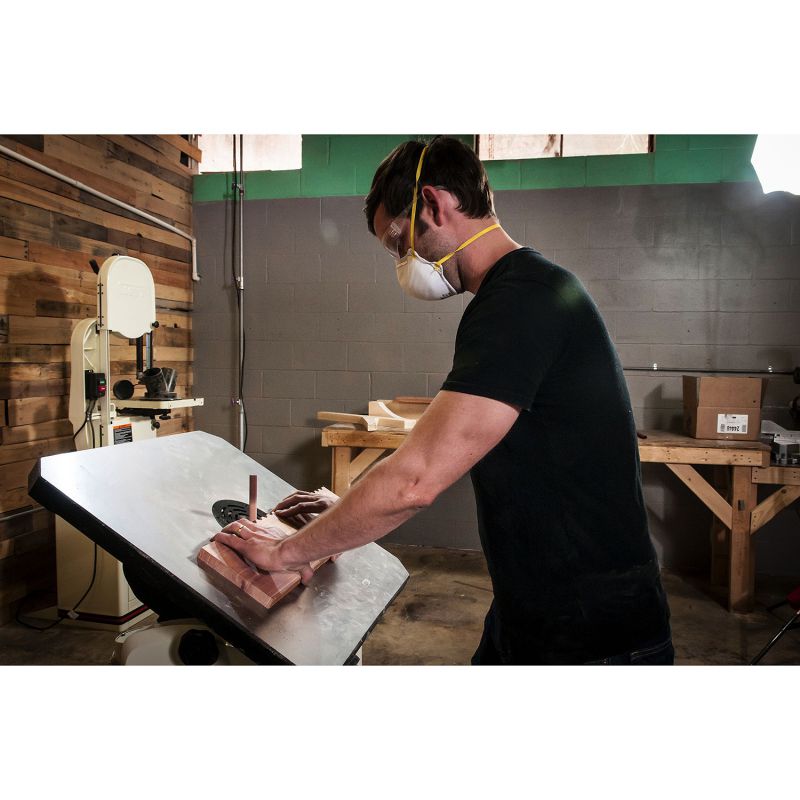

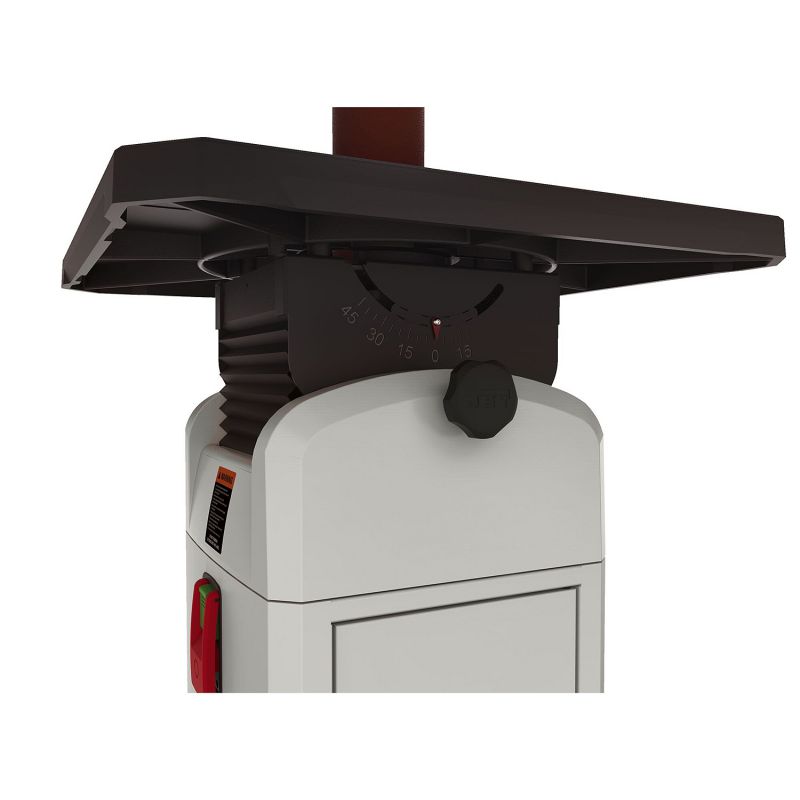

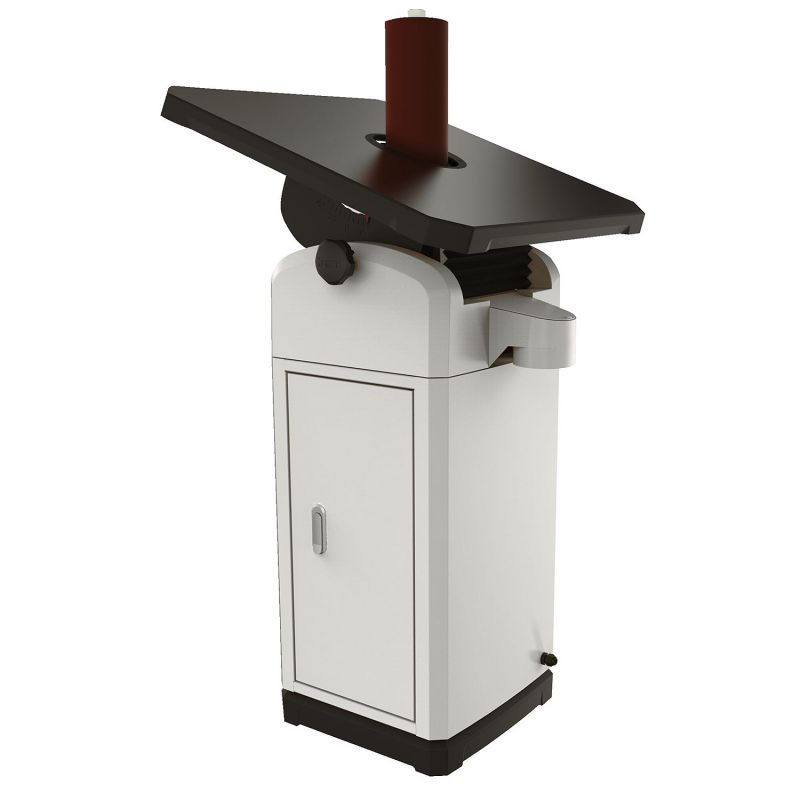

• The large cast iron table can be angled forwards by 45° and backwards by 15° and features a 90° locking position
• Spindle lock for quickly changing the spindle and abrasives
• 38mm oscillation stroke, main spindle guided in precision ball bearings
• Powerful worm gear operates in an oil bath – to ensure a long lifespan
• Powerful 1.2kW induction motor
• Sander spindles, abrasive sleeves and table inserts can be kept clean in the machine base cabinet

• Motor (V/kW): 230/1.2
• Spindle speeds (rpm): 1'450
• Spindle diameter (ø-mm): 6/9/12/16/19/25/38/50/75/100
• Max. sanding height (mm) 80–160
• Table size (mm): 620×620
• Table tilt: 45° forward / 15° back
• Sanding spindle height (mm): 150/230
• Oscillations/Minute: 60
• Osciallation stroke (mm): 38
• Dust port (ø-mm): 100
• Dimensions (mm): 700×760×1'130
• Weight (kg): 98

• Motor KW: 230/1.2
• Spindle Speeds: 1'450 RPM
• Table Size: 620×620
• Spindle Diameter: 6/9/12/16/19/25/38/50/75/100
• Dimensions L x W x H: 700×760×1'130
