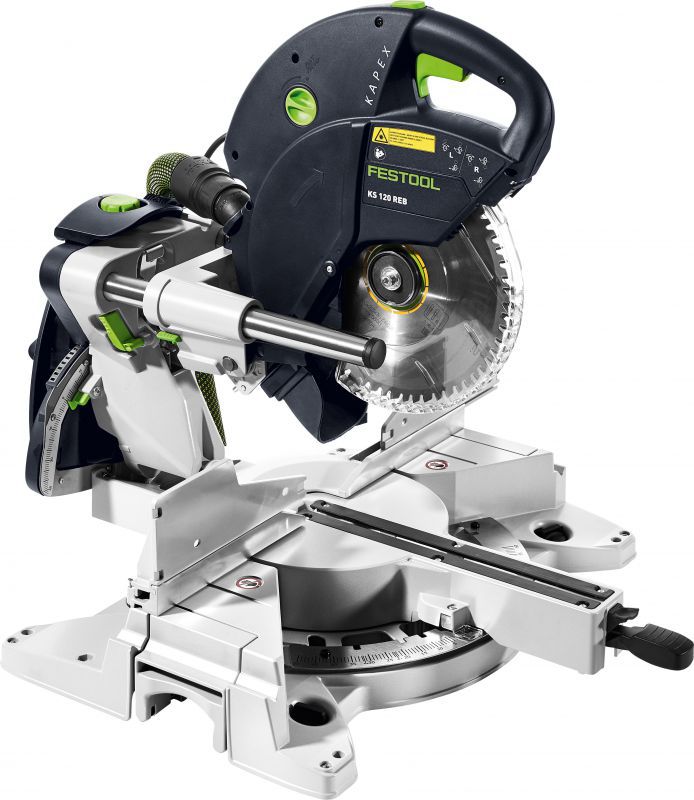

Festool 575305 Festool KAPEX Mitre saw KS 120 REB GB 110V

Festool KAPEX KS 120 REB GB 110V - KAPEX Sliding Compound Mitre Saw - (Ref: 575305)

Quality down to the finest detail.

• FastFix saw blade changing for adaptation to the working material
• Twin-column guide for accurate cuts
• Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine

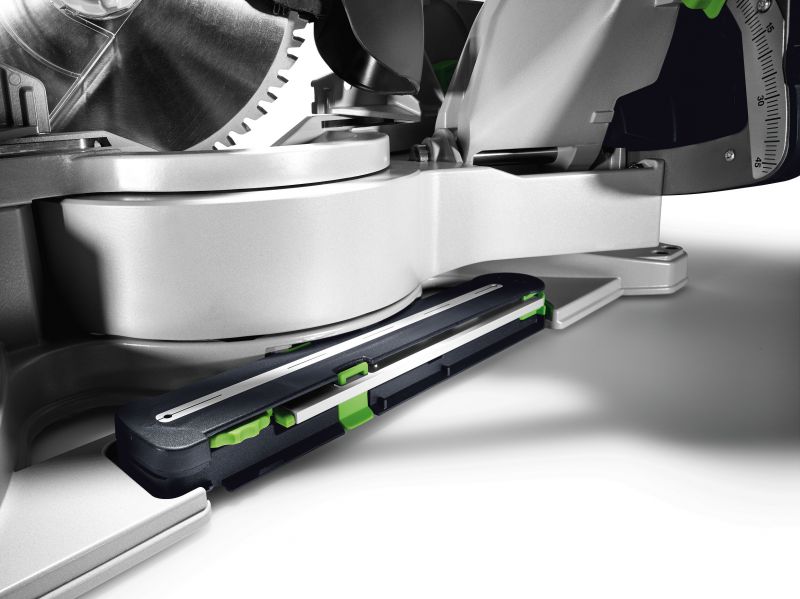

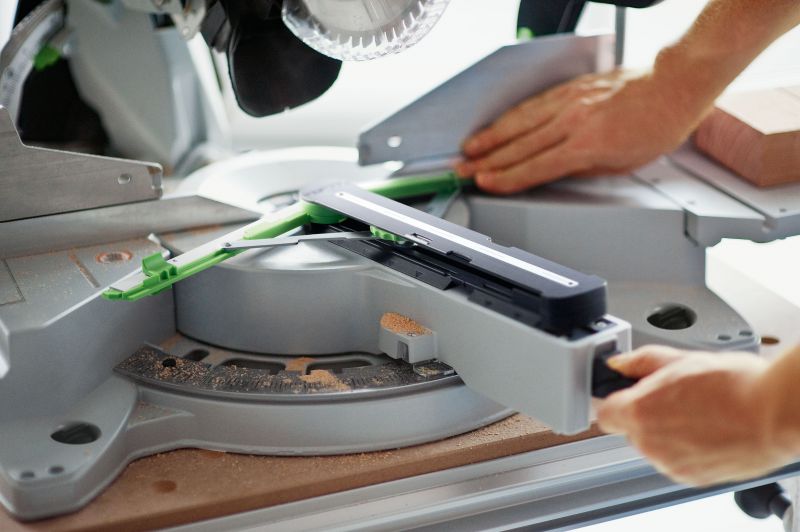

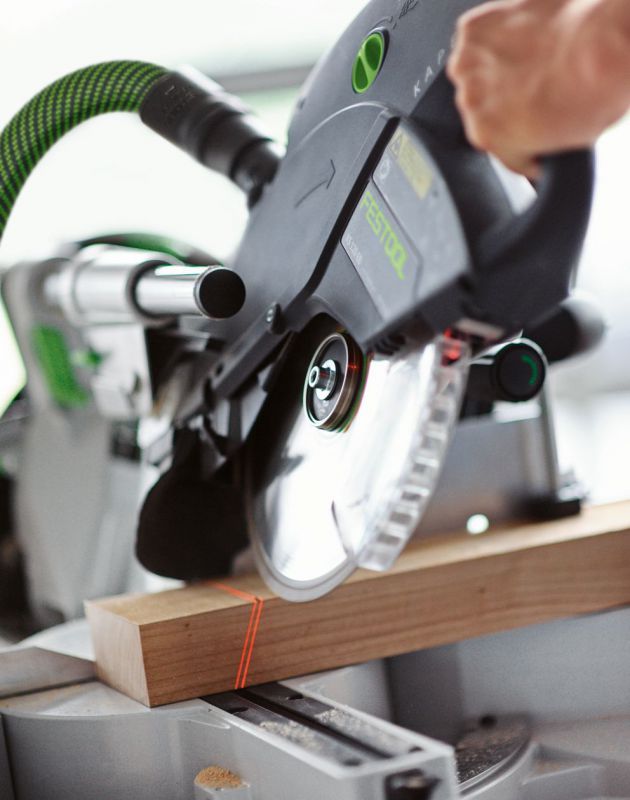

• Precision angle transfer via bevel and dual-line laser
• Compact, lightweight design for convenient transportation
• Safety brake

• Trimming skirting boards and cornices up to 120 mm in height – no calculations

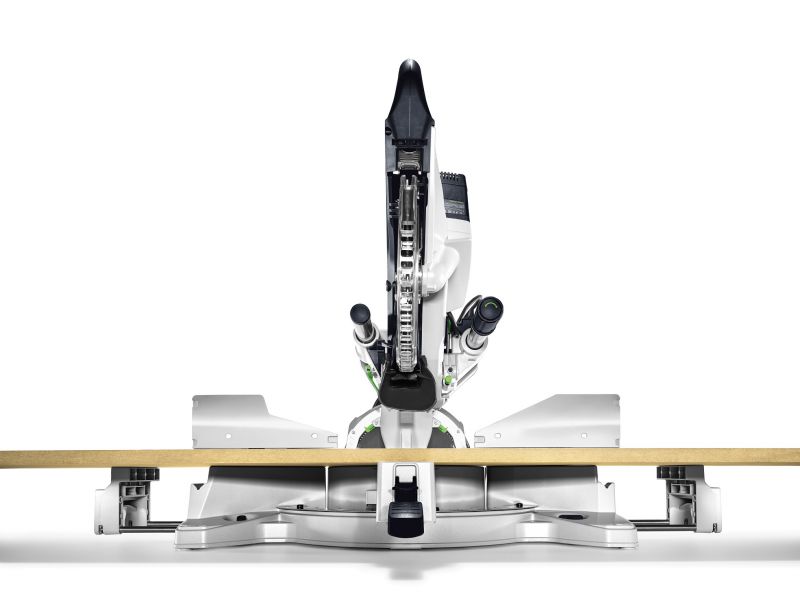

• Cutting boards and panels up to 305 x 88 mm
• Trimming crown mouldings up to 168 mm in their original wall position
• Trimming square timber and beams up to 88 mm thick

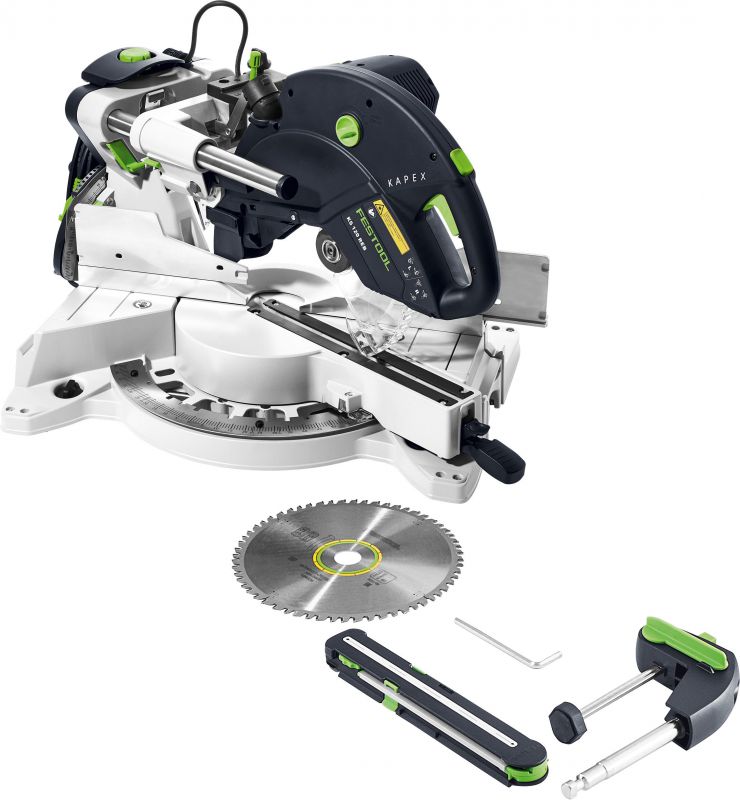

• HW universal saw blade W60
• bevel
• workpiece clamp
• operation tool
• in carton

• Power consumption 1600 W
• Idle engine speed 1400 - 3400 min?¹
• Saw blade diameter 260 mm
• Cutting depth 90°/90° 305 x 88 mm
• Cutting depth at 45°/90° 215 x 88 mm
• Special cutting depth 90°/90° 60 x 120 mm
• Crown moulding diagonal cut 45°/90° 168 mm
• Inclination angle 47/47 °
• Mitre angle 50/60 °
• Dimensions (W x D x H) 713 x 500 x 470 mm
• Weight 23.10 kg
• Dust extraction connection dia. 27/36 mm
• Special cut. depth 45°/90° (left) 40 x 120 mm
• Special cutting depth 45°/90° (right) 20 x 120 mm
• Cutting depth 50°/90° (left) 196 x 88 mm
• Cutting depth 60°/90° (right) 152 x 88 mm
• Cutting depth 45°/45° (left) 215 x 55 mm
• Cutting depth 45°/45° (right) 215 x 35 mm
• Crown moulding diagonal cut at 90°/90° 168 mm
• Work height 900 mm
• Sawing: Uncertainty (noise) K 3 dB
• Sawing: Uncertainty (vibration) K 1.5 m/s²
• Sawing: A-weighted sound pressure level, LpA 88 dB(A)
• Sawing: A-weighted sound power level, LWA 101 dB(A)
• Sawing: Total vibration average, Ah 2.5 m/s²

Festool KAPEX KS88 and KS120 Owners Manual
