Charnwood W796CF - W796 Dust Extractor With 1 Micron Cartridge Filter

Charnwood W796CF - W796 Dust Extractor With 1 Micron Cartridge Filter

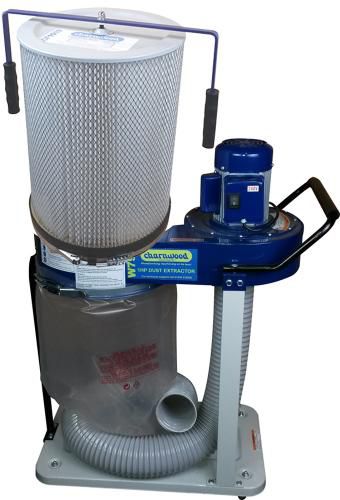

The W796 is a portable dust and chip extractor aimed at the professional workshop needing to extract from one machine at a time.

• Professional Quality Motor
• Can Run up to 8 Hours a Day
• Ample 1000m3/hour Flowrate
• Quiet Induction Motor
• Transparent Collection Bag
• 2m Length of Hose Included
• 1 micron cartridge filter

Highly recommended for MDF users this unit is suitable for fine dust or chip producing machinery such as double mitre saws, sanders, routers, table saws, bandsaws and spindle moulders.

Using the now upgraded 2 micron fine mesh cotton filtration bag and a see through heavy gauge plastic collection bag both fastened by quick release metal straps, the workshop will be not only a cleaner environment but a healthier one as well.

Supplied with 'indestructible' steel fan, 2m length of 100mm diameter flexible hose, 2 hose clips, 100mm inlet, transparent collection bag, 4 steering castors, cable and plug. Runs on a standard 13 amp fused supply.

• Motor (Induction): 750w (1hp)
• Voltage: 240v
• Flowrate (cubic metres per hour): 1000 m3/hour
• Inlet: 100 mm
• Bag Capacity: 70 Litres
• Collector Drum Diameter: 370mm
• Dimensions (WxDxH): 780mm x 390mm x 1370mm
• Weight: 36 Kg
• Rating: Trade
• Warranty: 5 Years

We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.

Charnwood W796 Operating Instructions

Charnwood Machinery Five Year Guarantee

Buyers Guide to Dust Extraction
