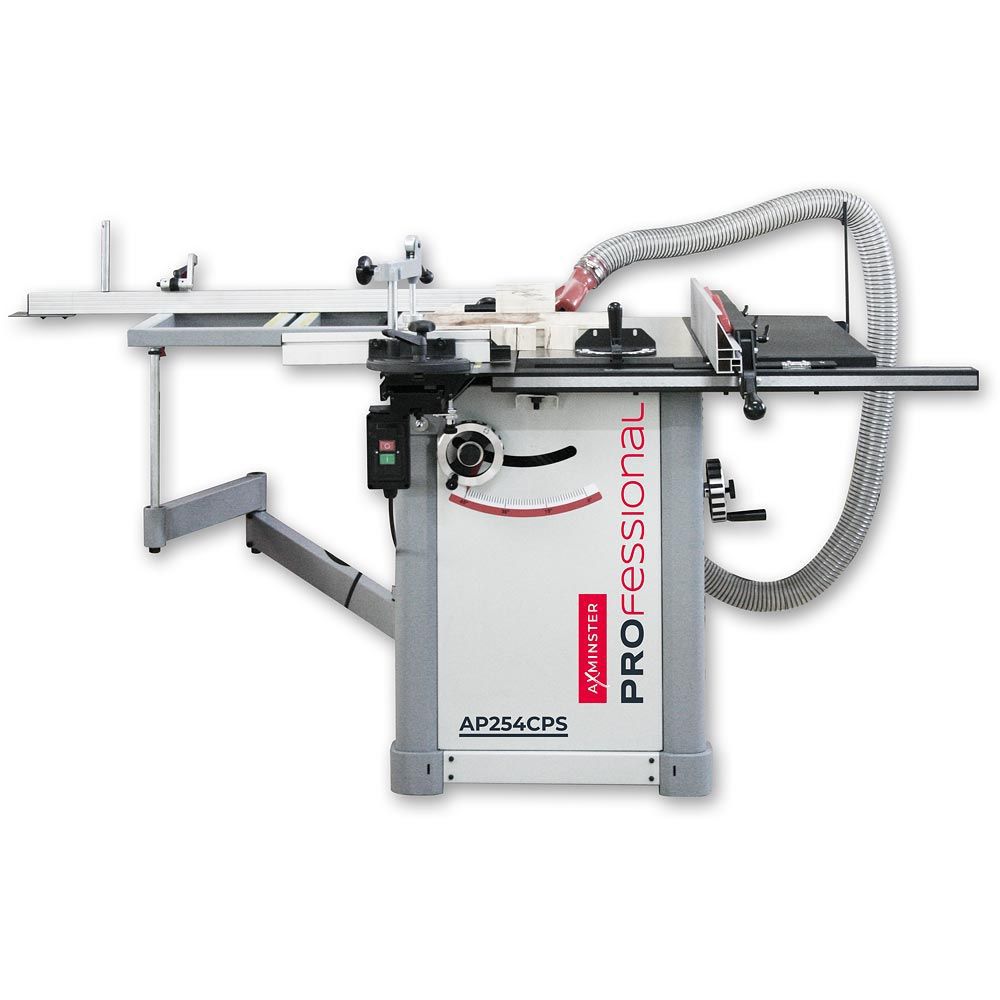

Axminster Professional AP254CPS 254mm Compact Panel Saw 240v

Axminster Professional AP254CPS 254mm Compact Panel Saw 240v

• The Axminster Professional AP254CPS Compact Panel Saw is a medium sized duty panel saw. Having been developed, tested and refined using decades of industry experience, it meets the demands of a busy workshop, delivering precision, reliability and accuracy every time. The cast iron saw and motor chassis are mounted to a rigid steel frame, ensuring long term accuracy by relieving stress from the table and helps to maintain its flatness, even under heavy use.
• It features a 1,300 x 270mm sliding table, with 1,250mm stroke perfect for sheet work and repeatable accuracy. The sliding table gives 1,250mm travel past the blade. The main cast iron table (800 x 345mm) and side extension (800 x 330mm) provide a generous working surface, all set at an ergonomic 865mm height. The 254mm blade spins at 4,000rpm and is capable of cutting up to 80mm at 90° and 56mm at 45°, with smooth tilt adjustment from 0° to 45° through various materials. It is powered by a high torque 2.5kW motor, to ensure for smooth running.
• The 610mm ripping capacity and sliding table stroke of 1,250mm make it ideal for handling sheet materials with ease and accuracy.
• The fence system features a heavy-duty, triangular aluminium extruded hi–low rail, secured to the main body with three quick-action clamps. A single lever locks the fence for fast, repeatable setup.
• A standard 19 × 10 mm mitre slot is built into the main table, and the mitre fence includes an angle scale for smaller workpieces. Both blade height and tilt controls are conveniently positioned and lock securely. The support table can be placed anywhere along the sliding table.
• Dust extraction is handled via 100mm and 63mm outlets, requiring 1,000 m³/hr airflow, helping maintain a clean and safe working environment.
• The AP254CPS Compact Panel Saw runs on 230V and comes fitted with a 16A plug, making it accessible for single-phase workshops.

• Blade Diameter: 254 mm
• Blade RPM: 4,000 rpm
• Blade Tilt: 0° to 45°
• Bore Size: 30 mm
• Dust Extraction Outlet: 100 mm & 63 mm
• Max Depth of Cut @ 45º: 56 mm
• Max Depth of Cut @ 90º: 80 mm
• Max Ripping Width: 610 mm
• Max Width of Cut with Fence: 610 mm
• Min Extraction Airflow Required: 1,000 m³/hr
• Model: AP254CPS
• Nett Weight: 192 kg
• Number of Motors: 1
• Overall L x W x H: 3250 x 3700 x 1200 mm
• Plug Fitted: UK 16A Plug
• Power: 2.5 kW
• Rating: Frequent Use
• Sliding Table Dimensions: 1300 x 270 mm
• Sliding Table Stroke: 1250 mm
• Sound Power Level LwA [Uncertainty K]: 97.4 dB(A)
• Sound Pressure Level LpA [Uncertainty K]: 80.5 dB(A)
• T Slot Size: 19 mm
• Table Height: 865 mm
• Table Size: 800 x 345 mm (main table) 800 x 330 mm (side extension)
• Voltage: 230 V
