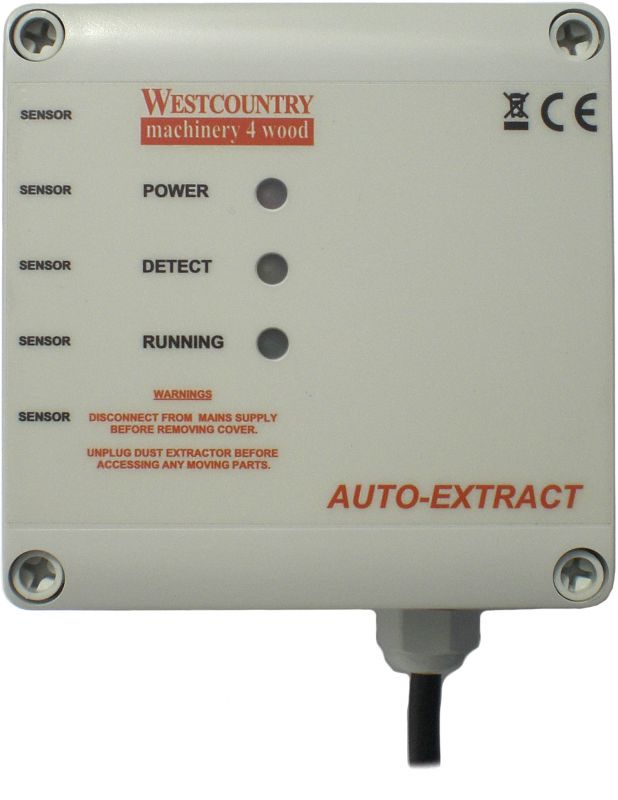

Automatic Dust Extraction Contactor Controller Unit c/w 5 Sensor Input

X
Product Code: AE/AE075
Brand: Auto Extract
Stock Due Soon
Please Call For Update
£178.92 Inc. VAT
£149.10 Exc. VAT
Auto Extract

Auto Extract Contactor Controller Unit (with 5 Senor Input) - (Ref: AE075)



Strengths and benefits

  • Auto-Extract senses the magnetic field generated when a machine tool is switched on. When a machine is started (saw bench, planner etc.) Auto-Extract automatically switches on the dust extractor.
  • The Auto-Extract contactor control unit provides a control signal to operate the contactor powering a dust extractor.
  • Patented sensors plugged into the Auto-Extract controller attach to the motors of each machine. No electrical connections are made to the machines; each sensor simply attaches to the machine's motor and will function with both single and three phase machines. Five machines can be monitored by AutoExtract, or more by adding Auto-Expand units.



Key Features

  • Power Light: Red LED illuminates when there is power connected to Auto-Extract.
  • Detect Light: Yellow LED illuminates when the sensor(s) detect a sufficiently strong alternating magnetic field from a machine's motor.
  • Running Light: Green LED illuminates when the dust extractor output is on. Auto-extract will continue to operate the extractor for 15 seconds after the machine(s) are turned off to allow ducting to clear.
  • Over-Run: Auto-extract will continue to operate the extractor for 15 seconds after the machine(s) are turned off to allow ducting to clear.
  • Power on Reset: If the mains power is interrupted the control output is automatically disabled. After approximately 20 seconds the extractor control will then operate as normal when triggered by a machine sensor.

















  • Improved Health & Safety, better workshop environment.
  • Saves electricity. Reduces heating bills (when venting air externally).
  • Controls extraction for all fixed machines.
  • Automatic over run period to clear ducting



Specification

  • Mains Connections: The Auto-Extract 13A control unit is supplied with a 4-core cable with connections as follows: Earth _Green/Yellow); Neutral (Blue); Live, single phase 230VAC between live & Neutral (Brown); Output, relay connects brown to black when extractor needs to operate (Black)
  • Sockets:  5 x Sensor inputs 2.5mm jack. 1 x Expansion input/output 3.5mm jack.
  • Dimensions: 125(h) x 125(w) x 75(d) mm (excluding cable and gland).



Auto Extract (Contactor Controller) Wiring Guide for UB 2100 & 3100 - Stage 1, 2, 3

Auto Extract  (Contact Controller) Wiring Instructions
