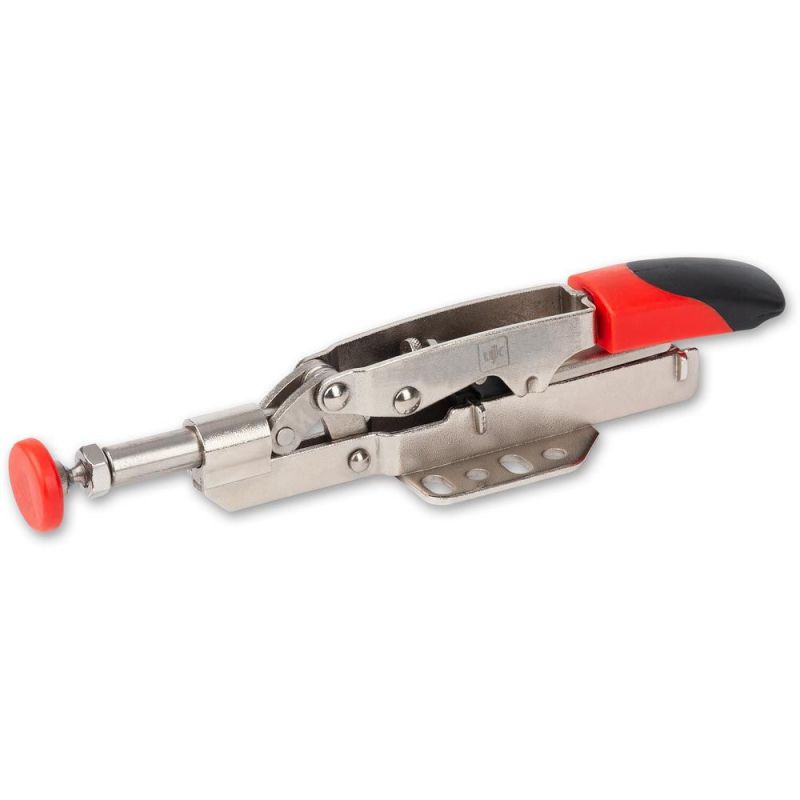

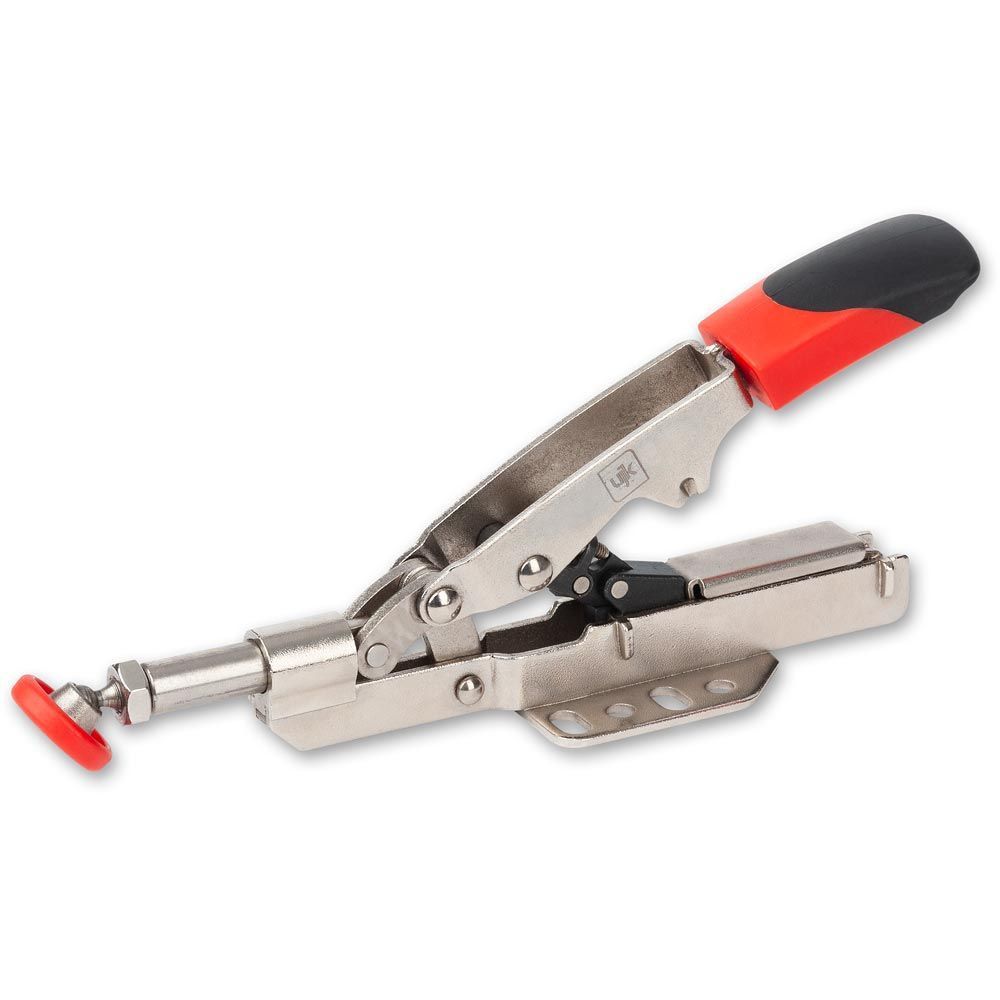

UJK Self Adjusting Toggle Clamp Push/Pull 25 - 109992

UJK Self Adjusting Toggle Clamp Push/Pull 25

ref: 109992

• Industrial quality self-adjusting push/pull toggle clamp converts the movement of the handle into an axial movement of the piston. The piston pushes a workpiece against a fence or stops and locks with the handle in the horizontal position. For example as used on most pocket-hole jig systems. The piston has 25mm of travel and automatically adjusts to variations in workpiece thickness. The piston centre height is 23mm. A set-screw, on the cantilevered joint, adjusts the clamping force to your particular needs up to 3,000N.
• The piston has an internal thread with an extension for manual length adjustment. The wide injection moulded handle has a soft grip insert, which makes setting the clamp a comfortable operation. Made from quality steel, galvanised and passivated against corrosion. It has a central hole to allow fitting to MFT using UJK anchor dogs. Dogs and toggle clamp plates available to attached the clamp to a Multifunction work bench where needed (sold separately).
• Versatile, strong, durable automatically clamps any thickness within capacity
• Adjustable clamping force variable up to 3,000N
• Galvanised and passivated steel for a long service life

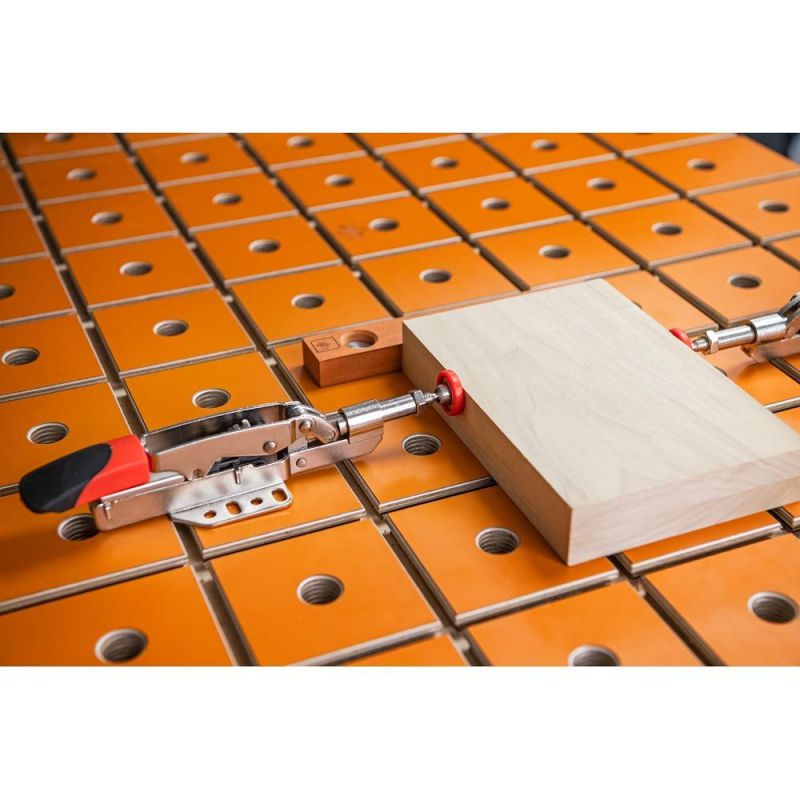

• Central hole to allow fitting to MFT using UJK anchor dogs
