UJK Compact Lock Jig - 508619

UJK Compact Lock Jig

ref: 508619

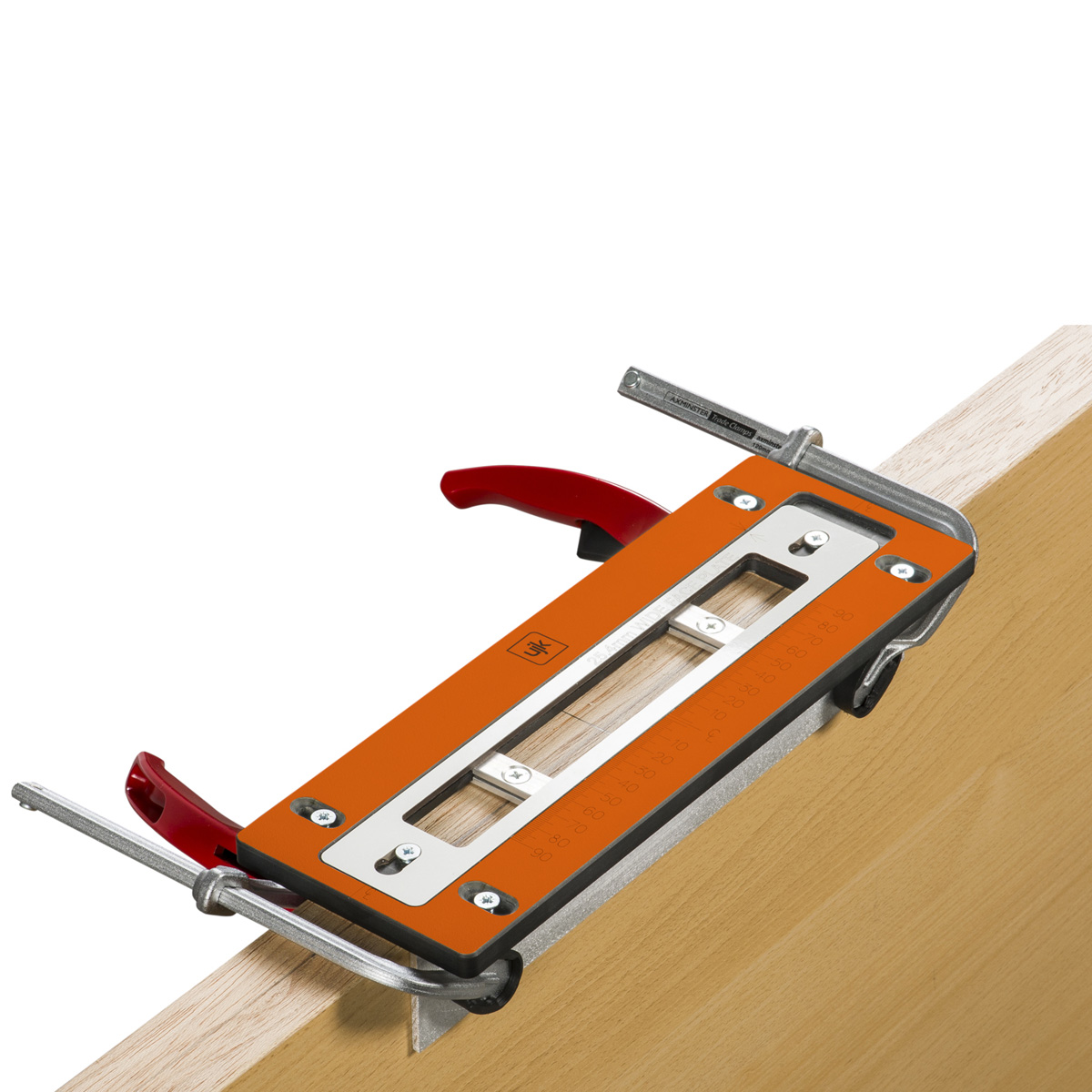

• This Adjustable Lock Jig is made of 12mm thick High Pressure Laminate, dimensionally stable and with a lifetime guarantee never to warp. It is fully adjustable for lock faceplates up to 175mm in length.

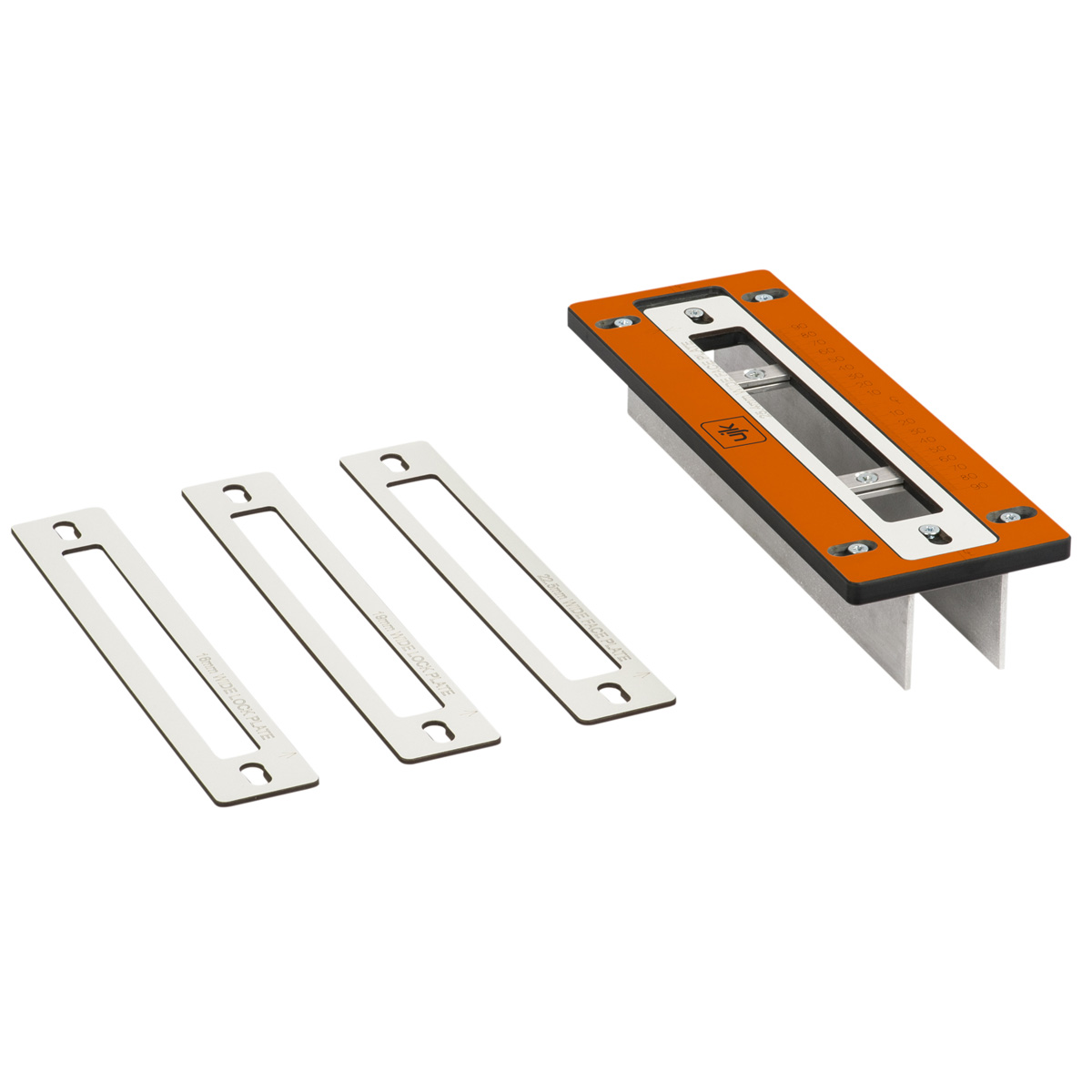

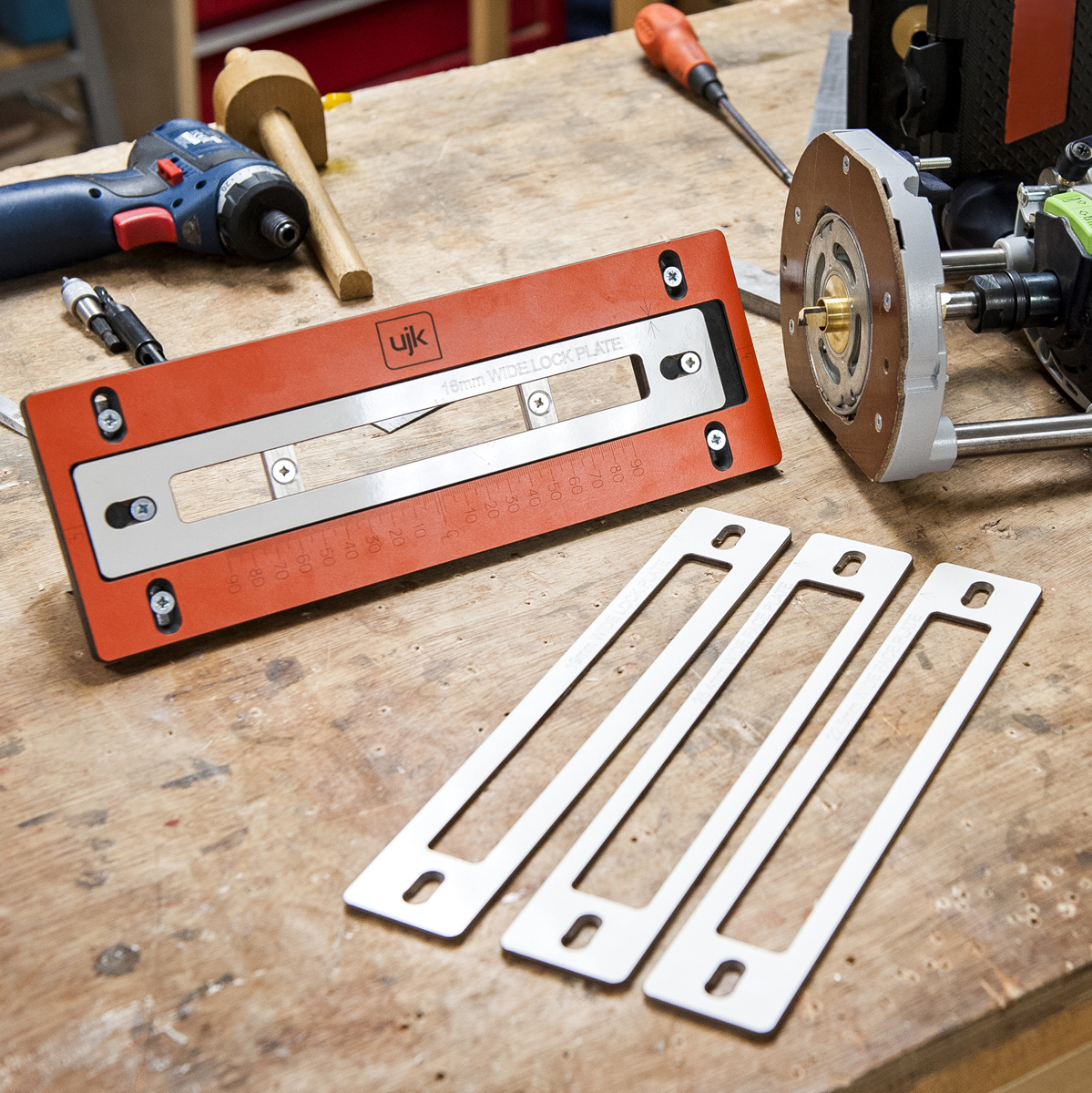

• The jig includes interchangeable templates to cut mortice and faceplate recesses for the most popular door sash, mortice and deadlock sizes: two faceplate templates for 25.4mm(1") and 22.5mm(7/8") wide lock plates and templates for 19mm(3/4") and 16mm(5/8") wide lock bodies.

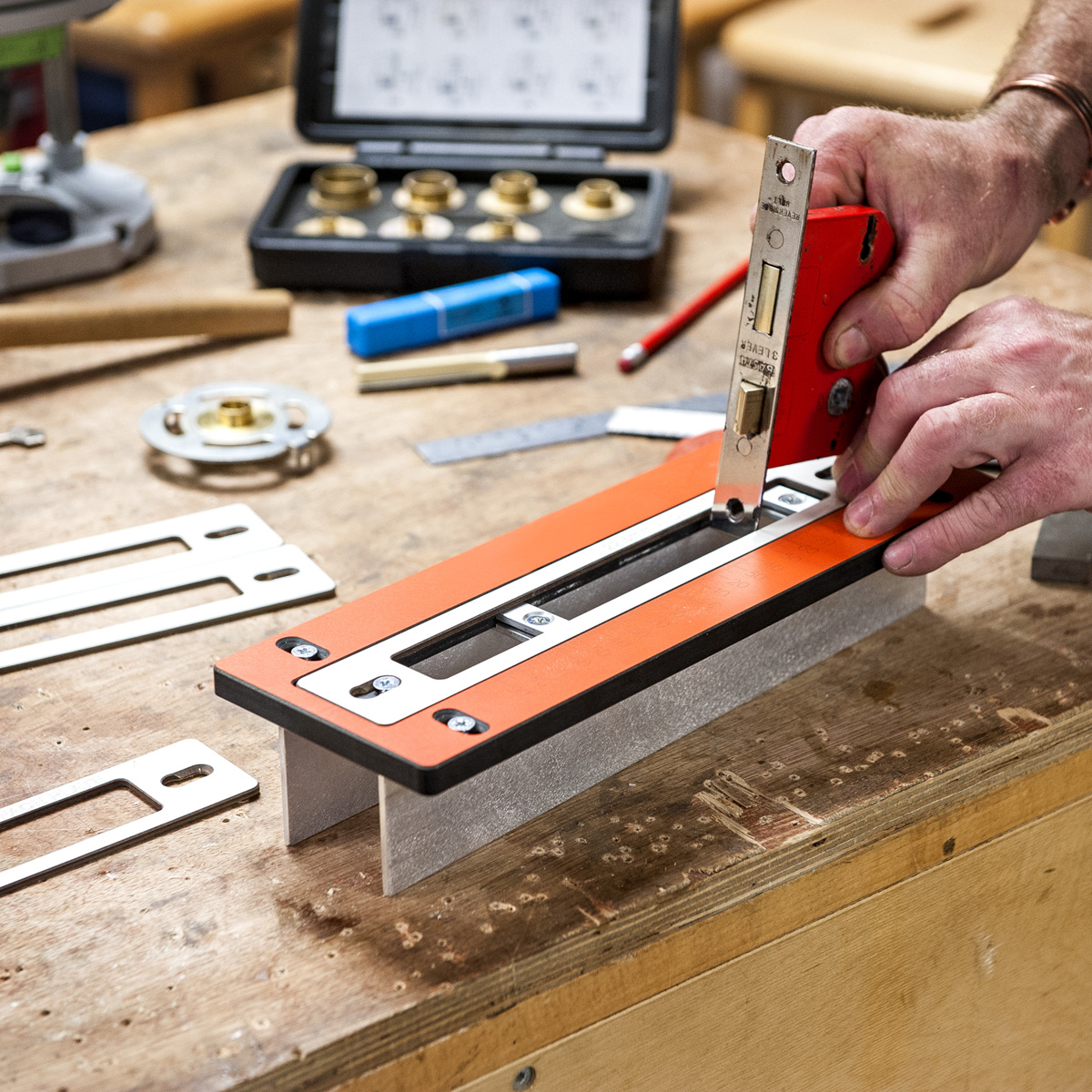

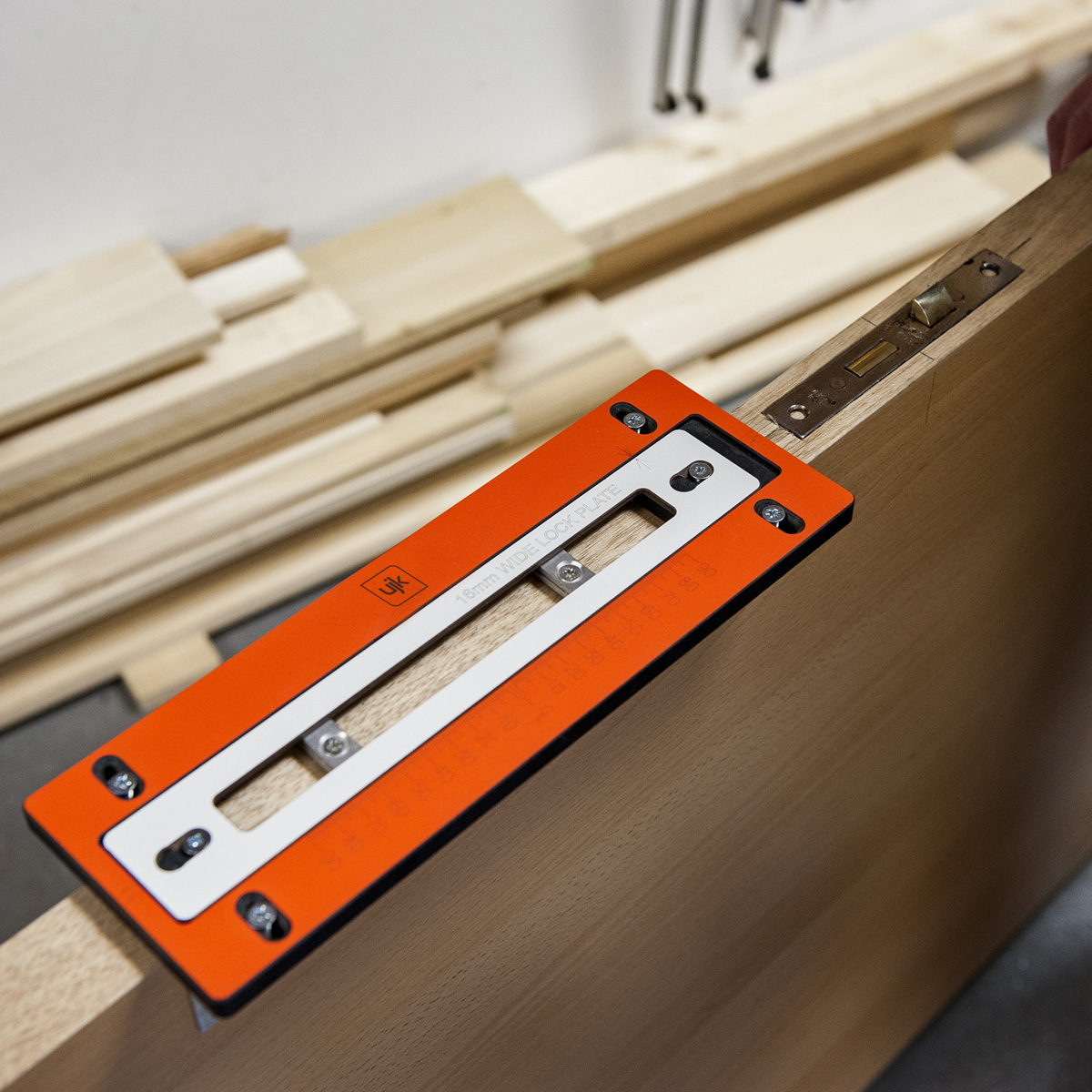

• These interchangeable templates have keyhole slots for quick and easy template changing. Set-up is easy, you just need to mark the centre line of the door and the centre line for the lock.
• The mortice will be square to the door ensuring the parts are square and making it easier to fit the handles. It is suitable for doors up to 58mm(2.1/4") thick.

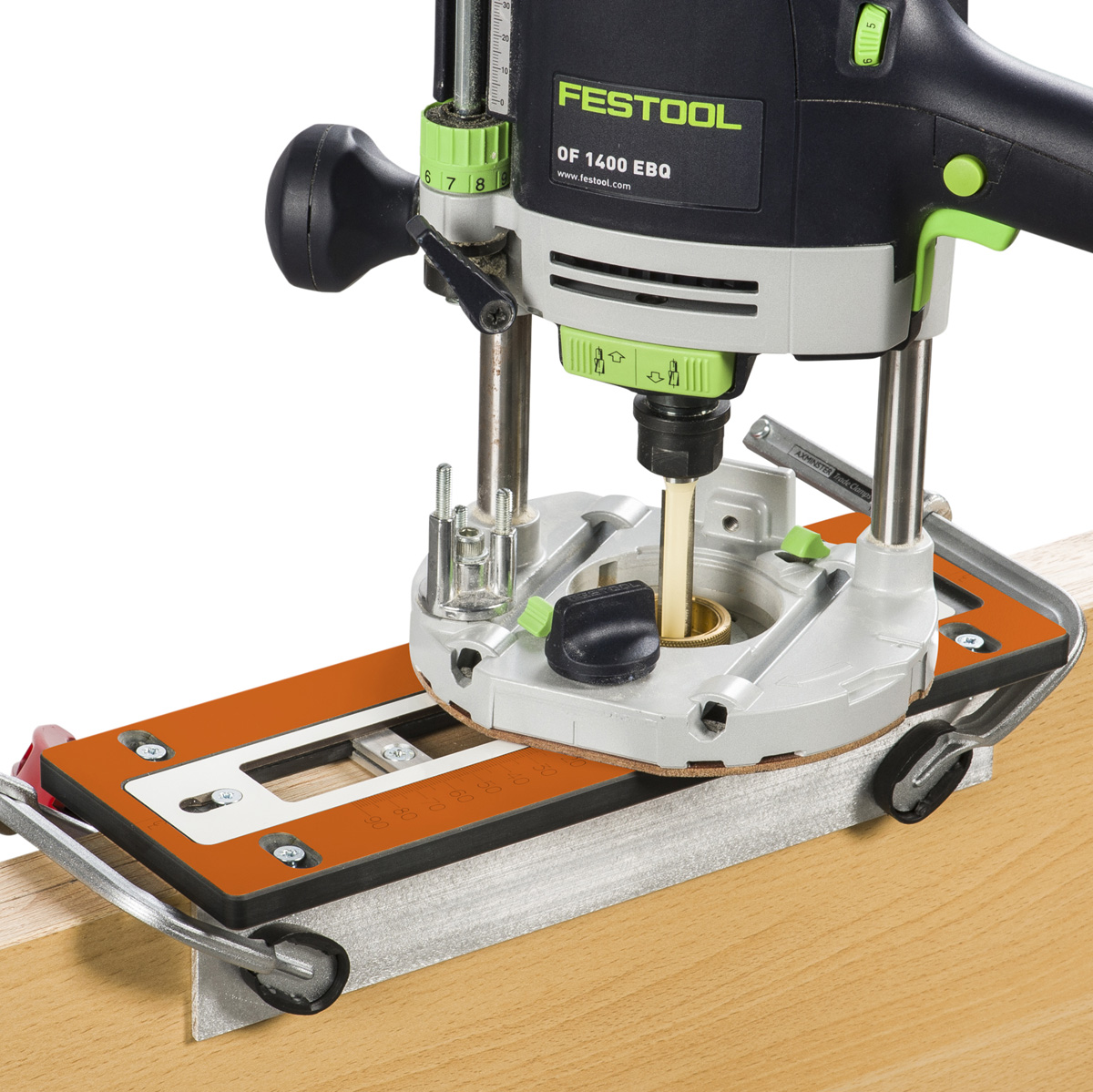

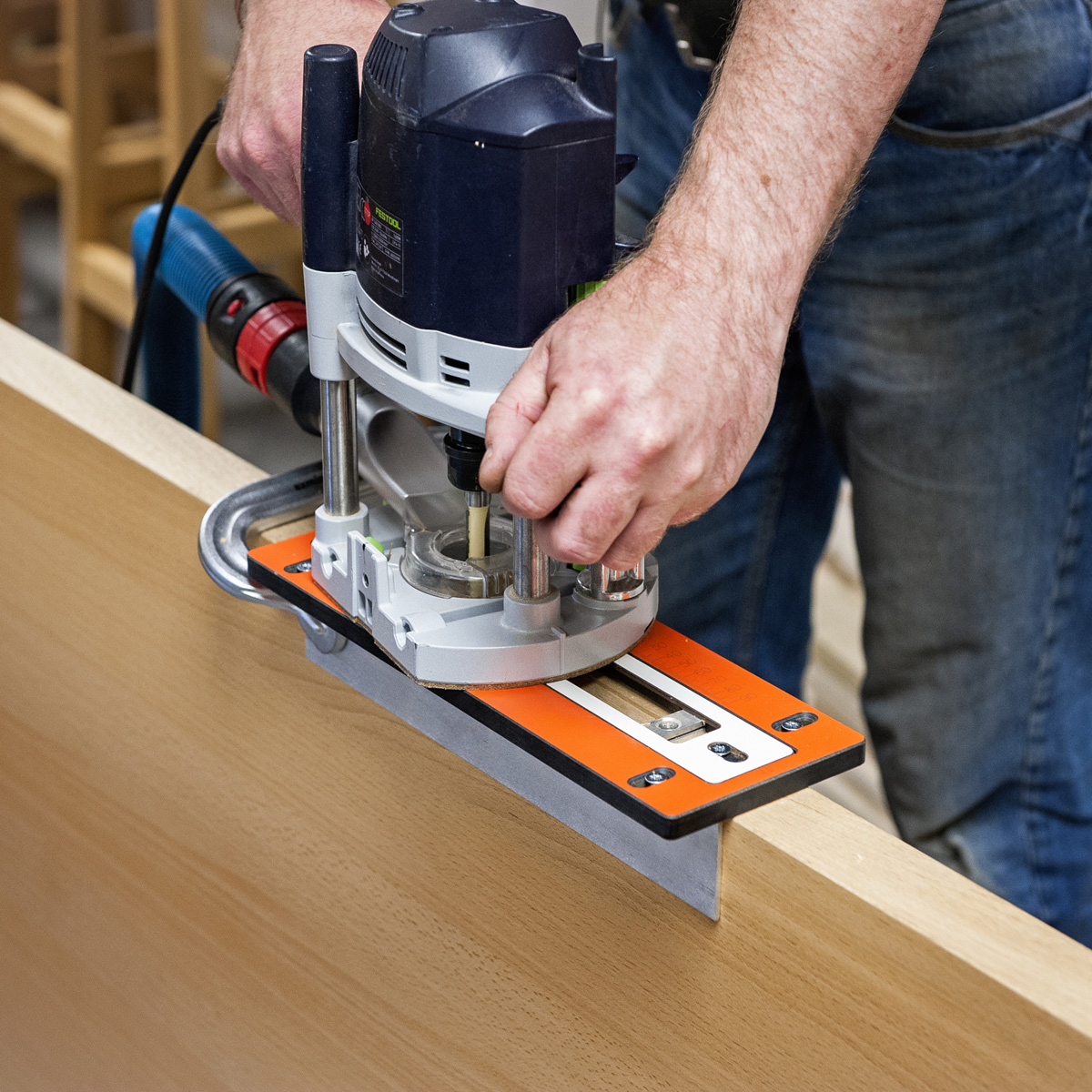

• You will require a 1/2" router with a 12.7mm(1/2") straight cutter (long reach if possible) and a 16mm guide bush.

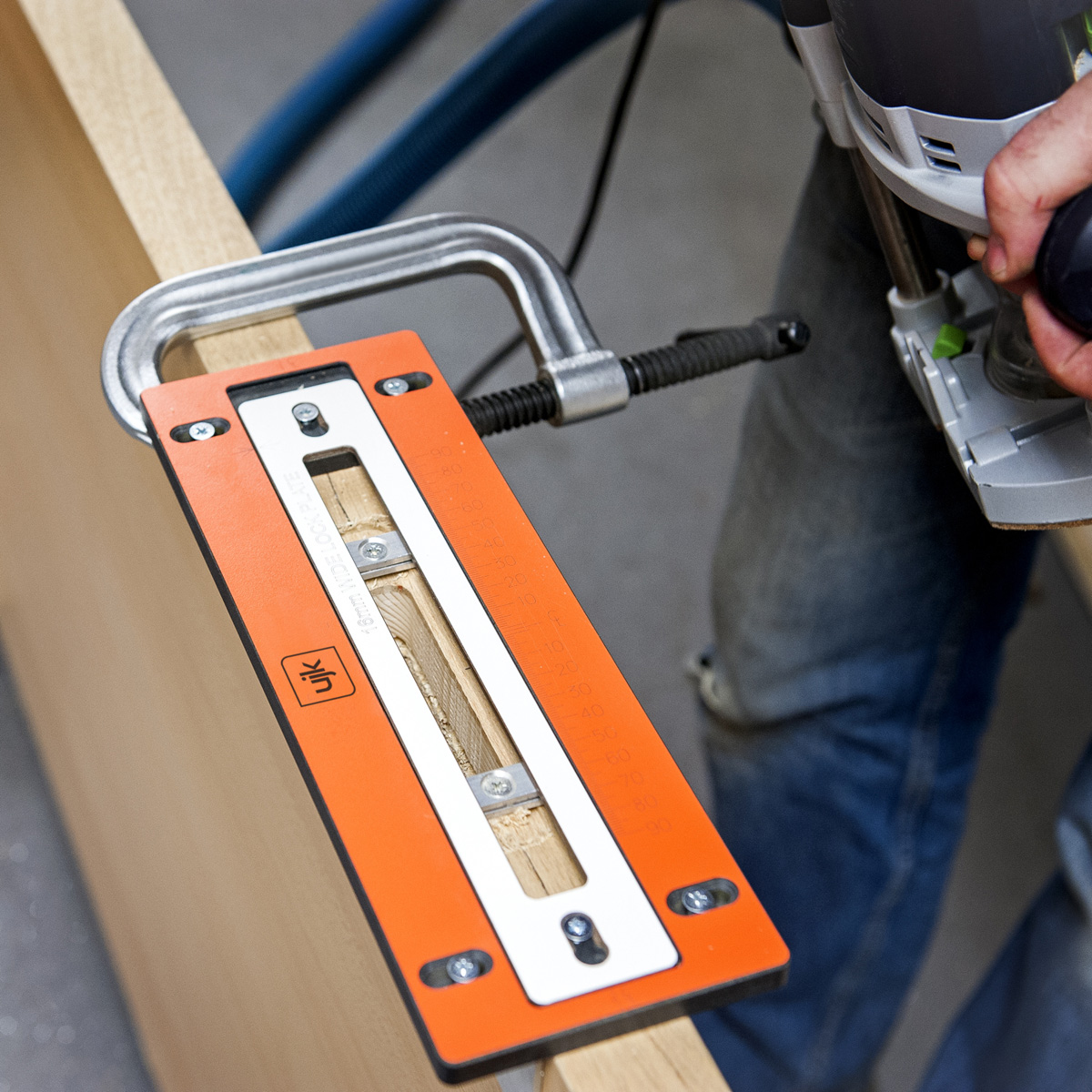

• In addition, two clamps to hold the jig in place and a screwdriver to adjust the settings.

UJK Compact Lock Jig Instructions
