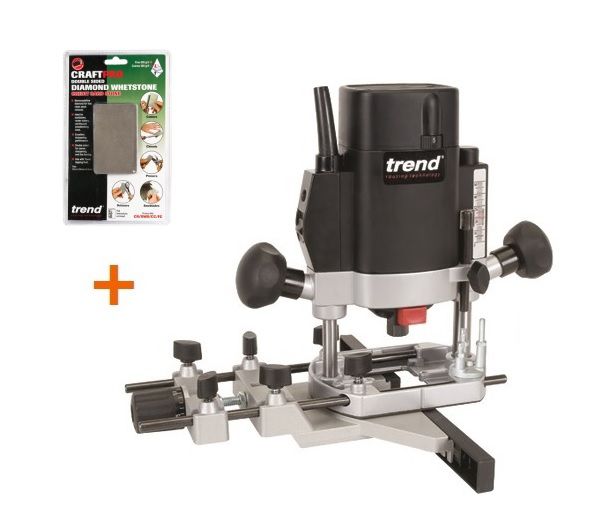

Trend T5 T5EB 1000W 1/4" Collet Plunge Router 240V + Diamond Credit Card

Trend Variable Speed 1/4" Plunge Router T5EB with Trend Craft Pro Diamond Credit Card Comparible Equivilent to the DW615 router

T5 Mark 1

Electronic full wave variable control of spindle speed under load for a fine finish on all types of material

• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout
  and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only)

• Rating: Professional / Trade
• Plunge stroke: 0-50 mm
• Power input: 1000 watt
• Power ampage: 4.6 amp
• Standard collet dia: 1/4"
• No load speeds: 9-27000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia: supplied 20 mm
• Rod diameter: 80 mm
• Rod length: 300mm
• Rod centres: 84 mm
• Cutter dia. max: 40 mm
• Other collet dia: none only 1/4"
• Weight; 3.3kg
• Voltage: 240 volt
• Sound pressure Lpa: 81.0 dB(A)1
• Acoustic pressure Lwa: 94.01 dB(A)2
• Hand arm vibration: <2.5 m/s2

• 1 x 1/4" Collet
• 1 X 20mm Guide Bush
• 1 X 35mm Clip-in Dust Spout
• 1 X Side-fence with Micro Adjuster
• 1 X Beam Trammel Attachment

Trend T5 Mk1 / Mk2 Owners Manual

Trend Craft Pro Diamond Credit Card Stone - CR/DWS/CC/FC

A double sided credit card size diamond stone.


• Monocrystalline diamonds for fast, clean, stock removal.
• Excellent sharpening performance.
• Double sided for coarse sharpening and fine honing.
• Coarse 360 grit (nom. 40 microns) and fine 600 grit (nom. 25 microns).
• Ideal for fluted, shaped & small router bits, carbide or HSS, turning tools, chisels, plane blades, carving tools & all general tooling.
• Recommended use with Trend lapping fluid to prevent clogging or rusting and assist in keeping tools clean.

• Dimensions: 82 x 50 x 0.8 mm
• Grade: Fine & Coarse
• Grit: 600 & 360 (nom 25 & 40 micron)
