Trend T10EK - 2000W 1/2" Variable Speed Router PLUS Lock Jig and Corner Chisel

Trend T10EK - 2000W 1/2" Variable Speed Router PLUS Lock Jig and Corner Chisel Package

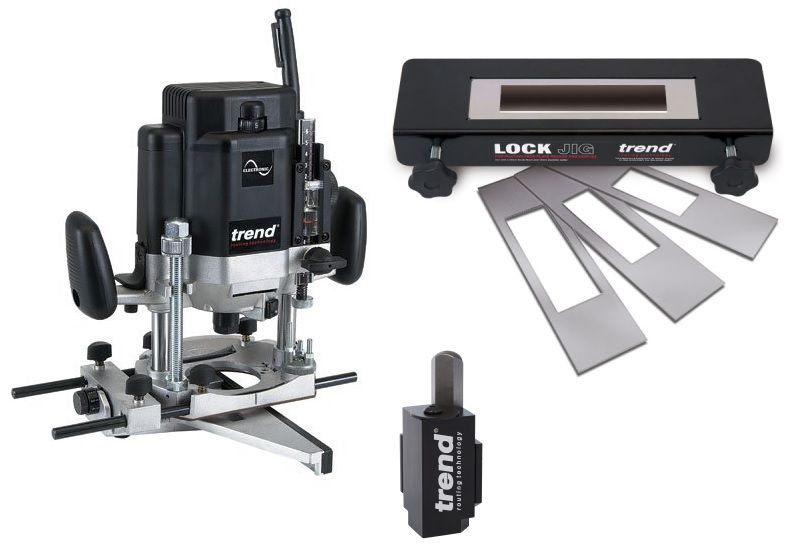

Package includes:

• 1 x Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox
• 1 x TREND LOCK/JIG LOCK JIG
• 1 x TREND CORNER CHISEL C/CHISEL for Hinge Jig

Trend T10EK - 2000W 1/2" Variable Speed Workshop Plunge Router 240v with Kitbox

Heavy Duty Trade Router Designed for Tradespeople in the Workshop or On-Site. The Essential Router for Worktop Fitting, Lock and Stair Jigs and General Workshop use.

• 1 x 1/2" Collet - CLT/T10/127
• 1 X Inner Plate - WP-T9/075
• 1 x 30mm Guide Bush
• 1 X Line up Pin - WP-T9/090
• 1 X 35mm Clip-in Dust Spout - WP-T11/107
• 1 X Side-fence with Micro Adjuster - WP-T10/087
• 1 X Storage Case - CASE/T10

• Rating: Professional/Trade
• Voltage: 230 volt
• Plunge stroke: 0-80 mm
• Power input: 2000 watt
• Power ampage: 9.6 amp
• Standard collet dia: 1/2 inch
• No load speeds: 8-20000rpm
• Dust spout size ID: 35 mm
• Guide bush dia. supplied: 30 mm
• Cutter dia. max: 50 mm

Trend T10 / T11 Router Owners Manual

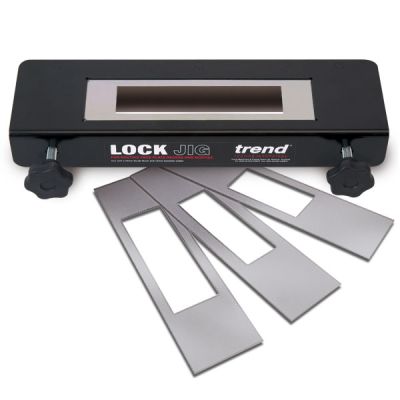

Trend Contractor Lock Jig

Ref: LOCK/JIG

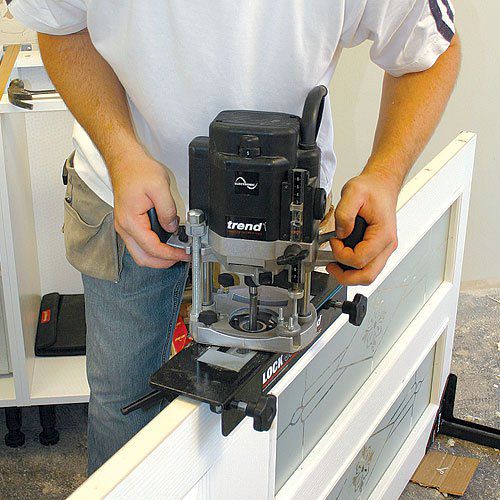

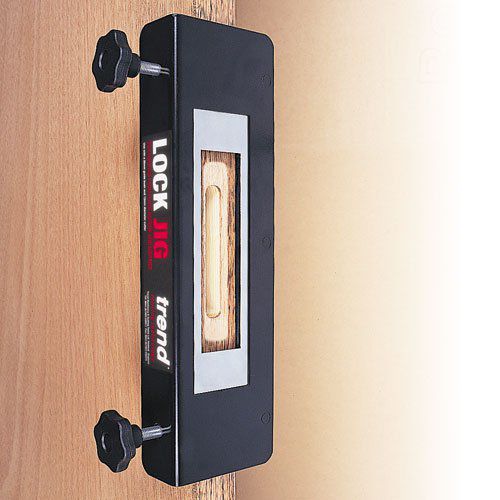

This jig uses a set of interchangeable templates and a router to cut the mortise and faceplate recess for popular door locks.

• For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate
• Deeper mortises can be achieved with a suitable size of auger bit
• Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood
• Steel plates & body
• An auger bit and drill is required to complete deep mortises
• The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise

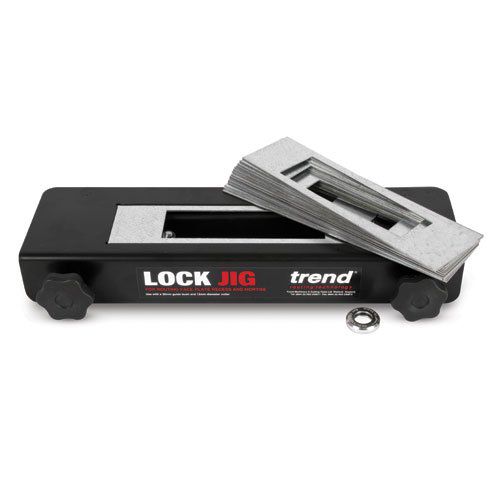

Trend Lock Jig is supplied with:

• 1 x Guide bush
• 12 X Faceplate templates
• 5 X Mortise template
• 6 X Spacer fingers

Further detail here

Trend Routing On-Site Jigs - Trend Corner Chisel - To quickly square up rounded corners when using lock and hinge jigs - (Ref: C/CHISEL)

• Allows a rounded recess in wood to be cut to a square recess with the use of a hammer
• Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates
• Spring loaded high speed steel (HSS) anvil for a sharp cut and long life
• Light weight aluminium body design
• Can be used with the Trend Hinge Jig
• Can be resharpened

• Length: 70 mm
• Width: 29 mm
• Weight: 100 g
