TREND S55/22X1/4STC S/E SPIRAL 6.3X15.9 UPCUT ALLOY

Trend Professional Router Cutter

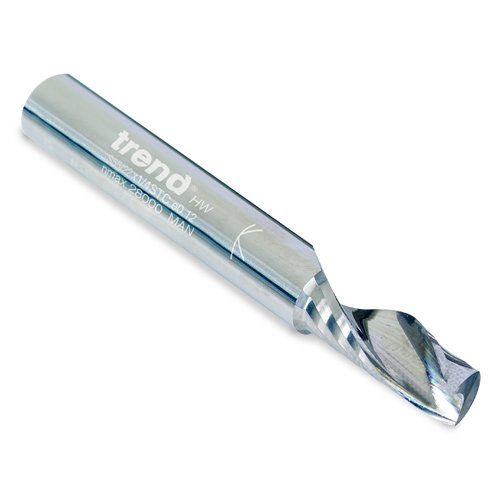

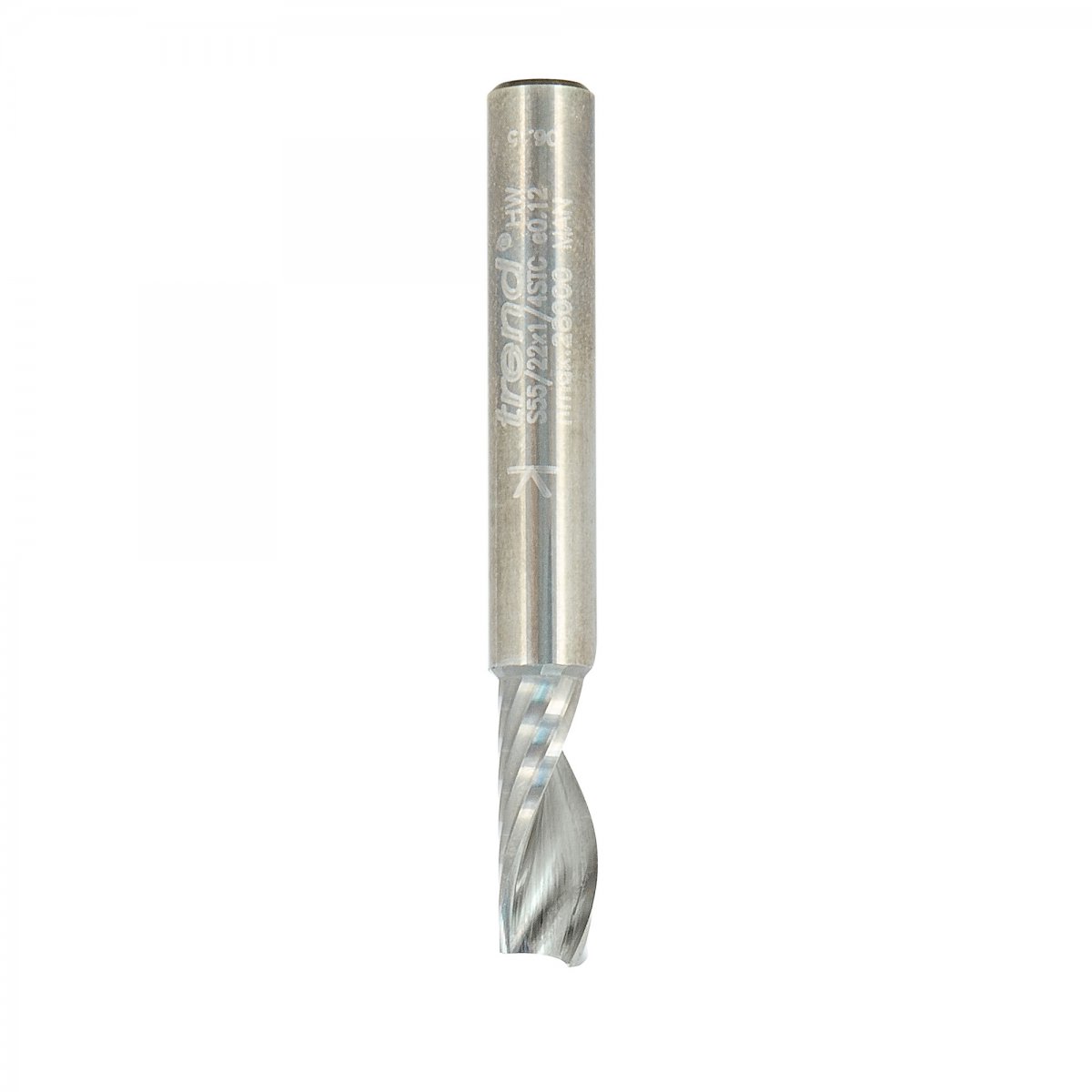

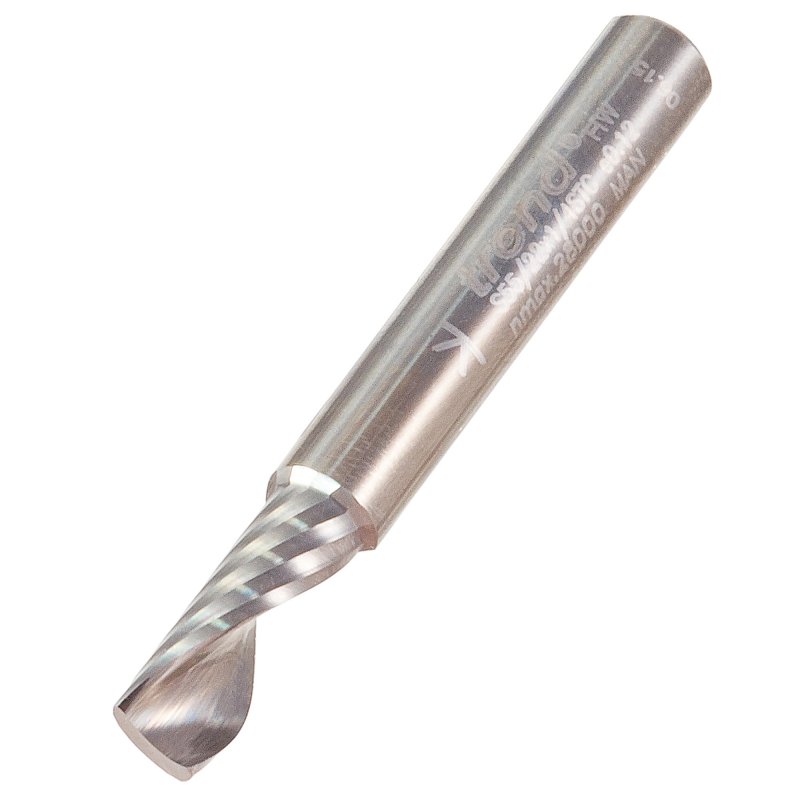

S55/22X1/4STC - Aluminium Single Flute Upcut Spiral
6.3mm Diameter x 15.9mm Cut

• Special high grade sub-micrograin carbide with very high tolerance grinding for smooth clean cut in aluminium
• Single O flute design for fast cutting. Increased feed rates allowing for more linear metres in less time

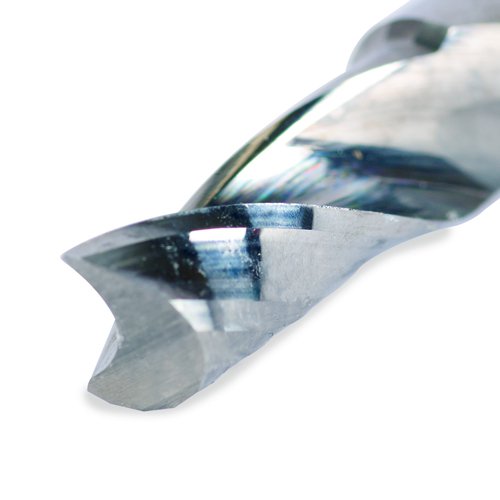

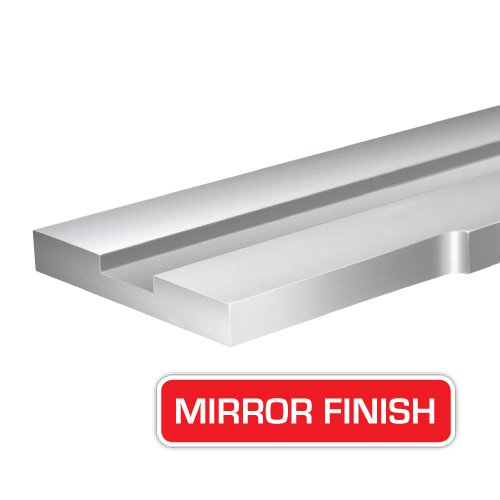

• Super high polished cutting edge with unique mirror finish, resulting in clean cuts, less chance for chip re-welding, effortless chip removal, a superior finish and a longer tool life
• Downcut for better clamping when machining small workpieces and improved finish on the tops of the board.
• For use on routers and CNC routers
• Strongly recommended that a lubricant or coolant is used to prolong tool life
• Upcut spiral can be used to plunge cut. Downcut not recommended for plunge cutting unless ramped into workpiece
• Eject chips up or down depending on tool used
• Designed for aluminium, brass and copper and other non ferrous metals
• Can be used on Alupanel and Dibond

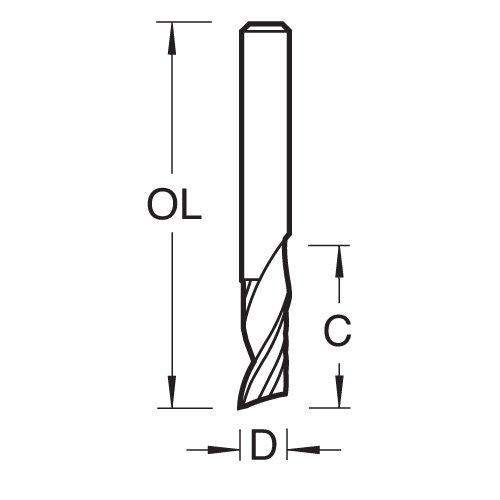

• D: 1/4 inch (imperial diameter)
• D: 6.3 mm (metric diameter)
• C: 5/8 inches (imperial cut length)
• C: 15.9 mm (metric cut length)
• OL: 51 mm (overall length)
• Shank Diameter: 1/4 inch
• Recommended speed: 12,000-18,000 rpm
