Trend PH/JIG Pocket Hole Jig Dual - Kit with Screws, Clamp and Drive Bits

Trend Drilling Accessories
Pocket Hole Jig - Adaptable Fast and Simple Jointing System
Ref: PH/JIG

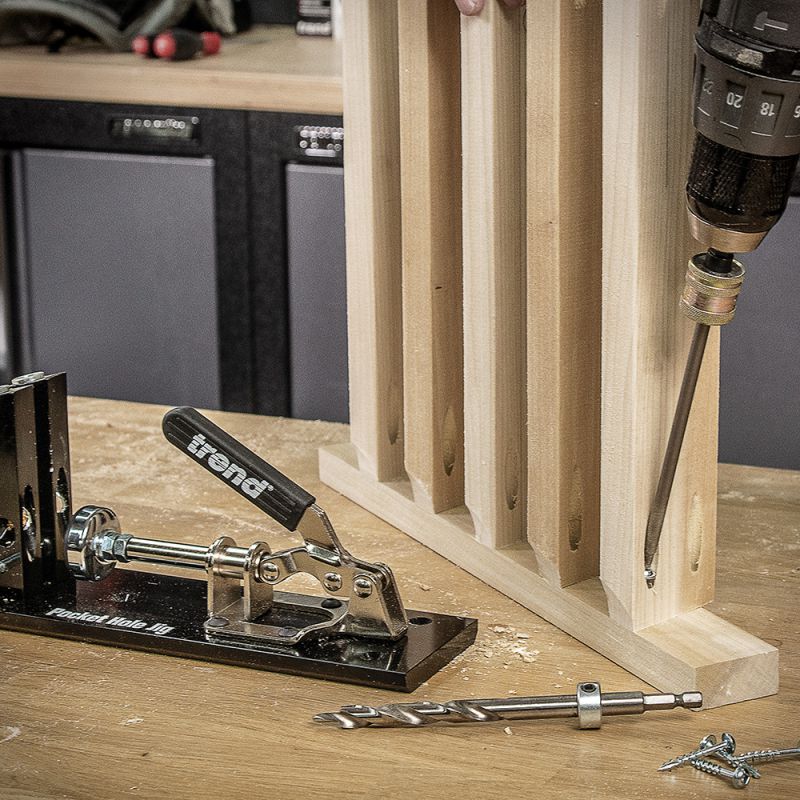

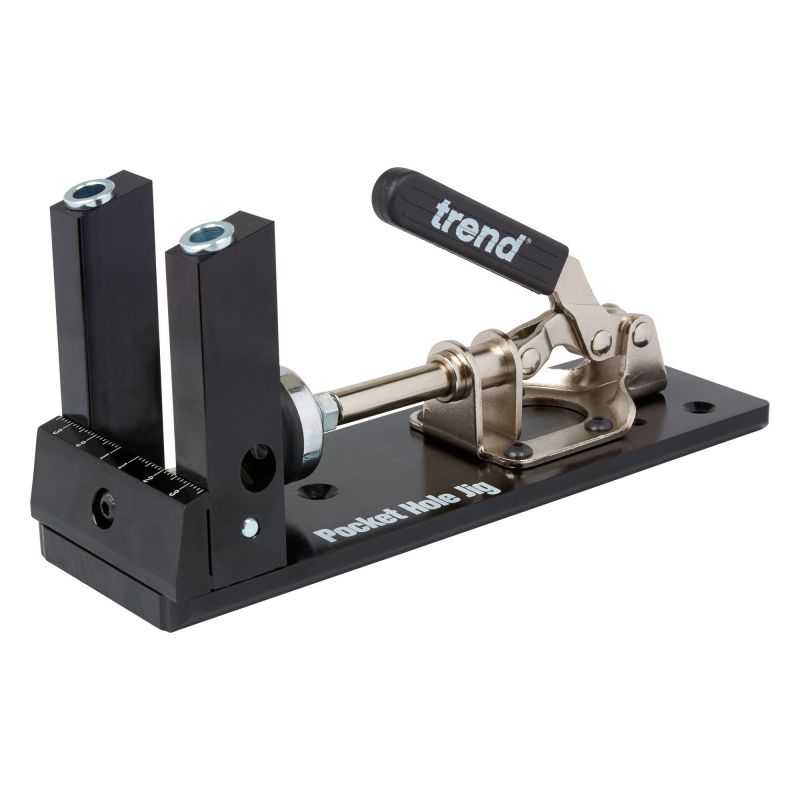

All-metal Pocket Hole Jig for drilling 9.5mm pocket hole joints suited to both new and repair work. Adjustable hole centres for narrow and wider stock, ideal for carcase and face framework, designed for 16mm to 19mm thick material. Can be bench-mounted for batch work or guides can be used independently for in-situ internal applications.

• Repositionable Drilling Guides allows the hole centres to be altered between 29mm and 63mm ensuring stronger joints in wider material.

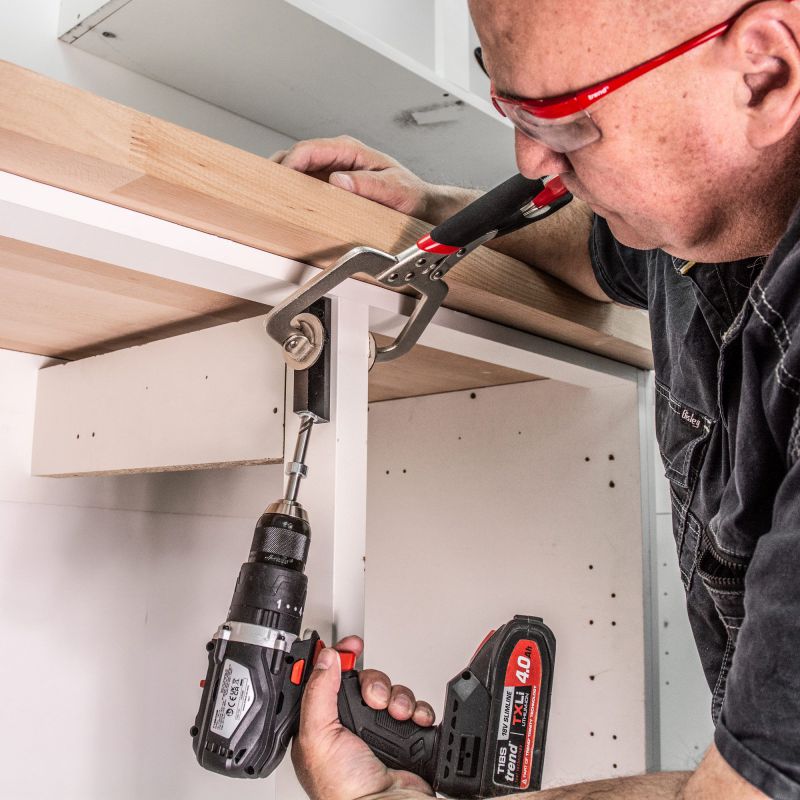

• Removable Drilling Guides can be used independently for repair work and inaccessible areas.
• Fixed Height Drilling Guides for materials from 16mm to 19mm (5/8” to 3/4”) accommodates common plywood, MDF and furniture board thicknesses.

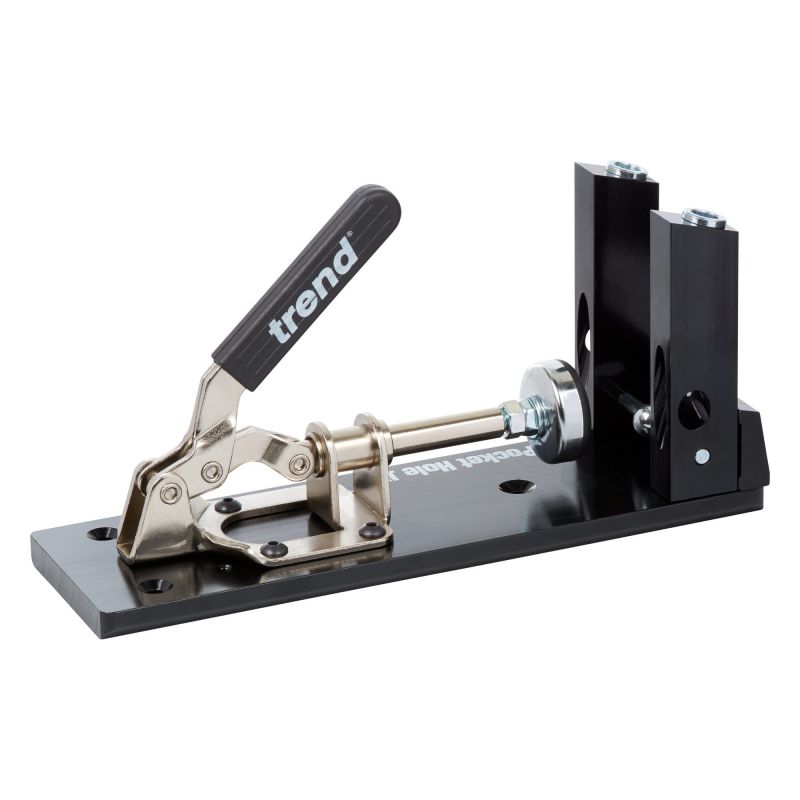

• On-Board Adjustable Clamp with quick-release mechanism
• Secondary Clamp Position allows the clamp to reposition for wider stock.
• Woodchip Relief Holes helps protect against clogging inside the drilling guides.
• Full Length Hardened Drill Guide Bushes for long life and accurate drilling.
• Non-Marring Clamp Pad prevents pressure marks on the workpiece.

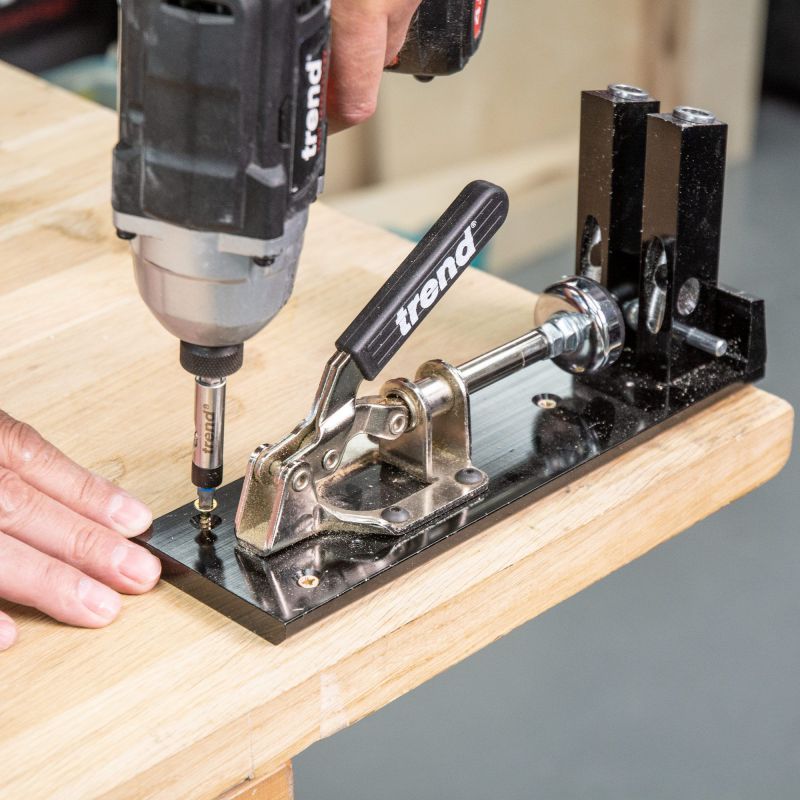

• Countersink Screw positions allows the jig to be screwed to a base board for extra support.

• 100 x Dome head screws No.7 x 30mm
• 1 x Face clamp
• 1 x HSS drill bit with collar
• 1 x 75mm Square drive bit
• 1 x 150mm Square drive bit
• 1 x Hex key 4mm A/F
• 1 x Hex key 2.5mm A/F

• Adjustable spacing to allow pitch from 29mm to 63mm.
• Workpiece can be quickly clamped to the jig for quick and easy usage.
• Clearance holes on both columns allow for swarf to be cleared.
• Workpiece can be handled immediately after gluing & screwing creating time saving benefits.

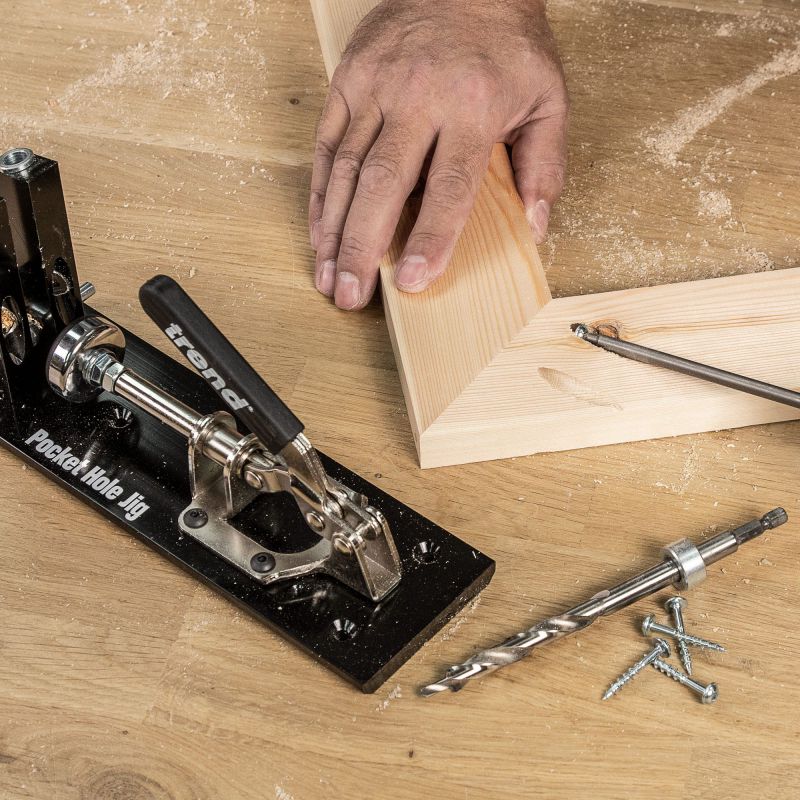

• Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.
• Fast, strong and quick construction for impressive projects with no additional clamps required.

• Material thickness min: 16 mm
• Material thickness max: 38 mm
• Material width min: 38 mm
• Hole pitch: 29 mm-63 mm
• Drill diameter: 9.5 mm
• Square drive bit size: No.2
• Screw sizes: No.7 x 30 mm

Trend Pocket Hole Jig Size Guide
