Pocket Hole Jig Mini
Ref: PH/JIG/M

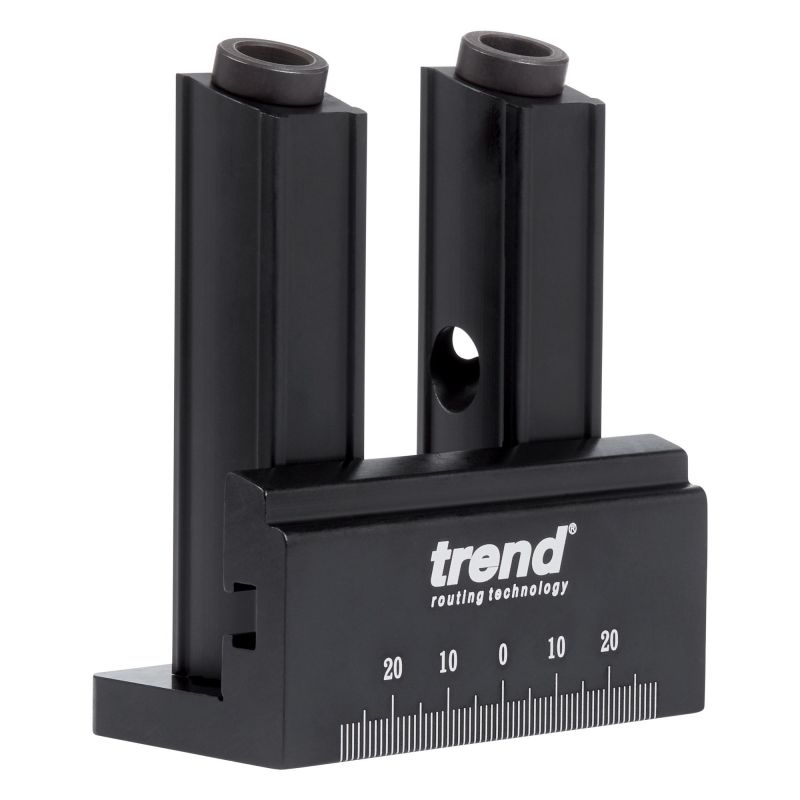

Trend Pocket Hole Jig Mini - Portable Pocket Hole Jig

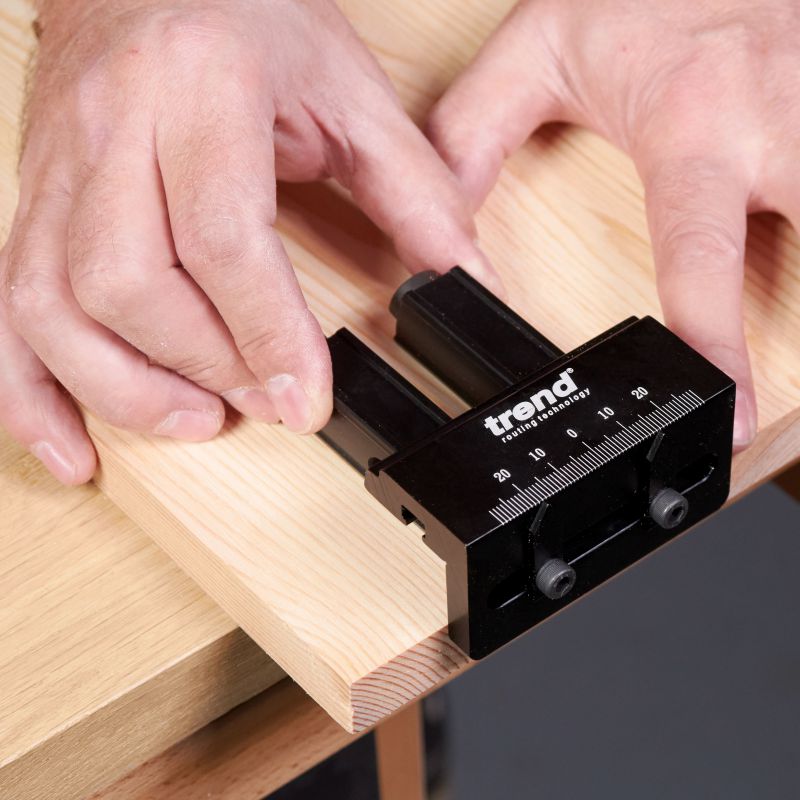

• Compact design perfect for repair work in situ on furniture, cupboards, and cabinets.

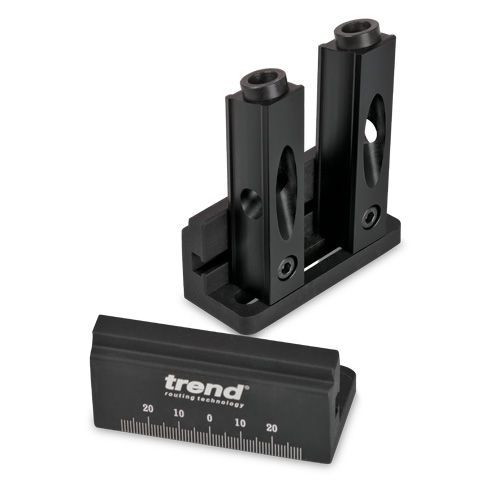

• Supplied with twin bases for use on new work and repairs for increased diversity.
• Fully adjustable from 18mm to 54mm centres for twin holes or stripped down for single pockets; ideal for repairs or joints on thinner components.
• Comes ready to use, complete with drill, driver bit and screws.
• High quality all metal build quality for durability, solid performance and consistency in any project.

• 50 x Dome head screws

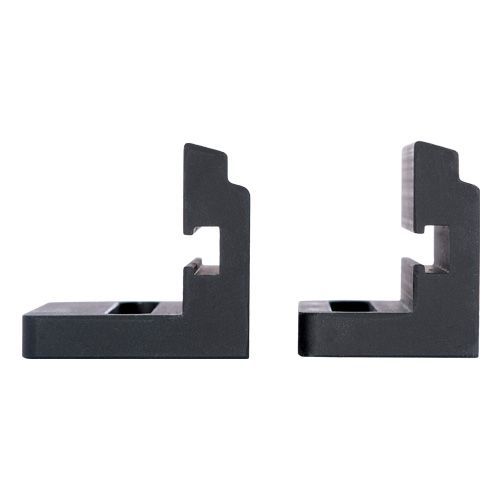

• 1 x Long base
• 1 x Short base
• 1 x HSS drill bit with collar
• 1 x 150mm Square drive bit
• 1 x Hex key 4mm A/F
• 1 x Hex key 2.5mm A/F

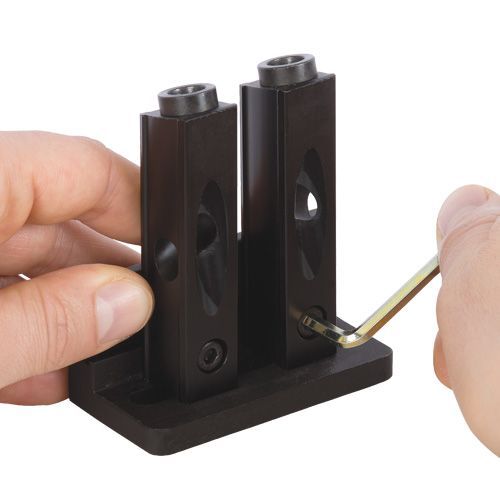

• Adjustable spacing to allow pitch from 18mm to 54mm.

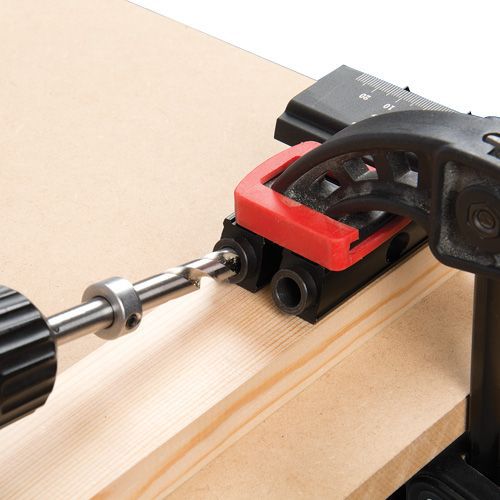

• Jig can be quickly clamped to the workpiece for quick and easy usage.

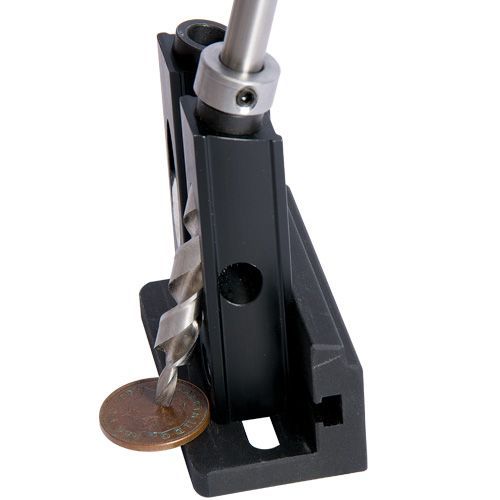

• Clearance holes on both columns allow for swarf to be cleared.
• Workpiece can be handled immediately after gluing & screwing creating time saving benefits.

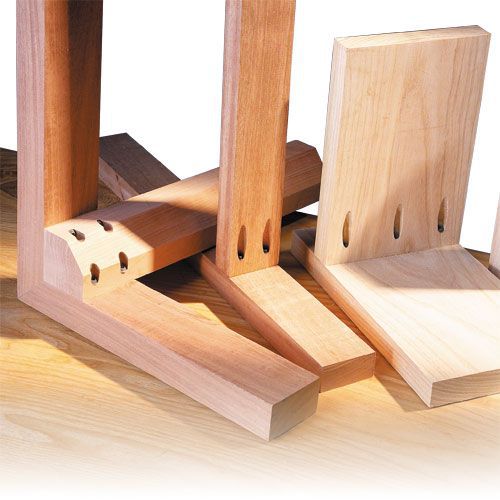

• Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.
• Fast, strong and quick construction for impressive projects with no additional clamps required.

• Material thickness min. 16 mm
• Material thickness max. 38 mm
• Material width min. 38 mm
• Hole pitch 18 mm-54 mm
• Drill diameter 9.5 mm
• Square drive bit size No.2
• Screw sizes No.7 x 30 mm
