Pro Pocket Hole Jig Kit
Ref: PH/JIG/AK

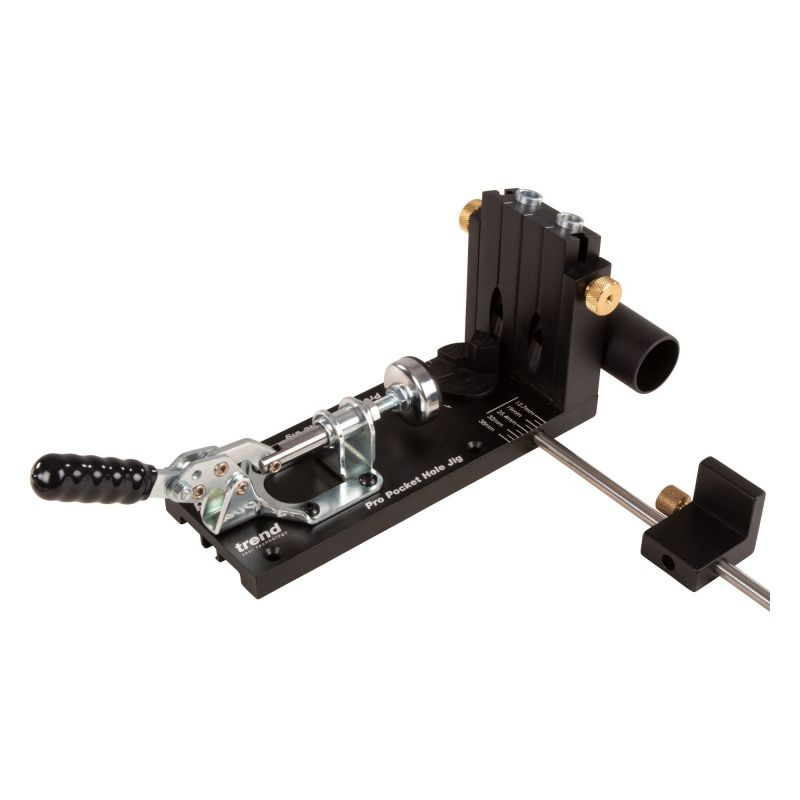

All-metal Pocket Hole Jig for drilling 9.5mm pocket holes in a range of material thicknesses. Twin 30mm centred pocket holes are ideal for large builds such as wardrobes, bookcases and cabinets. Can be bench-mounted for batch work or guides can be used independently for in-situ internal & external applications.

• Full Length Hardened Drill Guide Bushes for long life and accurate drilling.

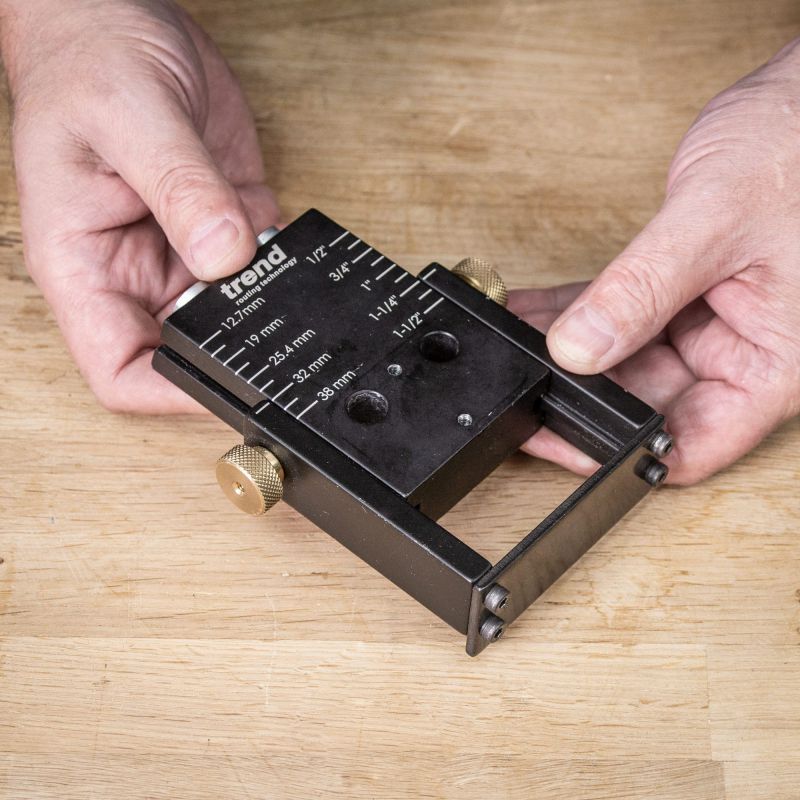

• Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.

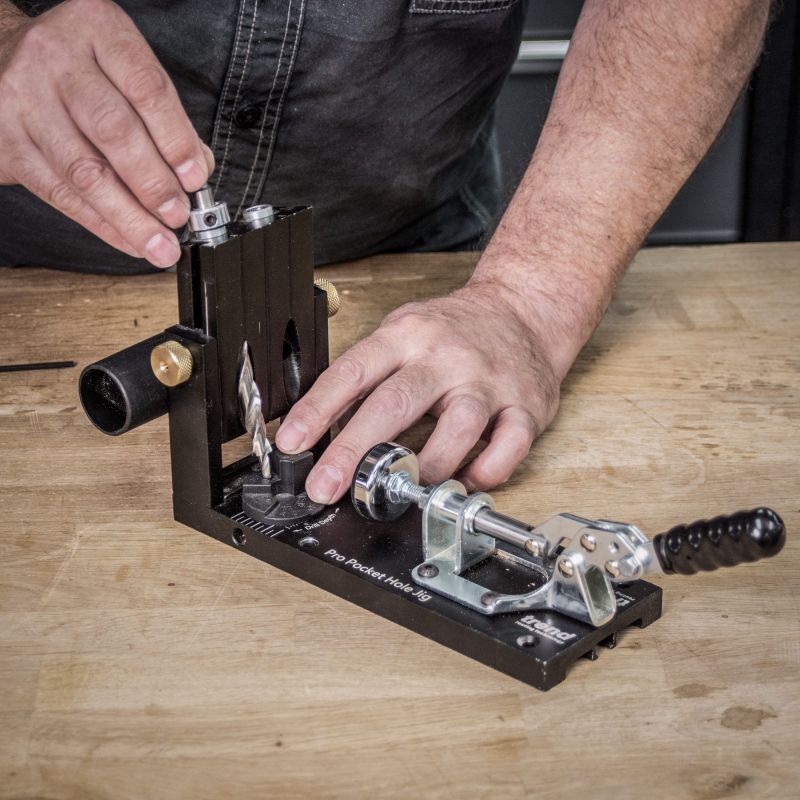

• Drill Bit Setting Turret for setting the correct drill depth to the material thickness.
• Work Support Rods prevent twisting when drilling longer material.

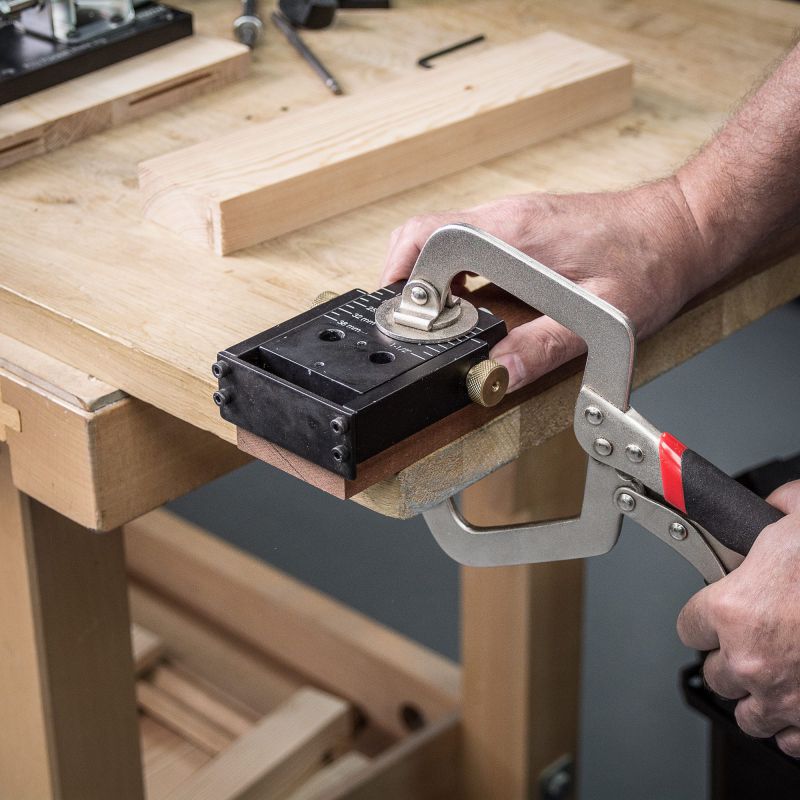

• Removable Drilling guides allows the column to be used separately for repair applications.
• Guide Locking Knobs lock the drilling guide in place once height has been adjusted.

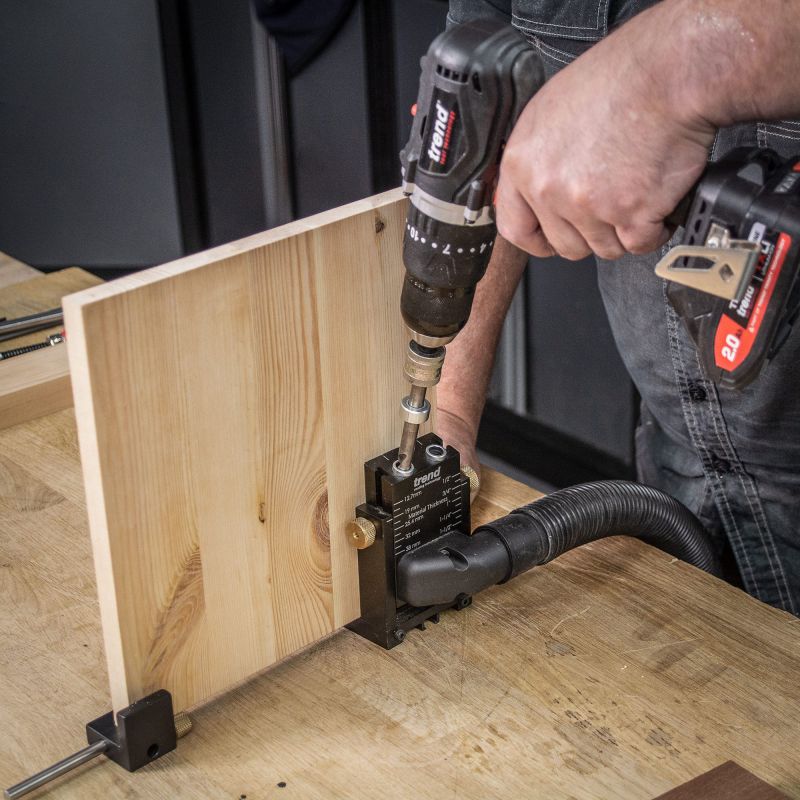

• Dust Collection Port efficiently clears dust and debris for faster, cleaner drilling.

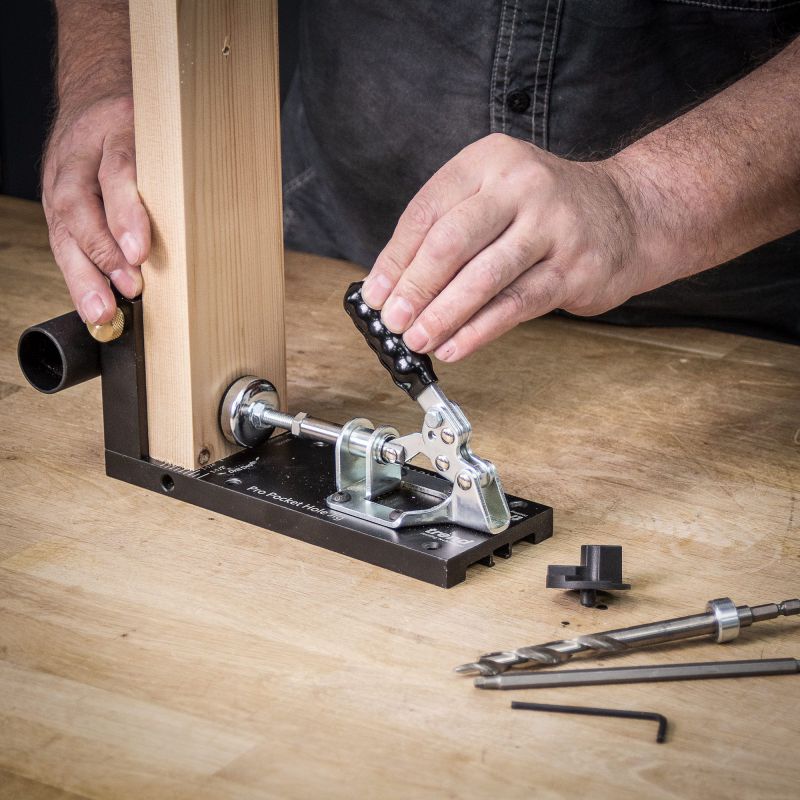

• On-Board Adjustable Clamp with quick-release mechanism.
• Non-Marring Clamp Pad to prevent pressure marks on the workpiece.
• T-Slot Clamp Guide supports the use of rail clamps to securely hold the jig to a work surface.
• Countersink Screw positions allows the jig to be screwed to a base board for extra support.
• Custom Carry Bag designed to optimise storage space.

• 10 x No.7 x 25mm (1 inch) coarse
• 30 x No.7 x 30mm (1-1/4 inch) fine
• 30 x No.7/8 x 30mm (1-1/4 inch) coarse
• 10 x No.8 x 38mm (1-1/2 inch) coarse
• 10 x No.8 x 50mm (2 inch) coarse
• 10 x No.8 x 63mm (2-1/2 inch) coarse
• 1 x Face clamp
• 1 x HSS drill bit with collar
• 1 x 150mm Square drive bit
• 1 x Hex key 3mm A/F
• 2 x Workpiece support
• 1 x Carry case

• Adjustable height to allow material from 12.7mm to 38mm to be jointed.
• Workpiece support and end stops for larger workpieces.
• Quick and easy drill bit depth setting turret and dust extraction spout.
• Workpiece can be handled immediately after gluing & screwing creating time saving benefits.
• Allows a variety of joints to be created individually in timber, MDF, plywood and blockboard.
• Fast, strong and quick construction for impressive projects with no additional clamps required.

• Material thickness min: 12.7 mm
• Material thickness max: 38 mm
• Material width min: 38 mm
• Hole pitch: 30 mm
• Drill diameter: 9.5 mm
• Square drive bit size: No.2
• Dust spout: ID 30 mm
• Underside T slot: 12.2/8.4mm x 6mm
