Trend LOCK/JIG/C Professional Lock Jig

Trend LOCK/JIG/C

Professional Lock Jig

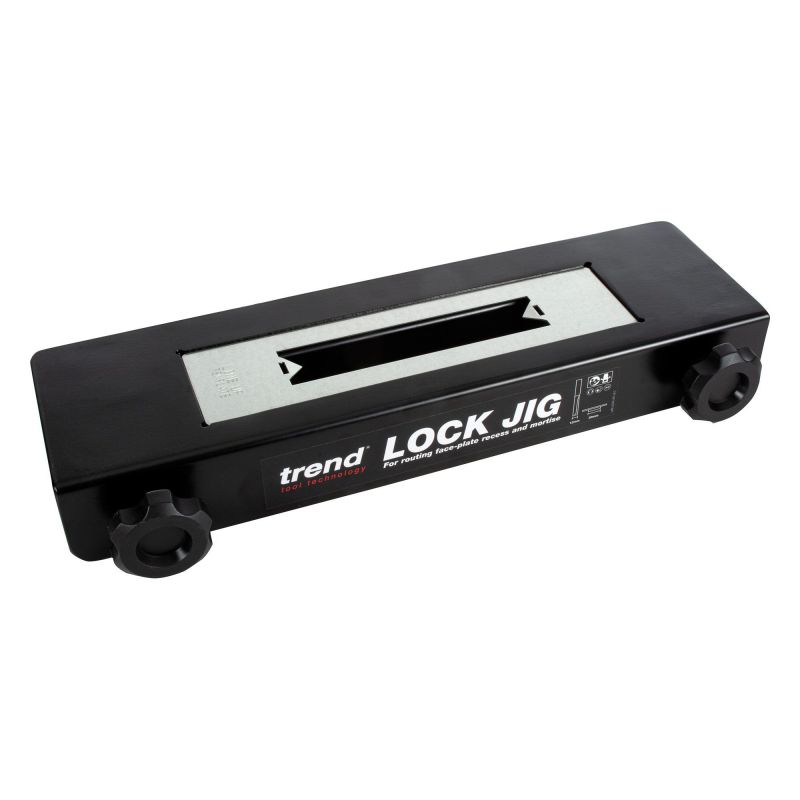

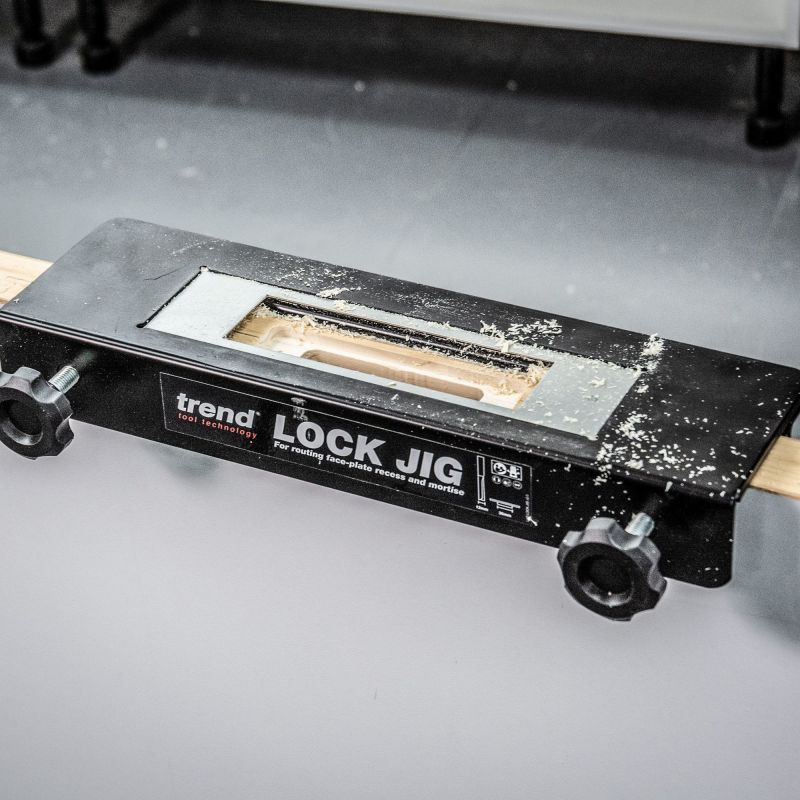

• A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands.
• Steel Construction for maximum strength, durability and accuracy.

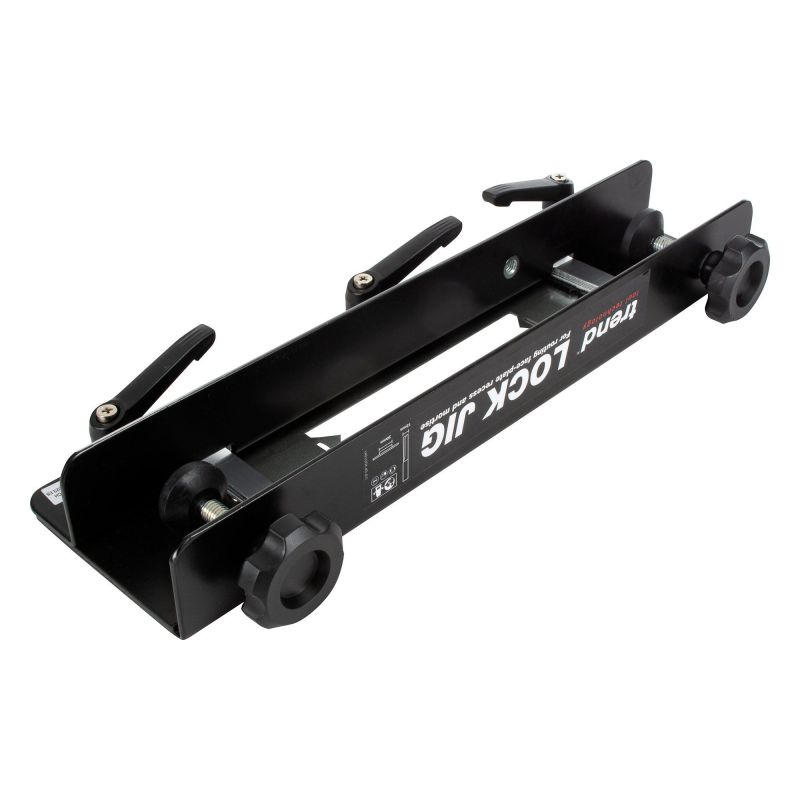

• Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.

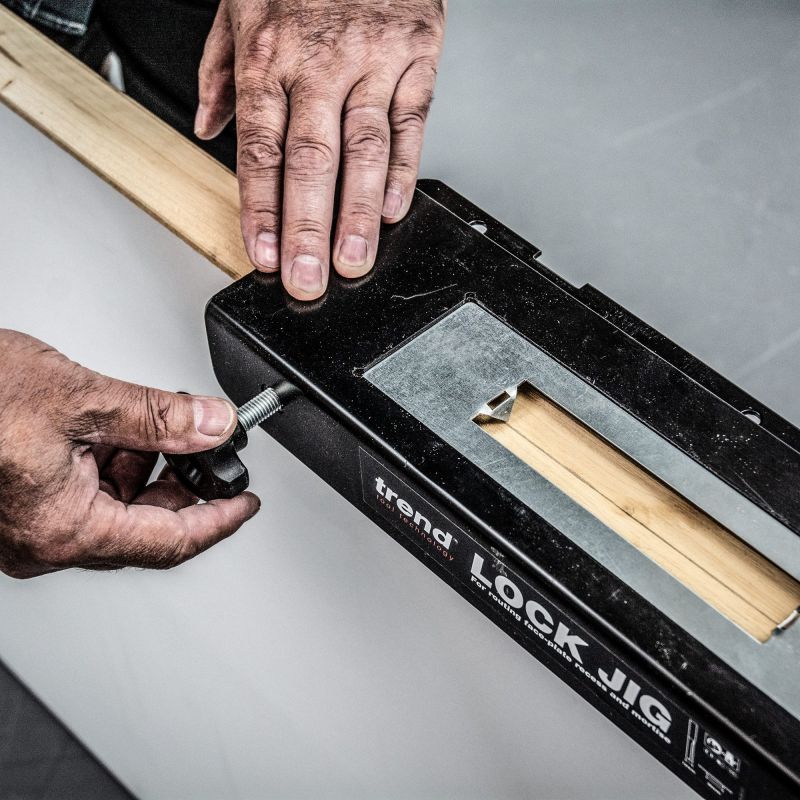

• Quick-Release Clamps with non-marring pads ensure the jig is held securely.

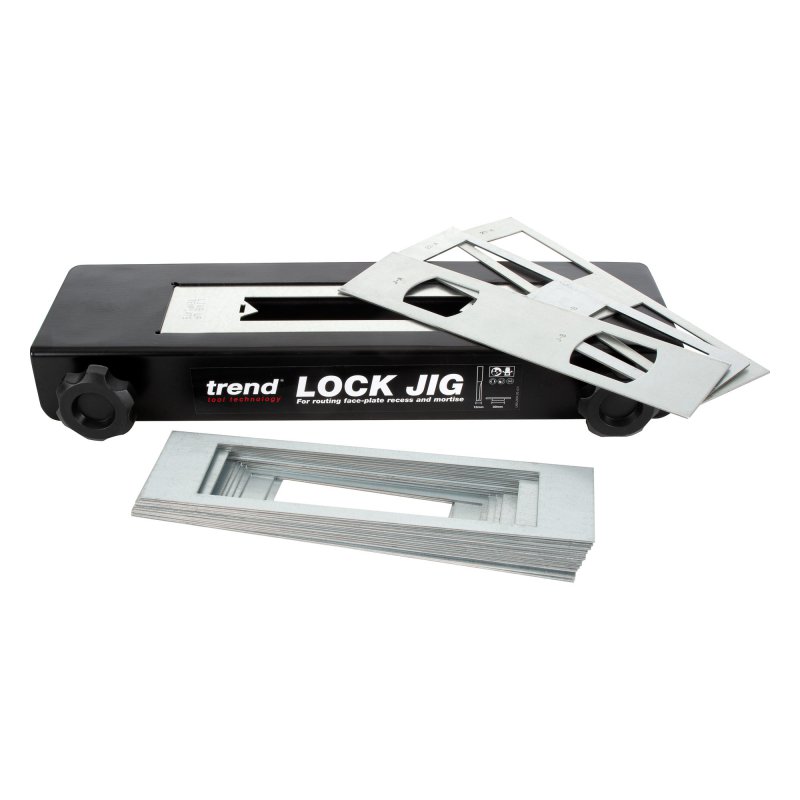

• 20 Interchangeable Templates to suit all common lock case and face plate sizes.

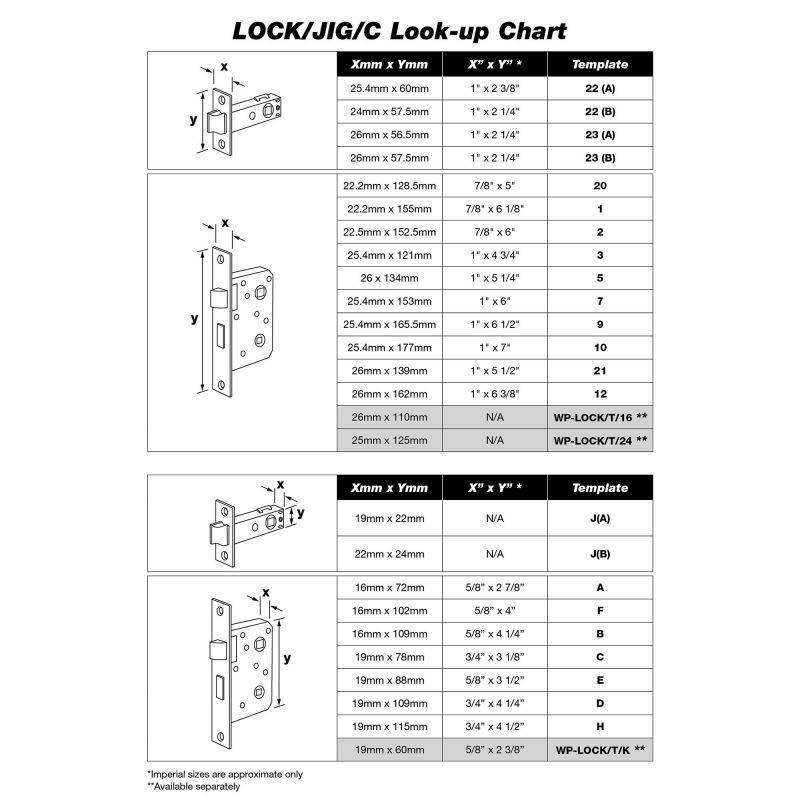

• Easy Reference Chart ensures that correct templates are found quickly.

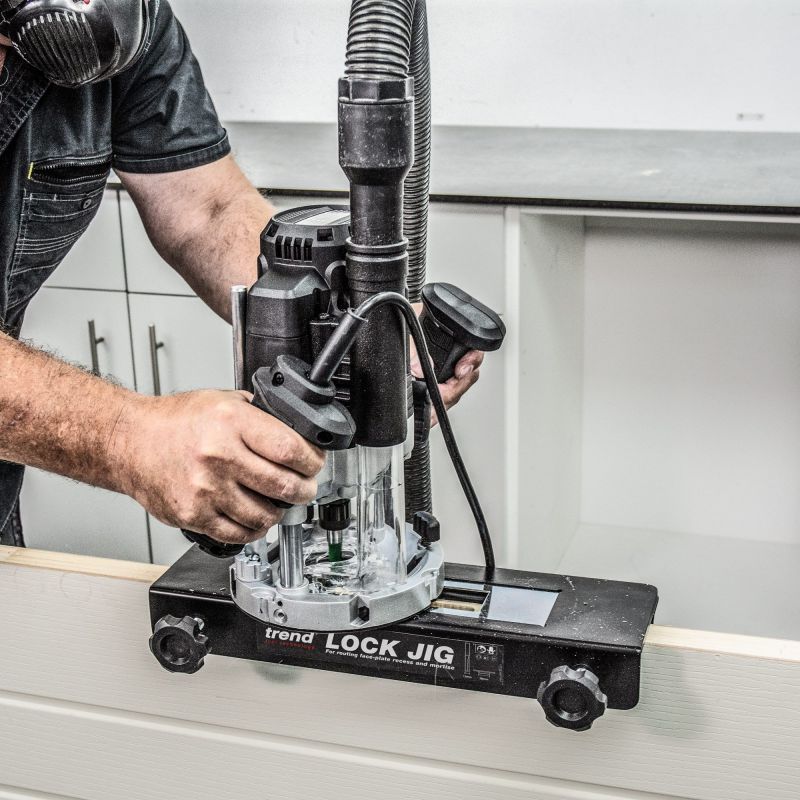

• Requires: 1/2"/12mm Plunge Router (80mm plunge depth), 1/2"/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.

• Door thickness min.=34 mm
• Door thickness max.=58 mm

Faceplate Templates:

• 25.4 x 60.0mm (Tubular Latch)=22(A)
• 24.0 x 57.5mm (Tubular Latch)=22(B)
• 26.0 x 56.5mm (Tubular Latch)=23(A)
• 26.0 x 57.5mm (Tubular Latch)=23(B)
• 22.2 x 128.5mm=20
• 22.2 x 155.0mm=1
• 22.5 x 152.5mm=2
• 25.4 x 121.0mm=3
• 26.0 x 134.0mm=5
• 25.4 x 153.0mm=7
• 25.4 x 165.5mm=9
• 25.4 x 177.0mm=10
• 26.0 x 139.0mm=21
• 26.0 x 162.0mm=12

Mortise Templates:

• 19 x 22mm (Tubular Latch)=J(A)
• 22 x 24mm (Tubular Latch)=J(B)
• 16 x 72mm=A
• 16 x 102mm=F
• 16 x 109mm=B
• 19 x 78mm=C
• 19 x 90mm=E
• 19 x 109mm=D
• 19 x 115mm=H
