Trend KWJ650 650mm Compact Worktop Jig
Product Code: TRE/KWJ650
Brand: Trend
In Offsite Stock - Delivery in 4 to 5 Days
£107.24 Inc. VAT
£89.36 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Trend Routing On-Site Jigs

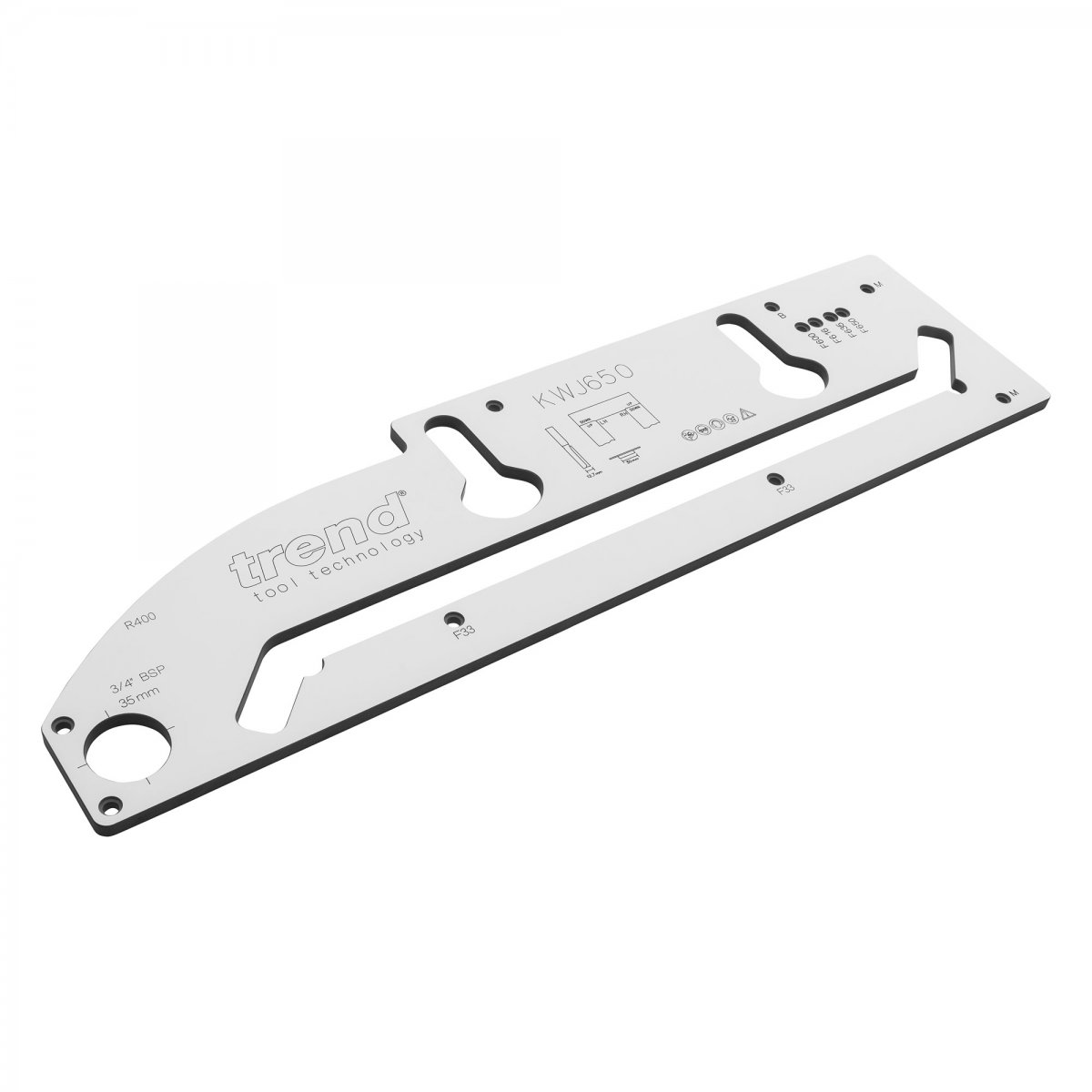

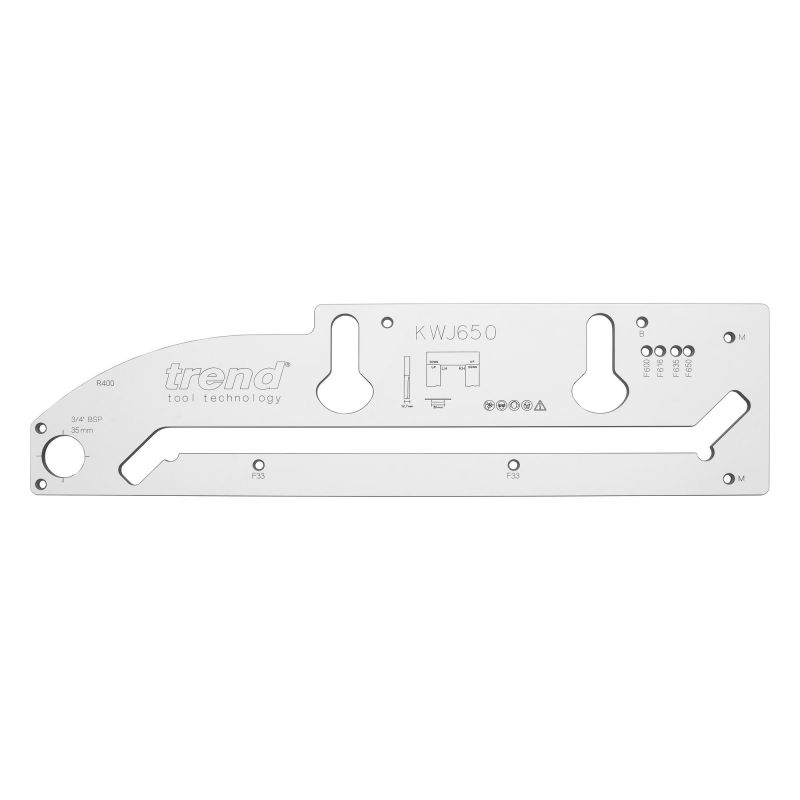

Kitchen Worktop Jig 650mm
Ref: KWJ650
Key Features

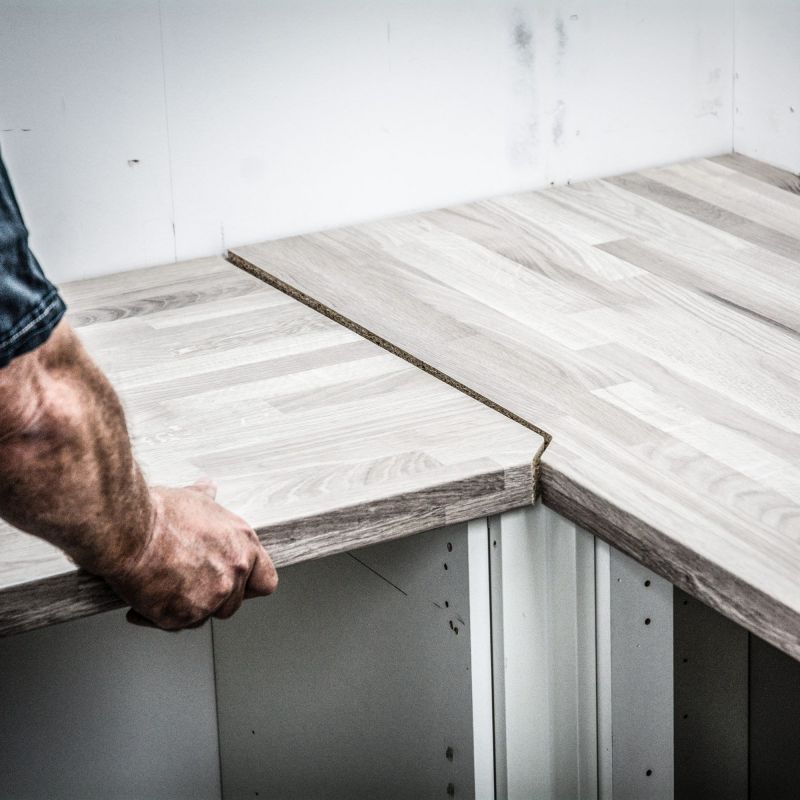

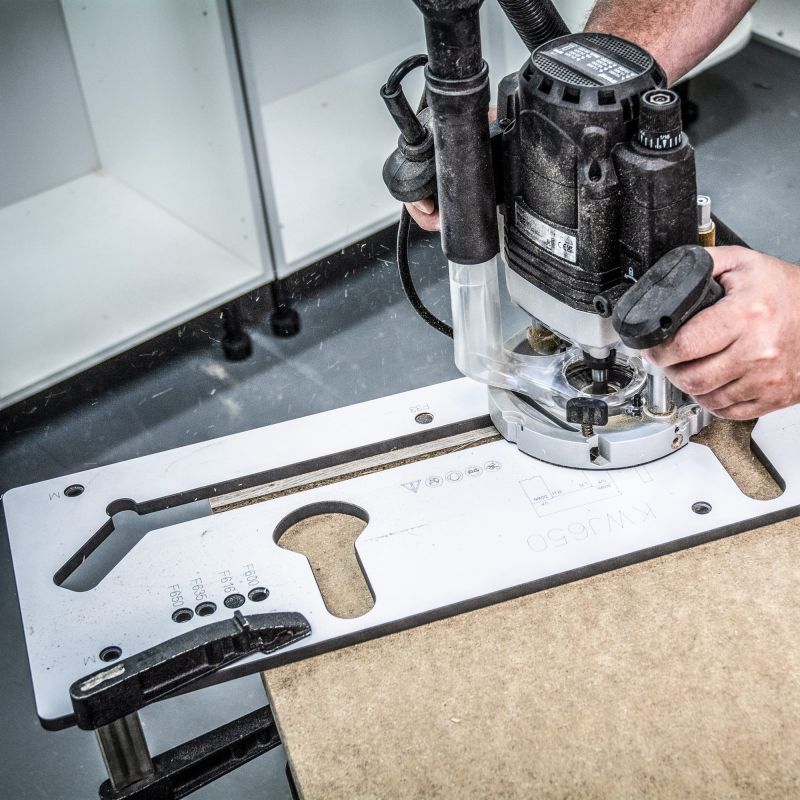

A worktop routing jig for creating mitre joints in laminated, timber and compact laminate surfaces.

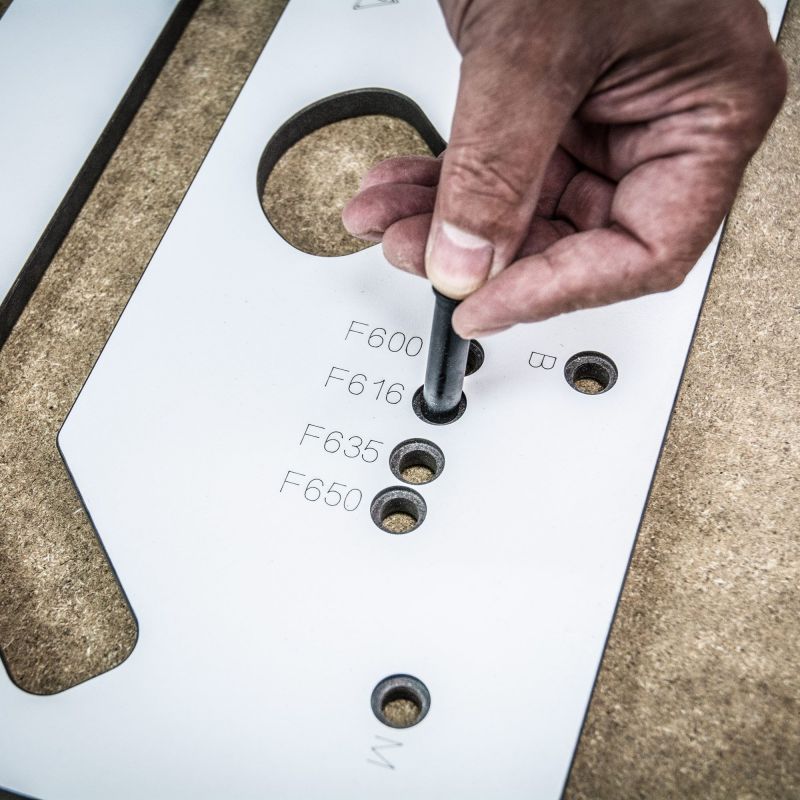

- Indexed Backsets for 600, 616, 635, and 650mm worktops allow the female joint to be setup quickly.
- 33mm Mitre Inset to suit all postformed, radiused and chamfered worktop materials.
- CNC-Machined Compact Grade HPL provides precision, strength and durability
- 400mm Radius for breakfast bar and peninsula trimming.
- Preset Connector Bolt Recesses accommodate standard 150mm worktop bolts.
- 35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.

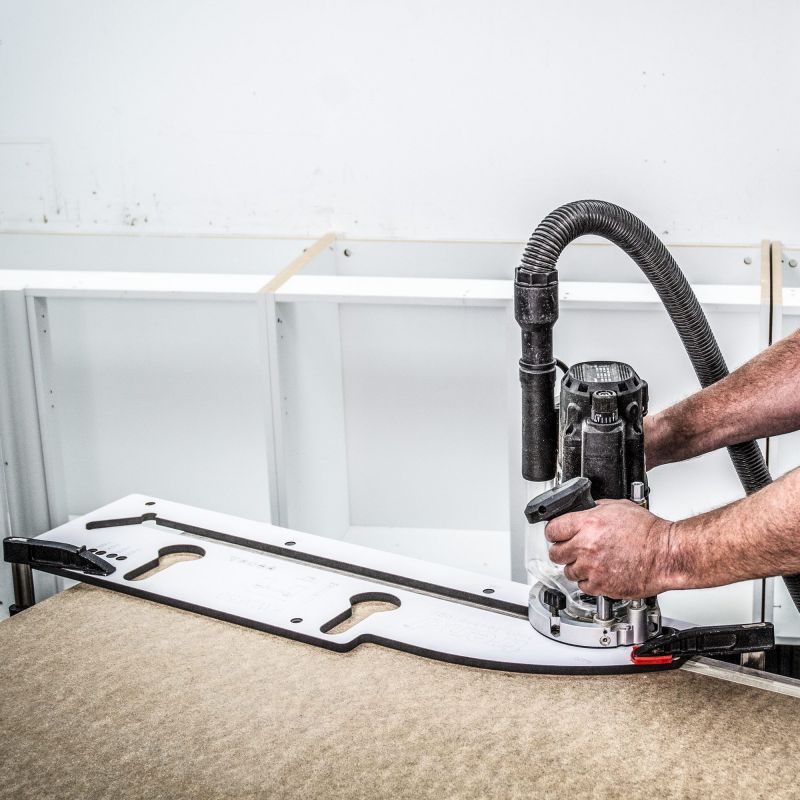

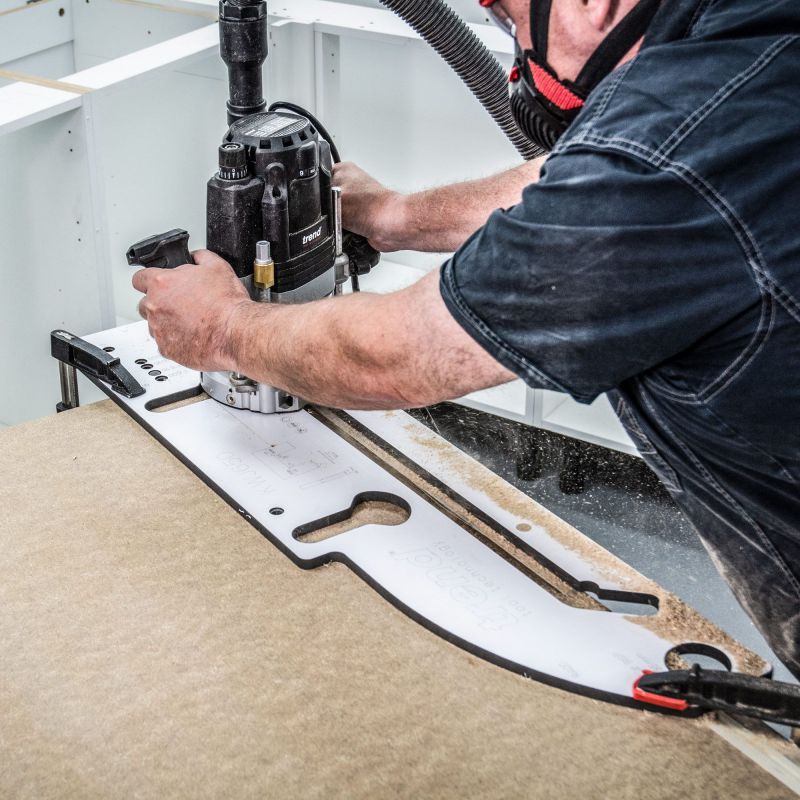

- Requires: ½”/12mm Plunge Router (50mm plunge depth), ½”/12mm Router Cutter (12.7mm cut diameter x 50mm cut length), 30mm Guide Bush, and 2 x clamps.
Items included

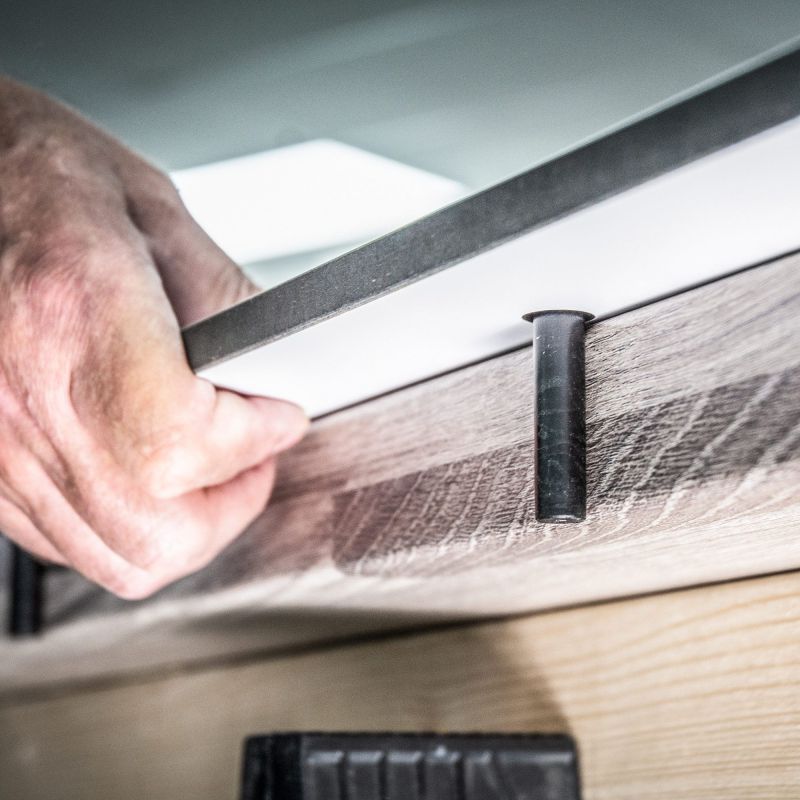

- 4 x Location Pins
Specification
- Length: 881 mm
- Width: 236 mm
- Thickness: 12 mm
- Weight: 3.3kg
- Female cut material width loss (inset): 33 mm
- Curved Peninsular Radius: 400mm
- Bolt recesses: 2
Requires:
- Guide bush: 30 mm
- Plunge router: 1/2-inch (min. 1300 watts)
- Cutter: 12.7 mm x 50 mm cut
- Clamps: Two
