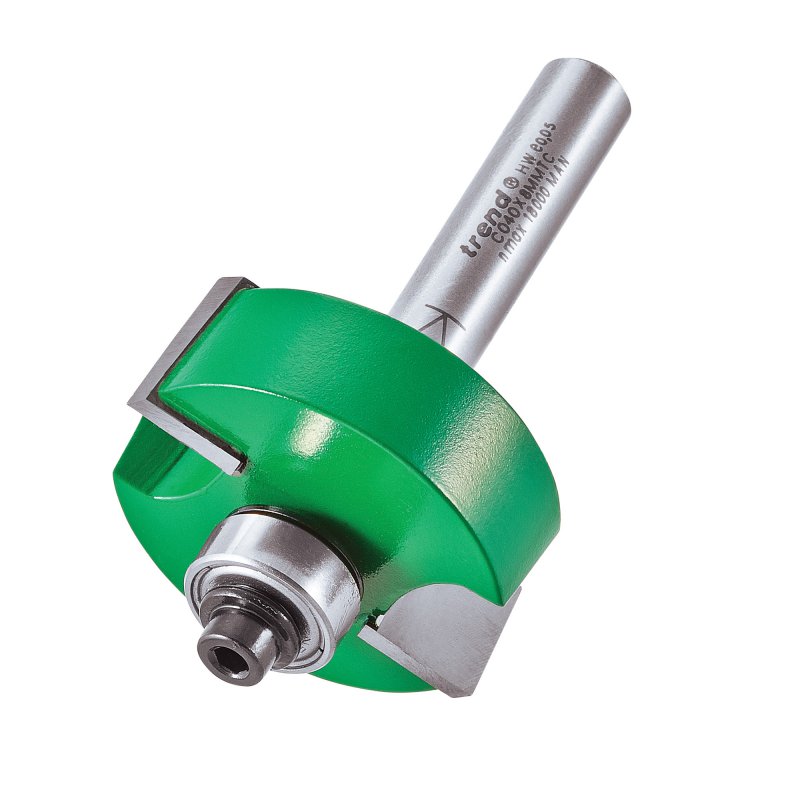

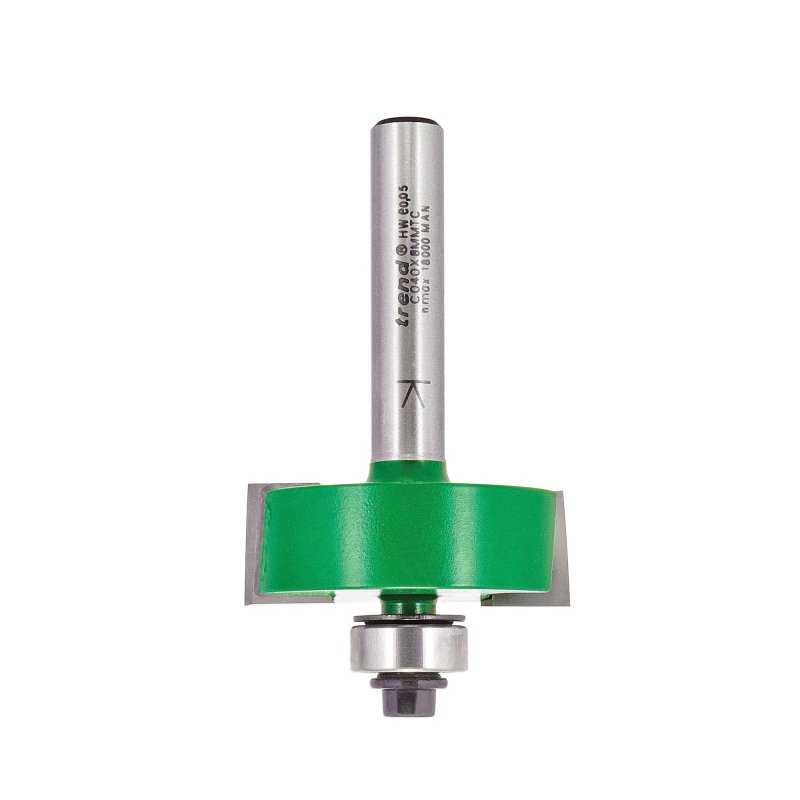

Trend C040X8MMTC CraftPro Guided Rebater Router Cutter 35mm Dia x 12.7mm Cut x 8mm Shank

TREND C040X1/4TC
CRAFT PRO ROUTER CUTTER
GUIDED REBATER 35.0MM DIA X 12.7MM CUT

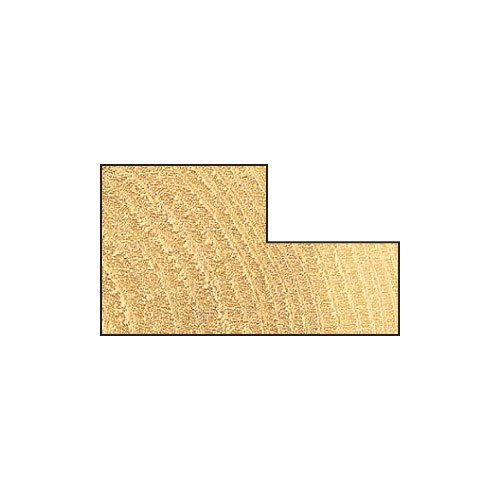

• These cutters are self-guiding and can be used to produce rebates, lap joints, tongues and rebated corners.
• When using bearing Ref. B95A make two passes when a full depth of cut is required.

• Shank Diameter: 8 mm
• Cutter Diameter Imperial (D): 1 3/8 inch
• Cutter Diameter Metric (D): 35 mm
• Cutting Length Imperial (C): 1/2 inch
• Cutting Length Metric (C): 12.7 mm
• Bearing Diameter Metric (B): 9.5 mm
• B2: 12.7 mm
• E: 11.1 mm
• E2: 12.7 mm
• Overall Length Metric: 63 mm
• Grade: TCT - Tungsten Carbide Tipped
