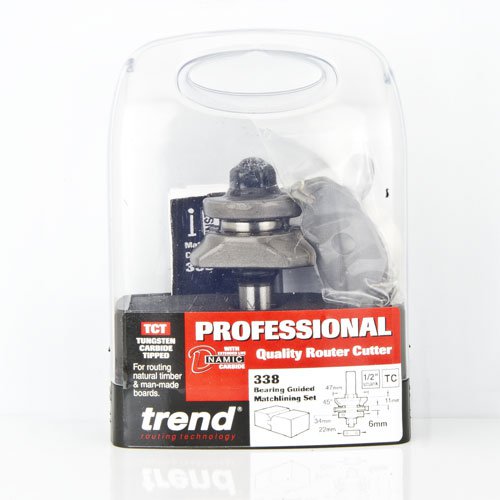

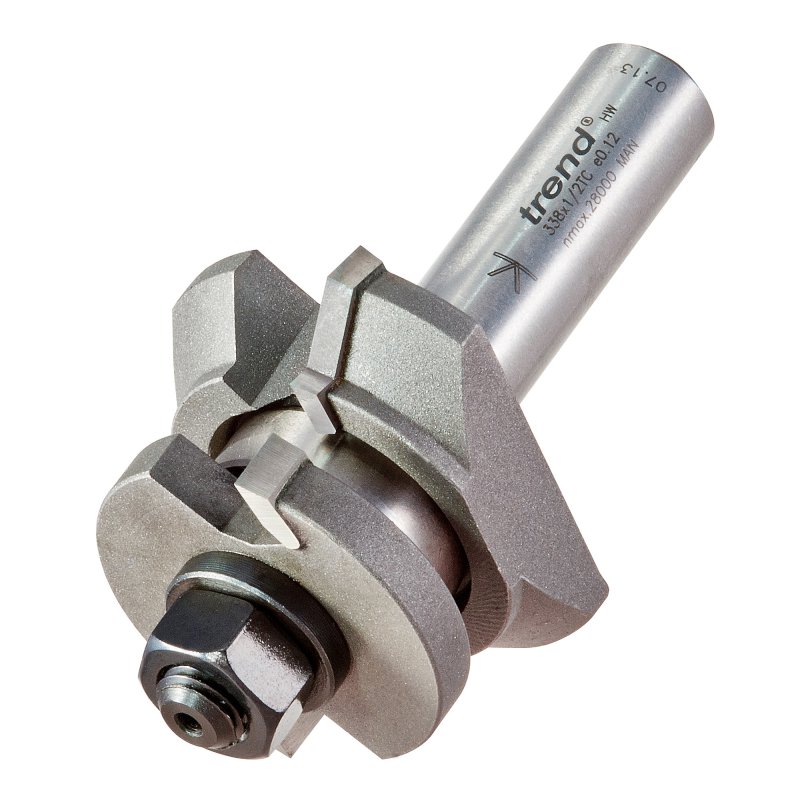

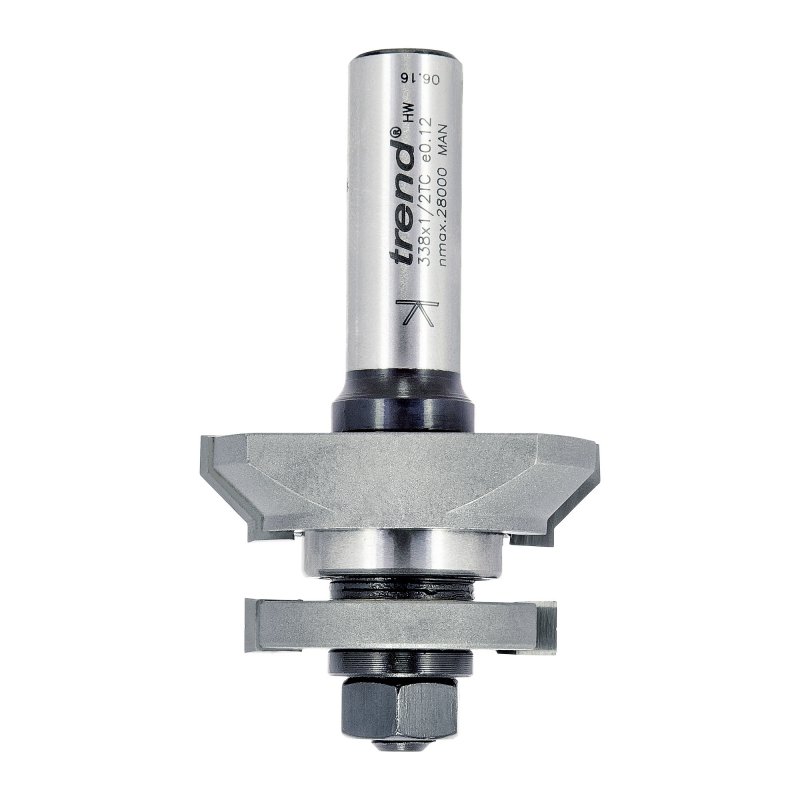

Trend 338X1/2TC Pro Guided Matchlining Router Cutter Set 6mm Tongue

Trend Professional Slotting & Grooving Cutters
Guided Matchlining Set - 6mm Tongue
Ref: 338X1/2TC

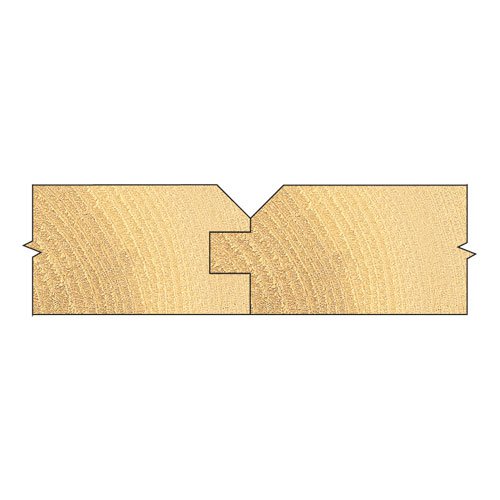

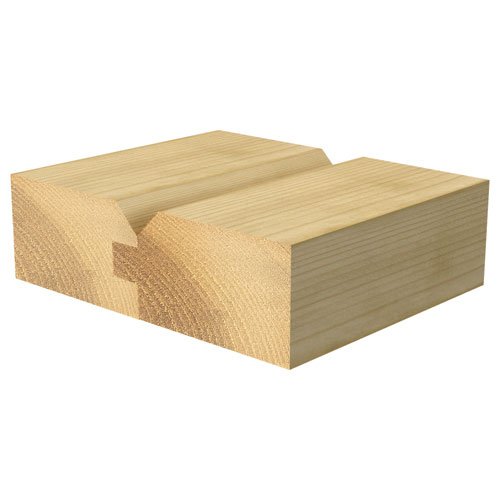

• A complete cutter set for producing matchlining

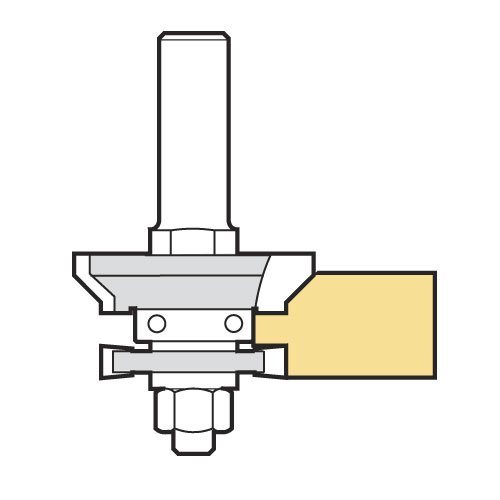

• Jointing parts are interchanged on the arbor to change the mode of the cutter
• Set Ref. 338 can be converted to Ref. 339, and vice-versa, by purchasing the respective groover

• D: 47 mm (metric diameter)
• C: 11 mm (metric cut length)
• C2: 6 mm (metric cut length)
• B: 34 mm (metric bearing diameter)
• B2: 22 mm (metric bearing diameter)
• OL: 76 mm (overall length)
• A: 45 degrees (angle)
• Shank Diameter: 1/2 inch
• Timber thickness min: 15 mm
• Timber thickness max: 19 mm
