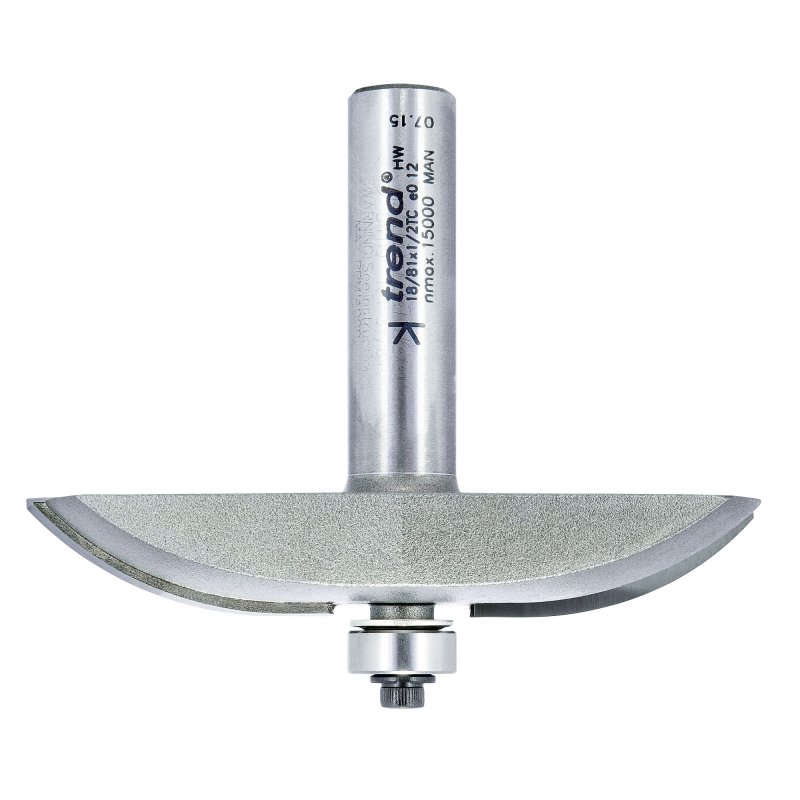

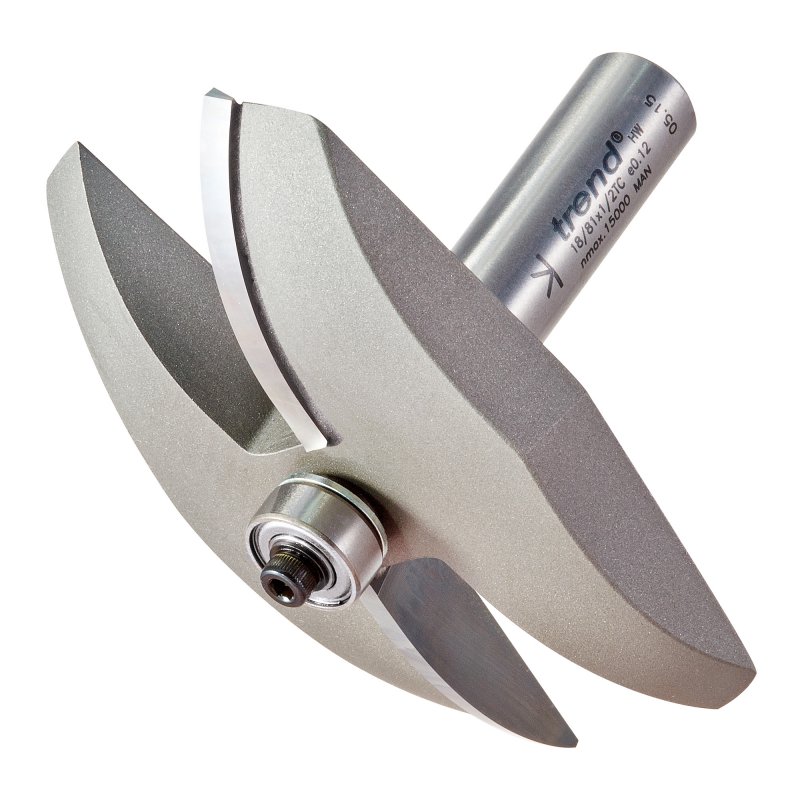

Trend 18/81X1/2TC Pro Guided Raised Panel Router Cutter 40mm radius x 1/2 shank

Trend Professional Raised Panel Router Cutters
Bearing Guided Large Radiused Panel Raiser - 40mm Radius
Ref: 18/81X1/2TC

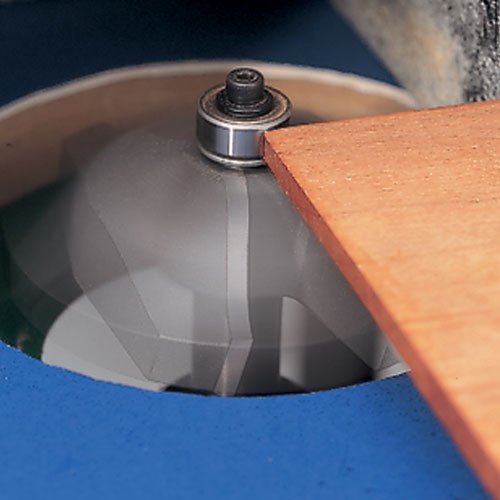

• Machining of traditional panels and frame doors, formerly done on spindle moulders, can now be performed with heavy duty routers mounted in fixed positions, either overhead or inverted
• These Raised Panel cutters run best at lower speeds and match our range of profile scribers
• All are suitable for use on natural timber and MDF
• 8mm hank tools are for use with medium and heavy duty routers only
• Suitable panel mould for use with Ref. PSC/40. Available as a set PDS/4

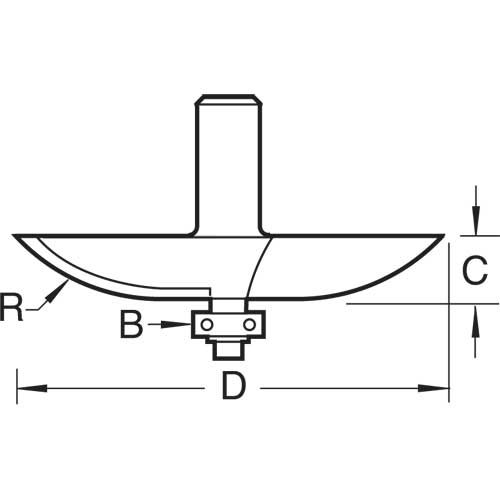

• D: 86 mm (metric diameter)
• C: 12.7 mm (metric cut length)
• B: 12.7 mm (metric bearing diameter)
• R: 40 mm (radius)
• OL: 71.5 mm (overall length)
• Shank Diameter: 1/2 inch
