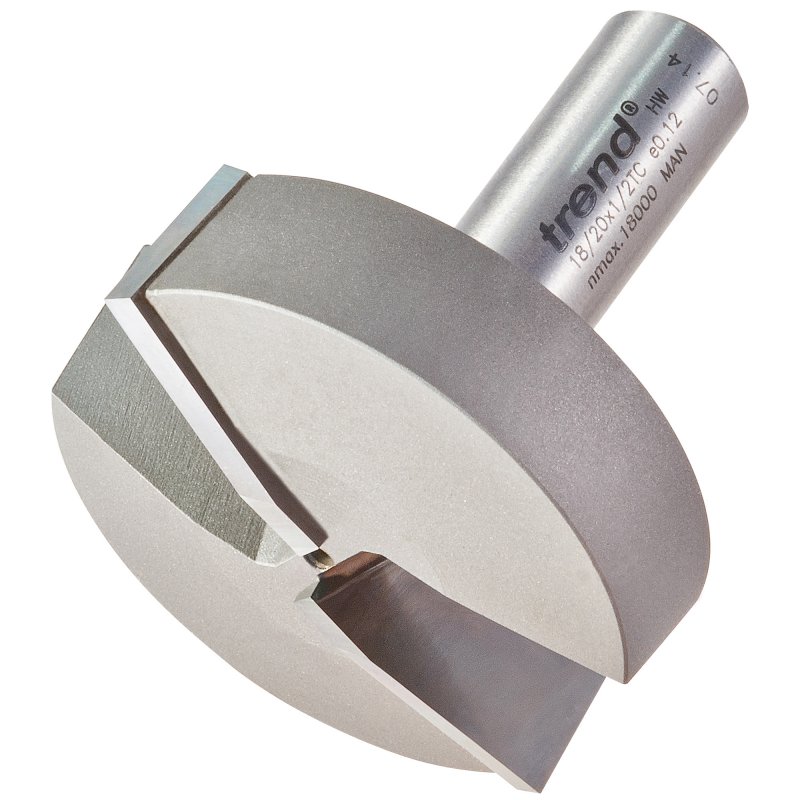

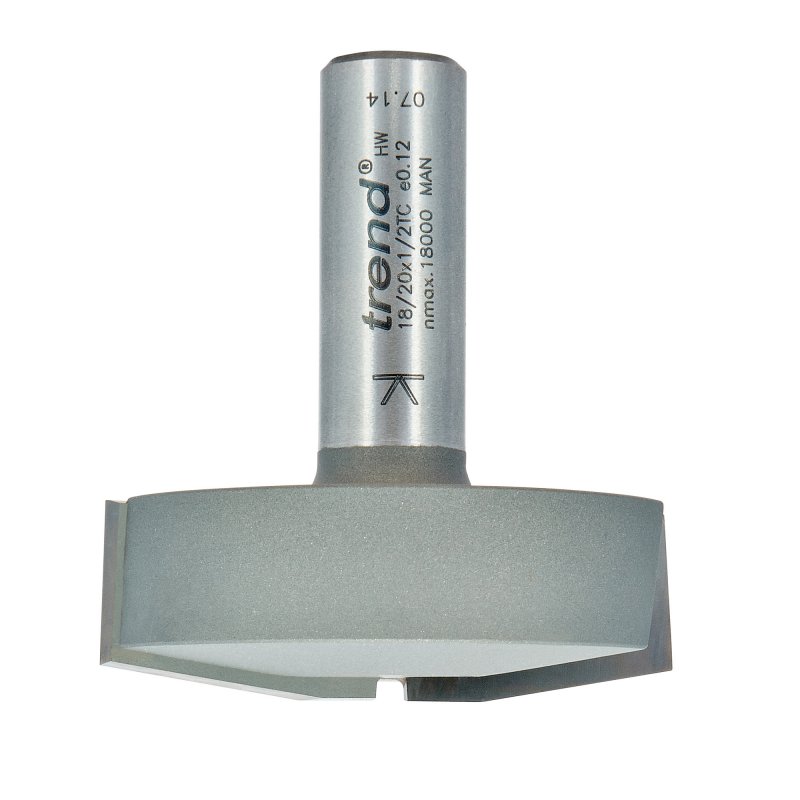

Trend 18/20X1/2TC Pro Bevel Panel Raiser Router Cutter 50mm dia x 10 deg x 1/2 shank

Trend Professional Raised Panel Router Cutters
18/20X1/2TC - Bevel Panel Raiser Cutter
10 Degrees x 50mm Diameter x 1/2" Shank

• This Raised Panel cutter runs best at lower speeds between 12,000 and 18,000 RPM
• Matches our range of profile scribers
• Suitable for use on natural timber and MDF

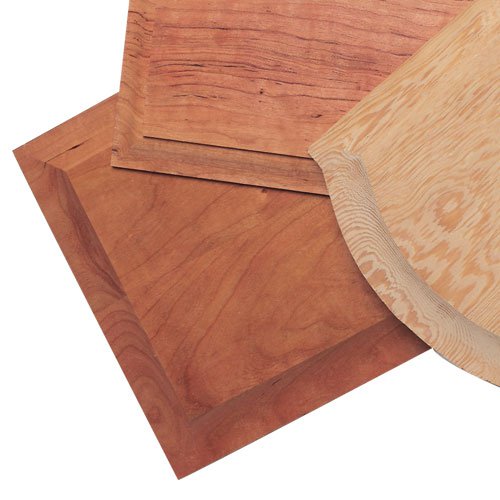

• When joining sections to produce solid wood panels, alternate the growth ring direction of adjacent boards to prevent cupping

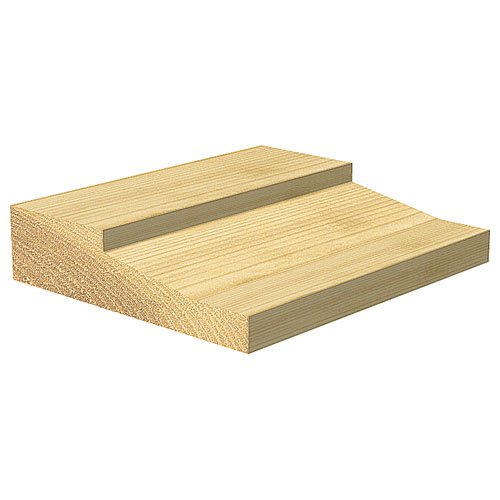

• When moulding the panel, cut across the end grain first
• Any break out will then be removed when cutting with the grain

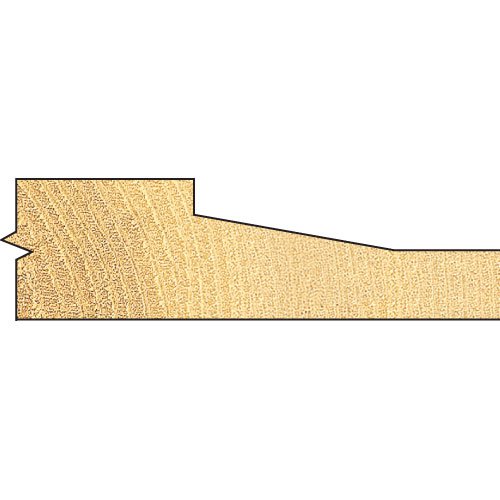

• Suitable panel mould for use with Ref. PSC/5, PSC/50

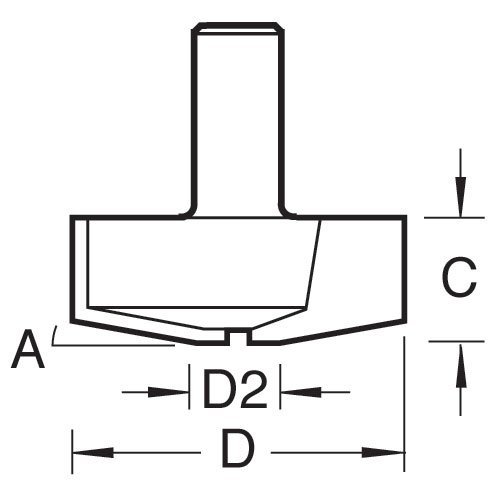

• D: 50 mm (metric diameter)
• D2: 16 mm (metric diameter)
• C: 17 mm (metric cut length)
• A: 10 degrees (angle)
• OL: 55.1 mm (overall length)
• Shank Diameter: 1/2 inch
