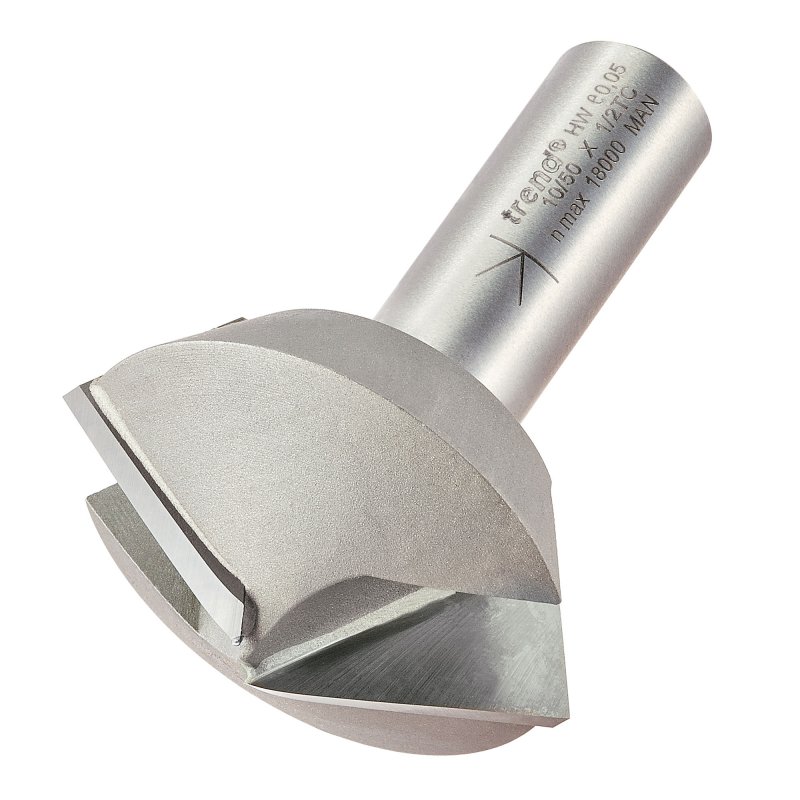

Trend 10/50X1/2TC Pro Birdsmouth Router Cutter 6 and 12 Sided - 30/60 Deg

Trend Professional Jointing Router Cutters
Birdsmouth Cutter 6 & 12 Sided 30/60 Degree
Ref: 10/50X1/2TC

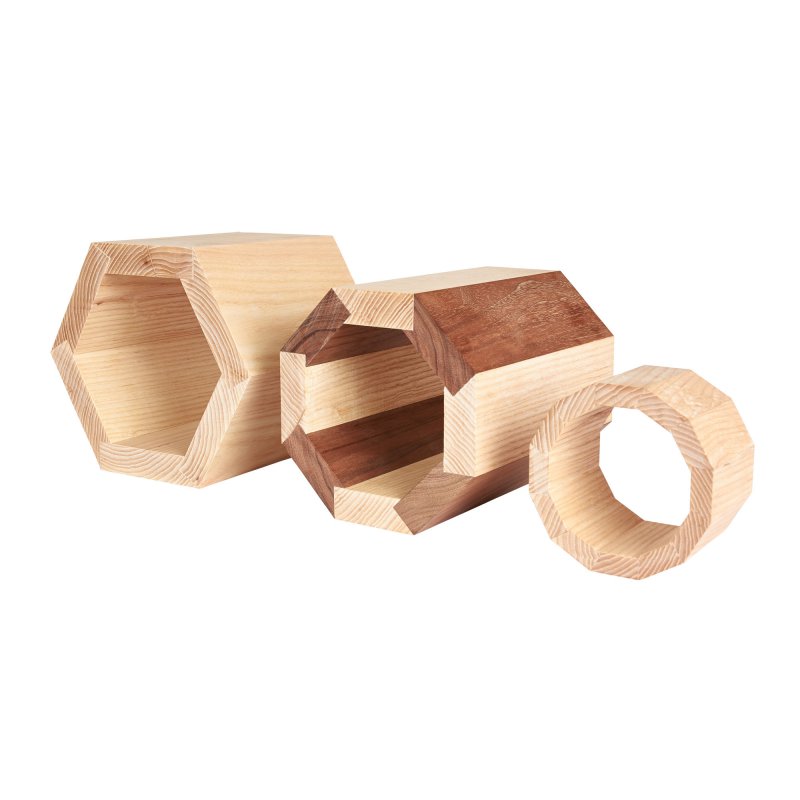

• To make round boxes, planters, barrels, or other multi-sided components
• One side of the component is machined with the cutter
• Fast and accurate joint creation on timber
• For use in a router table
• Notch created by cutter provides a larger glueing area for optimal strength
• Strips of wood are cut as staves and glued together, once dry a plane is used to make component round
• Ref. 10/50X1/2TC for 6-sided or 12-sided boxes for material 20mm or 12mm maximum thickness
• Ref. 10/51X1/2TC for 8-sided boxes for material 20mm maximum thickness

• D: 41 mm (metric diameter)
• C: 22 mm (metric cut length)
• A; 30/60 degrees (angle)
• OL: 56 mm (overall length)
• Shank Diameter: 1/2 inch
• Timber thickness max 6 sided: 20 mm
• Timber thickness max 12 sided: 12 mm
• For 6-sided box cut face up

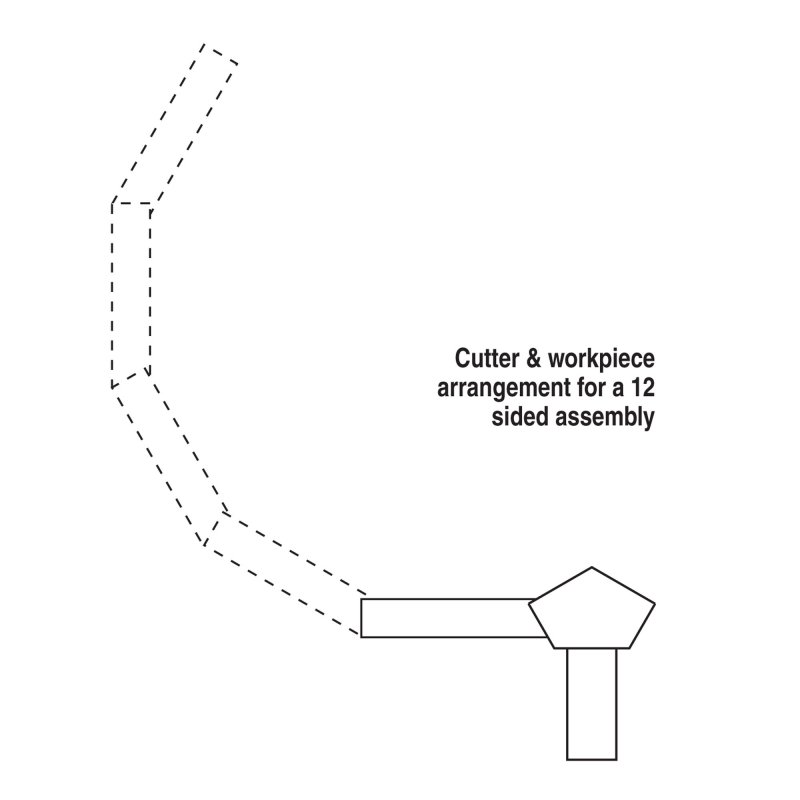

• For 12-sided box cut face down
