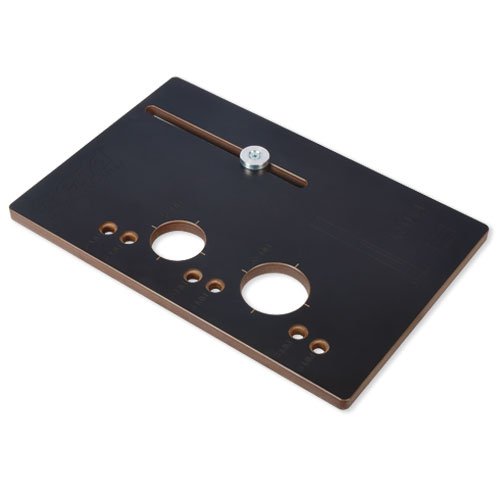

TREND TEMP/CDH/A TEMPLATE CABINET DOOR HINGE 35 & 26

Trend Router Templates
Template Cabinet Door Hinge 35 & 26mm
Ref: TEMP/CDH/A

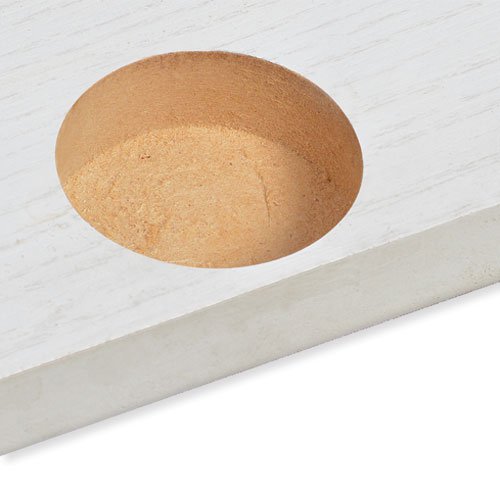

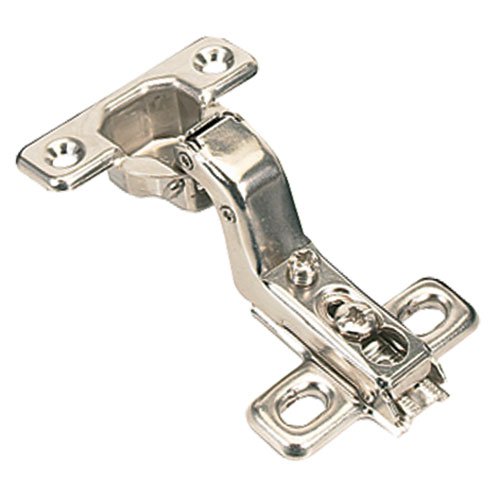

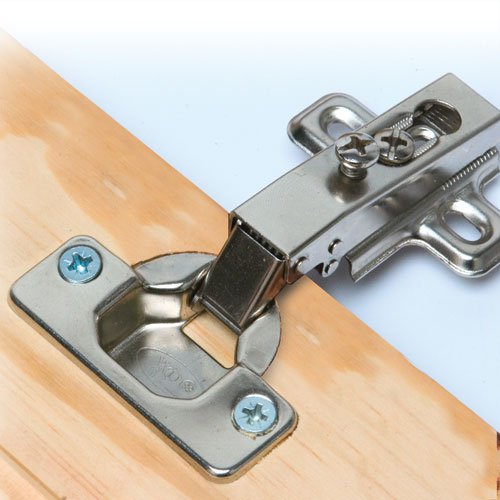

• A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge
• Cuts accurate recess for either 26mm or 35mm circular hinges
• Adjustable alloy edge guide for adjustment of recess position from top or bottom of door
• Removable alloy edge guide for middle hinge recess
• 3mm and 5mm location holes to accurateky position the recesses relatuve to the edge of the door
• Engraved centre sight lines
• Pin holes reversible for left hnd and right hand doors
• Made from hard wearing 12mm thick high pressure laminate

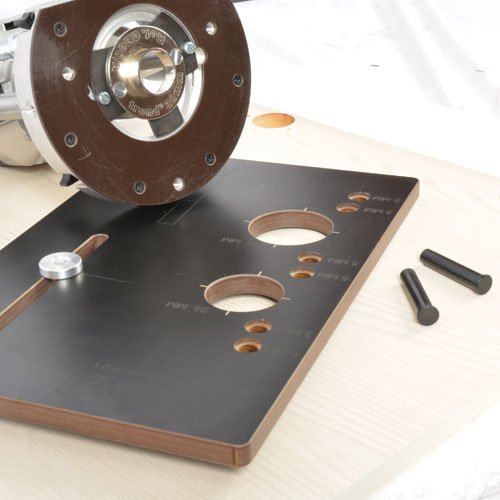

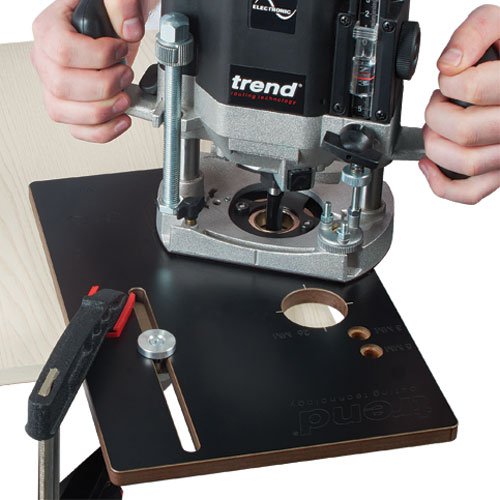

• Requires 12.7mm diameter cutter, 30mm guide bush and two 100mm throat F-clamps

• 1 x Sliding stop

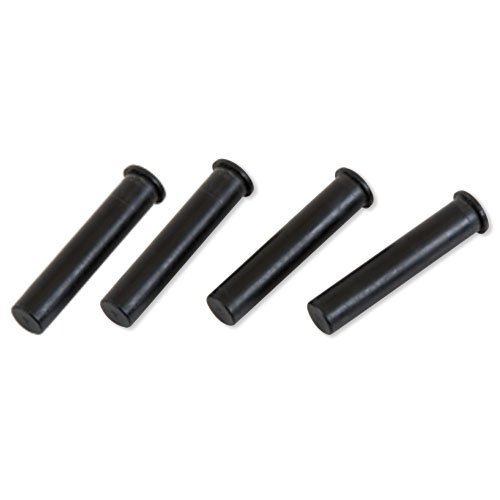

• 4 x ABS Plastic Pins

• ​Size: 355 mm x 320 mm x 12 mm
• Hinge dia: 26 mm and 35 mm
• Hole position range from top/bottom of door to centre of hinge
• 26 mm dia: 50 to 105mm*
• 35 mm dia: 50 to 190 mm*
• * Hinge centre normally positioned 100 mm from top/bottom of door
