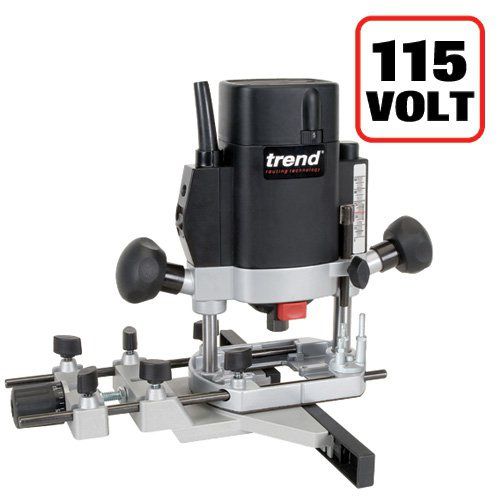

TREND T5 T5ELB 1000W 1/4" Collet Variable Speed Plunge Router 110v + 3yr Warranty

Trend Variable Speed 1/4" Plunge Router T5ELB

Electronic full wave variable control of spindle speed under load for a fine finish on all types of material - 110volt

• Soft-start feature eliminates sudden movement of machine on start up.
• Spindle lock & hex collet nut allows easy cutter changes.
• Precision machined one piece multi-slit collet with combined nut.
• Compact design & low weight make it easy to use especially for intricate work.
• Adjustable twin rod side-fence for guiding along a straight edge.
• New features include: increased power, soft grip handles, low profile dust spout
  and ergonomic spindle lock.
• Three year extended warranty with online registration (UK and Eire only)

• Rating: Professional / Trade
• Plunge stroke: 0-50 mm
• Power input: 1000 watt
• Power ampage: 9.5 amp
• Standard collet dia: 1/4"
• No load speeds: 9-27000 rpm
• Dust spout size ID: 35 mm
• Guide bush dia: supplied 20 mm
• Rod diameter: 80 mm
• Rod length: 300mm
• Rod centres: 84 mm
• Cutter dia. max: 40 mm
• Other collet dia: none only 1/4"
• Weight; 3.3kg
• Voltage: 110 volt
• Sound pressure Lpa: 81.0 dB(A)1
• Acoustic pressure Lwa: 94.01 dB(A)2
• Hand arm vibration: <2.5 m/s2

• 1 x 1/4" Collet
• 1 X 20mm Guide Bush
• 1 X 35mm Clip-in Dust Spout
• 1 X Side-fence with Micro Adjuster
• 1 X Beam Trammel Attachment

Trend T5 Mk1 / Mk2 Owners Manual
