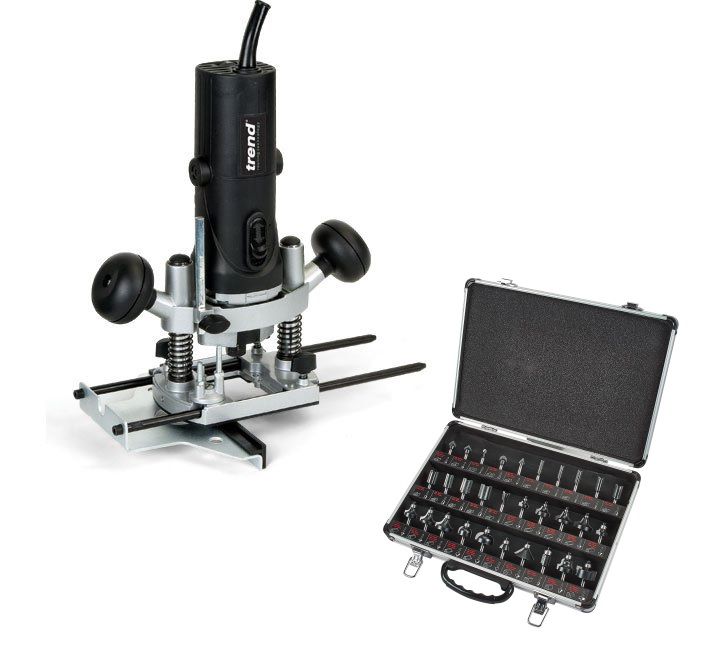

TREND T4EK 1/4 Variable Speed Router with 30 Piece Cutter Set

TREND T4EK 1/4 Variable Speed Router with 30 Piece Cutter Set

Package includes:

• 1 x Trend T4EK - 850W 1/4" Variable Speed Plunge Router 240V with Kitbox
• 1 x TREND SET/SS31X1/4TC 30pc Router Cutter / Bit Starter Set

Trend T4EK - 850W 1/4" Variable Speed Plunge Router 240V with Kitbox

Lightweight, compact plunge router, with a removable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.

• Removable Motor Body can be easily detached from the base for hand carving and die grinding applications.
• Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
• 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Side Fence for edge rebating, grooving and moulding applications.
• 1/4", 6mm & 8mm Collets are supplied for maximum versatility.
• Plunge Depth Limiter is easy to set and prevents over-cutting.
• 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
• Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
• Spindle Lock for quick and easy cutter changes.
• Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.
• Moulded Carry Case provides safe storage for router and accessories.
• 3 year warranty – Online registration required

• Rating - Hobbyist / Light Trade
• Plunge stroke - 0-35 mm
• Power input - 850 watts
• Power ampage - 3.7 amp
• Standard collet dia. - 1/4", 6 mm & 8 mm
• Dust spout size ID - 34 mm
• Guide bush dia. - 16 mm
• No load speeds - 11500 - 32000 rpm
• Weight - 2.8 kg
• Cutter dia. max - 30 mm
• Rod diameter - 8 mm
• Rod centres - 84 mm
• Voltage - 230 volts
• Sound pressure Lpa - 91.1 dB(A)1
• Acoustic pressure Lwa - 104.1 dB(A)2
• Hand arm vibration - <3.0 m/s2

30 Piece Starter Set 1/4" Shank
Ref: SET/SS31X1/4TC

• This thirty-piece cutter set contains a range of popular Tungsten Carbide Tipped cutters for a variety of applications
• 1/4-inch shank diameter
• For softwood, hardwood, chipboard, plywood and MDF
• Excellent value for money
• Set includes fifteen guided and fifteen unguided router cutters
• Supplied in aluminium carry case

• 1 x Straight 5mm x 12mm cut
• 1 x Straight 6mm x 20mm cut
• 1 x Straight 8mm x 20mm cut
• 1 x Straight 10mm x 20mm cut
• 1 x Straight 12mm x 20mm cut
• 1 x Straight 14mm x 20mm cut
• 1 x Straight 16mm x 20mm cut
• 1 x Straight 18mm x 20mm cut
• 1 x Straight 20mm x 20mm cut
• 1 x 45 Degree v groove x 12.7mm dia
• 1 x 45 Degree v groove x 9.5mm dia
• 1 x Dovetail 104 deg x 12.7mm dia
• 2 x Core box R3.2mm & R6.35mm
• 1 x Guided trimmer 12.7mm x 13mm
• 1 x Guided 45 degree chamfer 31.5mm dia
• 1 x Guided 25 degree chamfer 16mm dia
• 4 x Guided round over R3.2, R6.3mm, R7.9mm & R9.5mm
• 4 x Guided ovolo R3.2mm, R6.3mm, R7.9mm & R9.5mm
• 2 x Guided cove R6.3mm & 9.5mm
• 1 x Classic panel 12.7mm dia
• 1 x Guided roman ogee R4mm x 25mm dia
• 1 x Guided rebater 9.5mm x 28.6mm dia

• Shank Diameter: 1/4 inch
