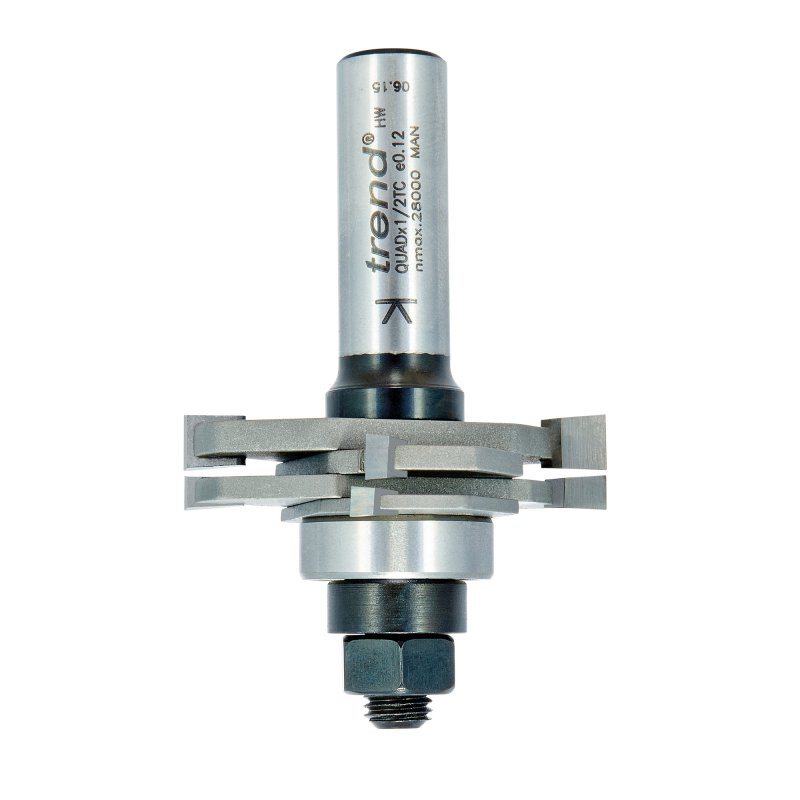

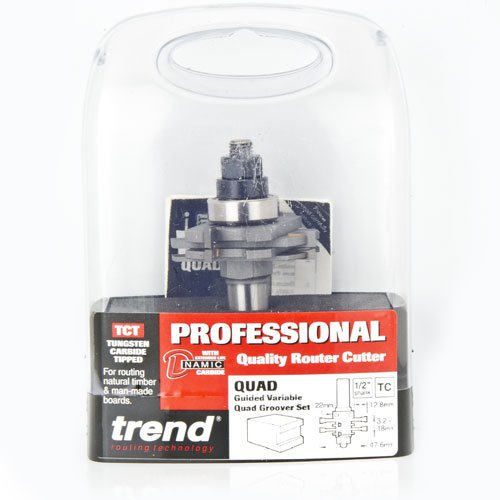

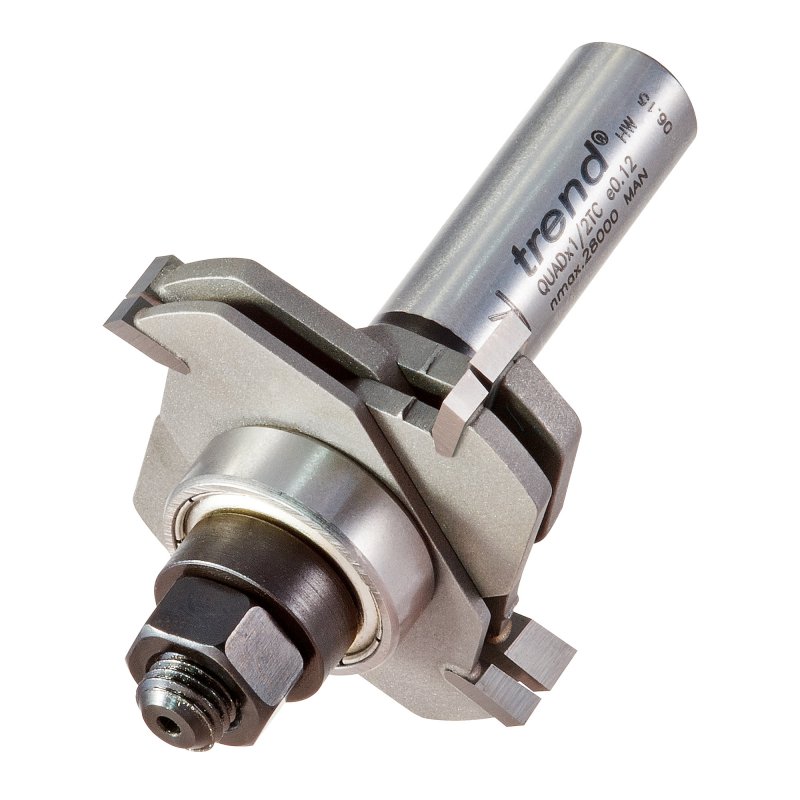

TREND QUADX1/2TC GUIDED VARIABLE QUAD GROOVER SET

Trend Professional Slotting & Grooving Cutters
Guided Variable Quad Groover Set
Ref: QUADX1/2TC

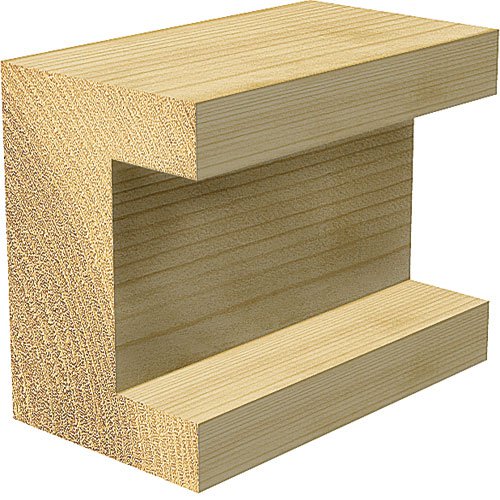

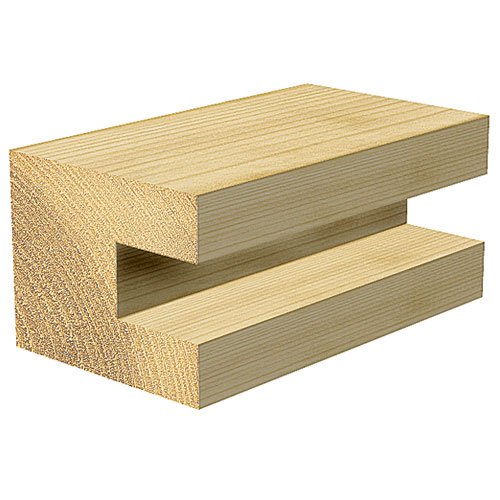

• This versatile 1/2 inch shank groover set offers grooving widths of 3.2mm, 4.0mm, 4.8mm and 6.3mm
• It is infiniteley variable from 6.6mm to 18mm in 0.1mm increments

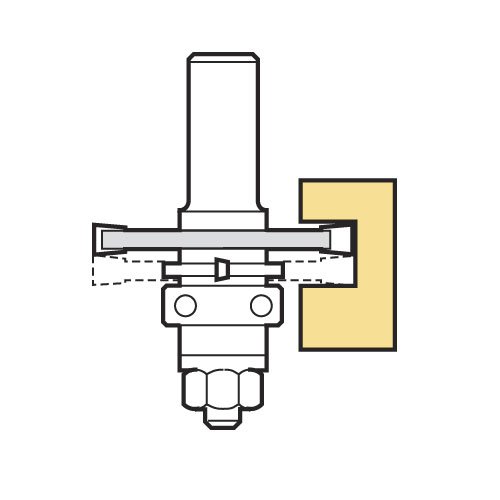

• A jointing facility using the bearing is also possible
• Set comprises of four 2 wing groovers with 7.94mm (5/16 inch) bore and an arbor which may be used singly or together to produce a wide range of groove widths
• One ball bearing comes as standard

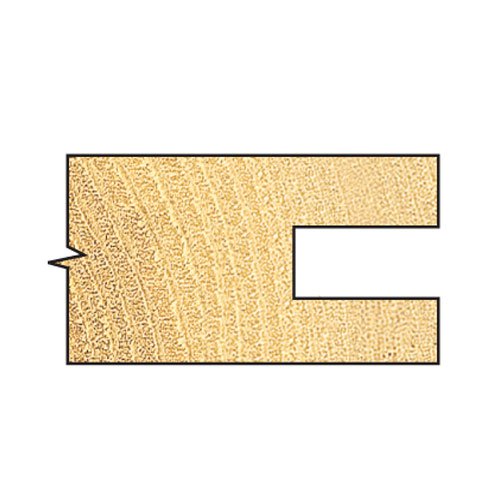

• This set can also be used to tongue and groove 9mm to 22mm board

Items included:

• 4 x 2 Wing groovers
• 1 x Arbor
• 1 x Bearing

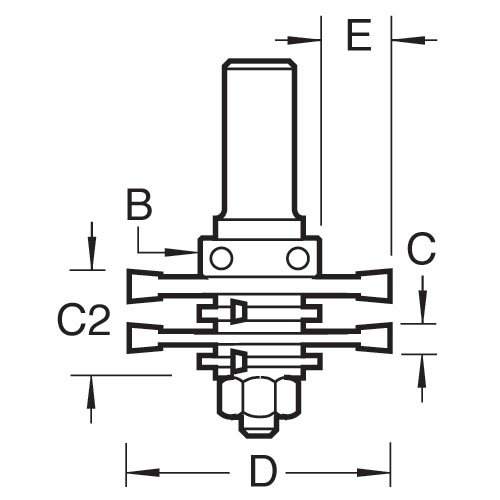

• D: 47.6 mm (metric diameter)
• C2: 3.2 to 18 mm (metric cut length)
• B: 22 mm (metric bearing diameter)
• E: 12.8 mm
• OL: 76 mm (overall length)
• Shank Diameter: 1/2 inch
• SP-QUAD/18: 3.2 mm
• SP-QUAD/532: 4 mm
• SP-QUAD/316: 4.8 mm
• SP-QUAD/14: 6.3 mm

Trend Quad Slotting Cutter Set Instructions
