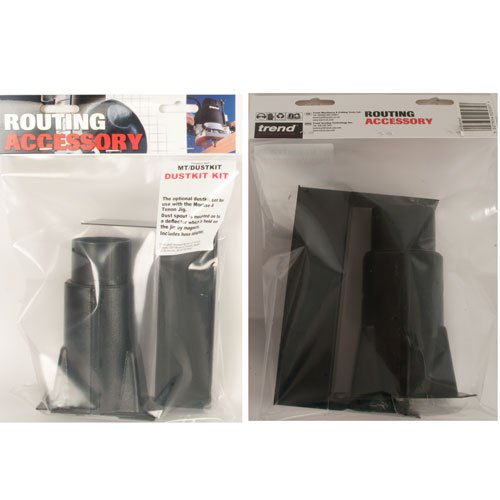

TREND MT/DUSTKIT MT JIG DUST KIT

Trend Routing Workshop Jigs
Mortise and Tenon Jig - MT/JIG Dust Kit
Ref: MT/DUSTKIT

• The optional dust kit set for use with the mortise & tenon jig
• Dust spout is mounted on to a deflector which is held on the jig by magnets
• Includes hose adaptor ref CRT/3 that will accept a 39mm outside diameter hose ref CRT/4
• Three part adaptor has an anti-kink design and can be removed from the hose

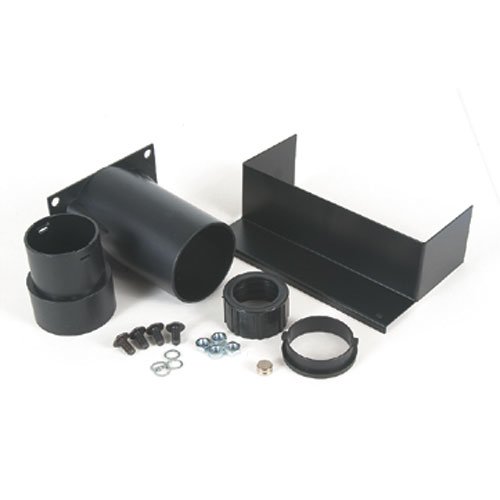

Items included

• 1 x Deflector plate
• 1 x Spout
• 1 x Hose adaptor
• 2 x Magnets

• Dust spout aperture: 58 mm (2-1/4 inch)
• Adaptor OD: 58 mm (2-1/4 inch)
• Adaptor ID: 35 mm (for 39 mm OD hose)
