TREND Corner Chisel & Router Cutter Package for Hinge Jig TR12 +C/CHISEL
Product Code: TRETR12/C/CHISEL-PK
Brand: Trend
In Stock
£34.38 Inc. VAT
£28.65 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Trend Corner Chisel
and Hinge Jig Router Cutter
Package
Trend Corner Chisel
Hinge Corner Chisel for Hinge Jig
Ref: C/CHISEL

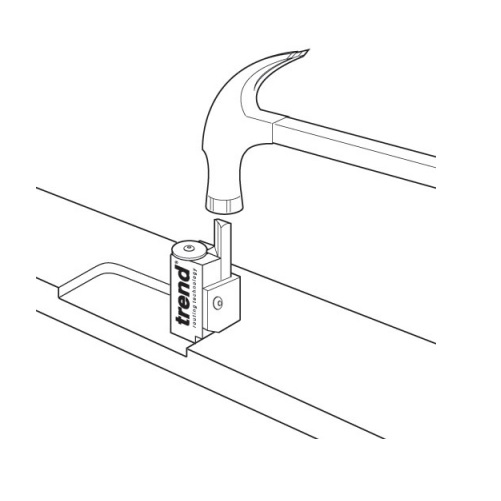

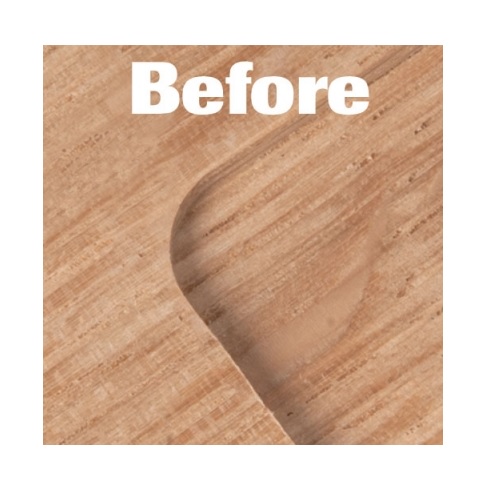

Allows the rounded corners left by a router cutter to be squared off to enable the hinges to be fitted.
Requires the use of a hammer
Key Features
- Ideal for squaring hinge recesses in door frames and door edges, as well as lock faceplates.
- Spring loaded high speed steel (HSS) anvil for a sharp cut and long life.
- Light weight aluminium body design.
- Can be used with the Trend Hinge Jig.
- Can be resharpened.
Specification
- Length: 70mm
- Width: 29mm
- Weight: 100g
Trend Trade Hinge Jig Router Cutter
TR12 x 1/4 TC
Suitable for Trend Hinge Jigs
Main areas of use
- Designed for use on the Trend Hinge Jig
- Suitable for a wide range of applications such as engraving, grooving, rebating and shallow mortising.
- Use on softwoods, hardwoods, MDF, plywood and chipboard.
- All cutters have a bottom cut feature.
Specification
- D: 15/32 inch
- D: 12 mm
- C: 19 mm
- C: 3/4 inch
- OL: 71 mm
- Shank Diameter: 1/4 inch
- Shank Diameter: 6.35 mm
- Cutter Diameter Imperial: 15/32 inch
- Cutter Diameter Metric: 12 mm
- Cutting Length Imperial: 3/4"
- Cuting Length Metric: 19 mm
- Overall Length Metric: 71 mm

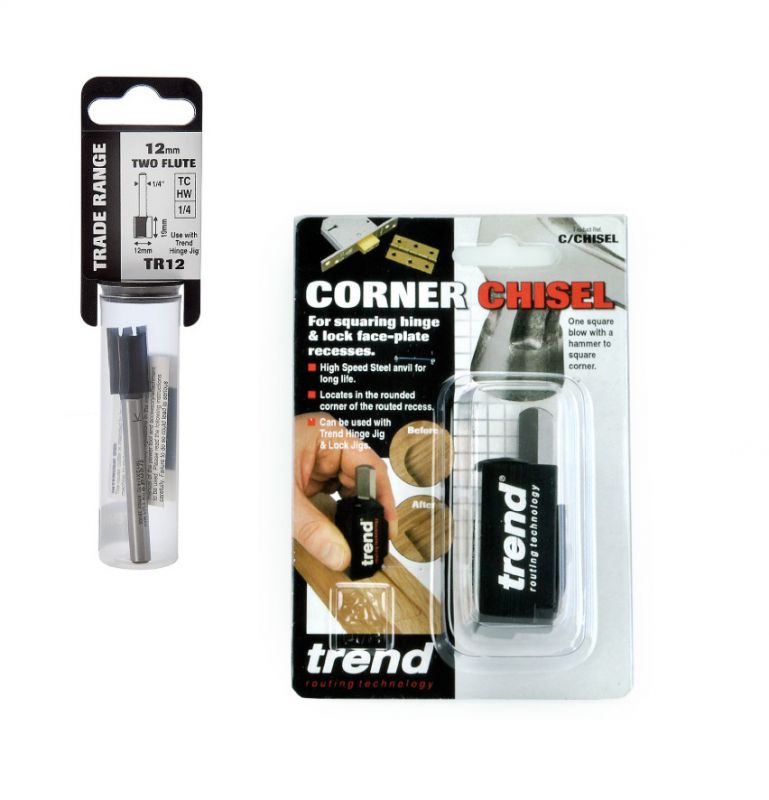

Items Included
;)
1 X TREND CORNER CHISEL C/CHISEL for Hinge Jig
;)
1 X TREND TR12x1/4TC Hinge Jig Router Cutter Two Flute 12.0mm dia x 19.0mm Cut - Ex LONG 70.0MM O/L
