TREND CRT/MK3 CRAFTSMAN R/TABLE MK3 240V

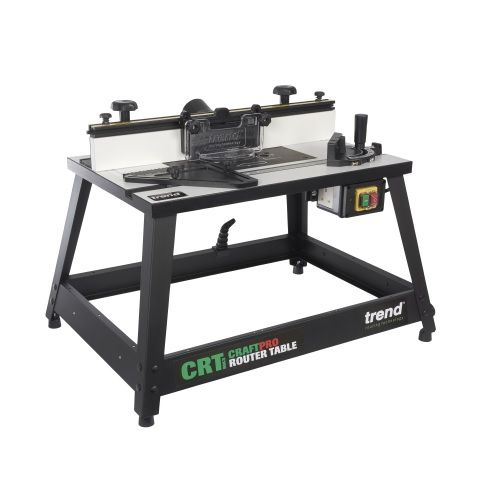

Trend Craft Pro Router Table for Joinery, Furniture, Shaping and Moulding Applications - (Ref: CRT/MK3)

The CraftPro Router Table will suit the craftsman & woodworking enthusiast. It is packed with the necessary features to maximise the versatility of all popular portable routers.

• Large laminated MDF table.
• Quick release aluminium extrusion back fence with sliding MDF cheeks.
• Removable 6.35mm thick aluminium insert plate with 98mm diameter aperture, pre drilled for Trend TBC routers and T11 routers.
• T11 router Quick Raiser and Quick Release facility.
• High back fence with fully adjustable guard assembly.
• Fully adjustable side finger pressure.
• Full perimeter leg stand with adjustable feet.
• Two insert rings 31.8mm and 67.5mm diameter to reduce table aperture.
• Lead on pin for bearing guided curved work.
• Edge planing facility on back fence of 1.4mm and 2.4mm.
• Cable management clips.
• No volt release switch.
• Mitre fence with zeroing and spelch block facility.
• Bench fixing brackets.
• Router not included.

• 6 x Insert rings
• 1 x No-volt release switch
• 1 x Side pressure
• 1 x Top pressure
• 1 x Mitre fence
• 1 x Lead-on pin
• 1 x Safety guard
• 1 x Pushstick

• Rating: Craftsman
• Table top size: 610x405x26mm
• Bench height: 410mm
• Router cutter aperture: 98mm
• Max cutter dia: 86mm
• Insert ring sizes: 31.8mm, 67.5mm
• Backfence height: 68mm
• Dust spout aperture: 57mm
• Edge planing up to: 1.4 & 2.4mm
• Weight: 13.6kg
• Voltage: 240v
• Not intended for continuous production or production line use.

Trend CRT/MK3 Router Table Owners Manual
