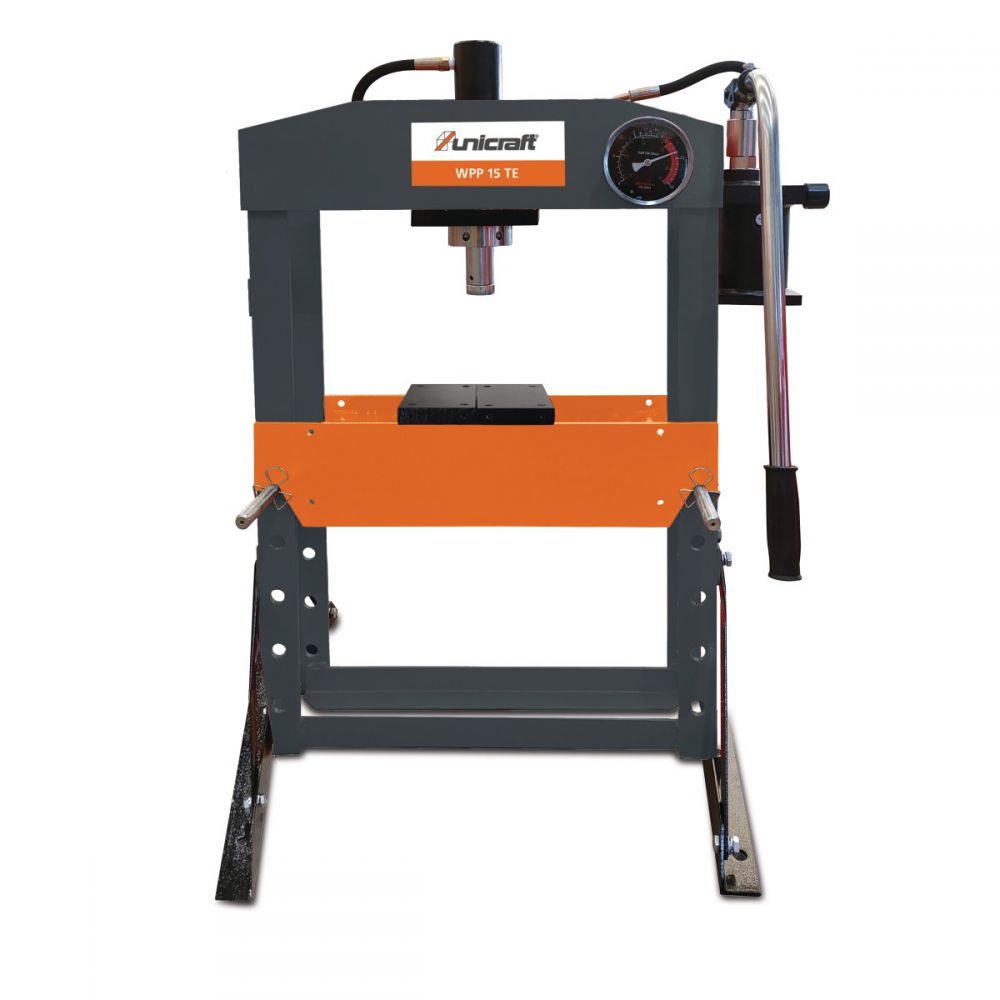

Sturmer Unicraft WPP 15 TE Hydraulic Workshop Press

Sturmer Unicraft WPP 15 TE Hydraulic Workshop Press

ref: 6300015

• WPP 15 TE Hydraulic workshop press + 15T capacity + integrated return spring + 160mm piston stroke + pressure gauge
• Ideal for versatile use in crafts and repairs in schools, training workshops, garages, workshops, agriculture, forestry and horticulture
• Press cylinder with integrated return spring
• Display of the pressure via pressure gauge

• Pressure force: 15 t
• Piston stroke: 160 mm
• Piston travel: 169 mm
• VPE: 1

Dimensions and weights

• Diameter piston rod: 43 mm
• Clear width: 500 mm
• Clear height min.: 157 mm
• Clear height max.: 457 mm
• Hole spacing for table height adjustment: 75 mm
• Frame depth: 120 mm
• Width/depth of machine feet: 560 mm
• Length approx.: 700 mm
• Width/depth approx.: 540 mm
• Height approx.: 965 mm
• Weight approx.: 75.5 kg

Unicraft WPP 15 TE Workshop Press Manual
