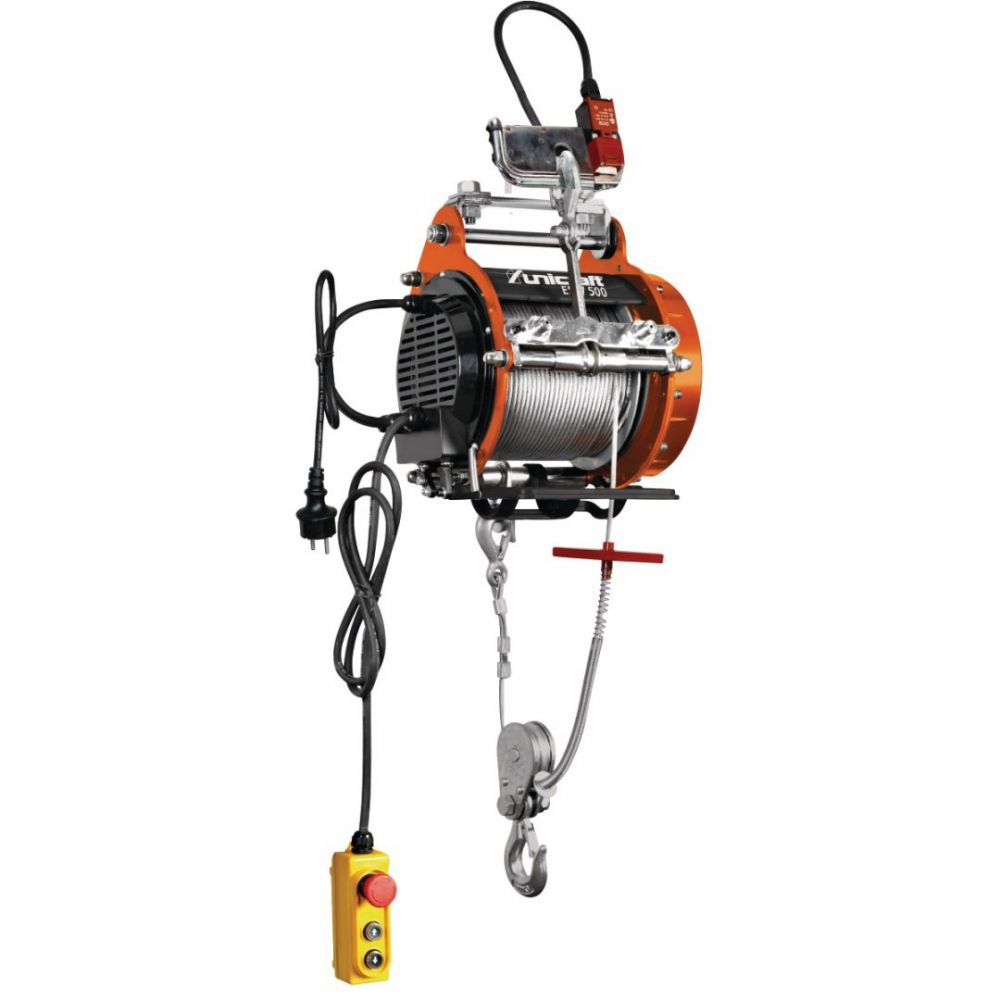

Sturmer Unicraft ESW 500 Electric Winch Hoist - 500kg Max Lift 230v

X
Product Code: STU/6199500
Brand: Stuermer
Low Stock - Contact Us For Availability
£419.99 Inc. VAT
£349.99 Exc. VAT
✗ COLLECTION
DELIVERY
Please call to check stock availability for larger quantities
Qty
Check out our Fair Deal on Delivery Promise
Stuermer
Special

Sturmer Unicraft

ESW 500 Electric Winch Hoist - 500kg Max Lift 230v

ref: 6199500



Key Features

  • Unique, automatic cable guidance prevents dirt and crushing and thus increases the service life of the steel cable
  •  New storage increases the life of the engine
  •  With quick coupling for immediate use without complex assembly
  •  By a pulley doubled the lifting power



Technical details

  • Control unit cable length: 5 m
  • Lifting force without deflection pulley: 250 kg
  • Lifting force with deflection pulley: 500 kg
  • Stroke without deflection pulley: 30 m
  • Stroke with deflection pulley: 15 m
  • Max. lifting speed without deflection pulley: 8 m/min
  • Max. lifting speed with deflection pulley: 4 m/min
  • VPE: 1

Dimensions and weights

  • Cable diameter: 4 mm
  • Length approx.: 310 mm
  • Width/depth approx.: 330 mm
  • Height approx.: 440 mm
  • Weight approx.: 30 kg

Electrical Data

  • Main motor: 1 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz



Unicraft ESW 500 Hoist Manual
