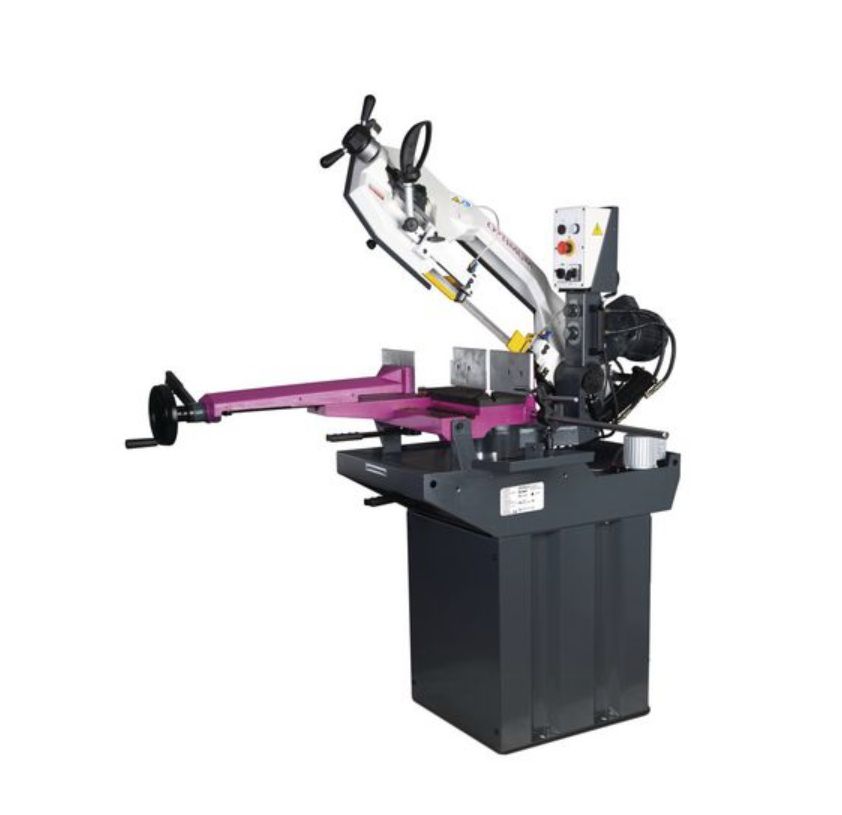

Sturmer Optimum OPTIsaw SD285E Metal Cutting Bandsaw 1.1kW 400v

Sturmer Optimum

OPTIsaw SD285E Metal Cutting Bandsaw 1.1kW 400v

ref: 3300287

• Low noise running
• Stable cast iron design
• High cutting accuracy due to vibration-free running

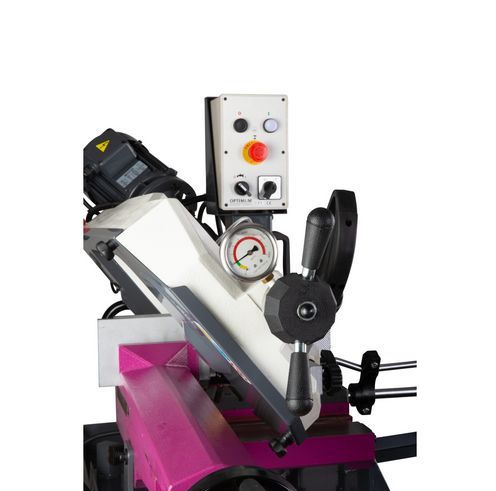

• Lowering of saw bow infinitely adjustable via hydraulic cylinder with throttle valve
• Microswitch for automatic limit switch
• Coolant device
• High-quality bi-metal saw band as standard equipment
• Adjustable material stop for serial work
• Robust machine base

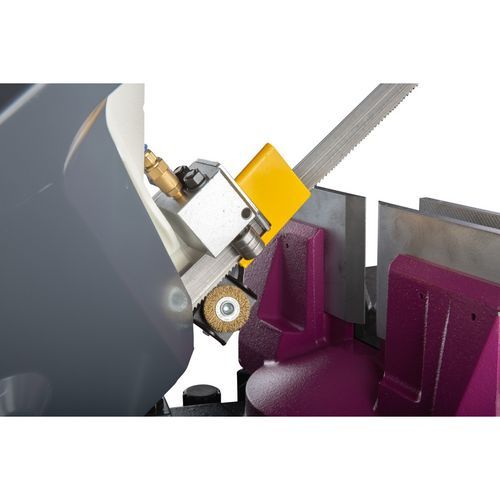

• Ball bearing saw band guide
• Well readable scale for angle adjustment
• Overload protection

Cutting ranges

• 0° round (full material) 223 mm
• 0° quadratic (full material) 180 mm
• 0° rectangle upright (full material) 110 x 245 mm
• -45° round (full material) 120 mm
• -45° quadratic (full material) 120 mm
• -45° rectangle horizontal (full material) 130 x 120 mm
• +45° round (full material) 145 mm
• +45° quadratic (full material) 145 mm
• +45° rectangle horizontal (full material) 170 x 145 mm
• +60° round (full material) 85 mm
• +60° quadratic (full material) 85 mm
• +60° rectangle horizontal (full material) 105 x 85 mm
• Explanation Cutting range: The cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).

• Width without material stop approx.: 550 mm
• Height lower end position approx.: 1580 mm
• Length approx.: 1450 mm
• Weight approx.: 245 kg

• Drive motor output: 1.1 kW
• Engine power coolant pump: 0,1 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

• Saw band speed(s): 45 / 90 m/min
• Saw band length: 2480 mm
• Saw band width: 27 mm
• Saw band thickness: 0,9 mm
• Cutting angle from to: -45 60 °
• Lifting the saw bow: manual
