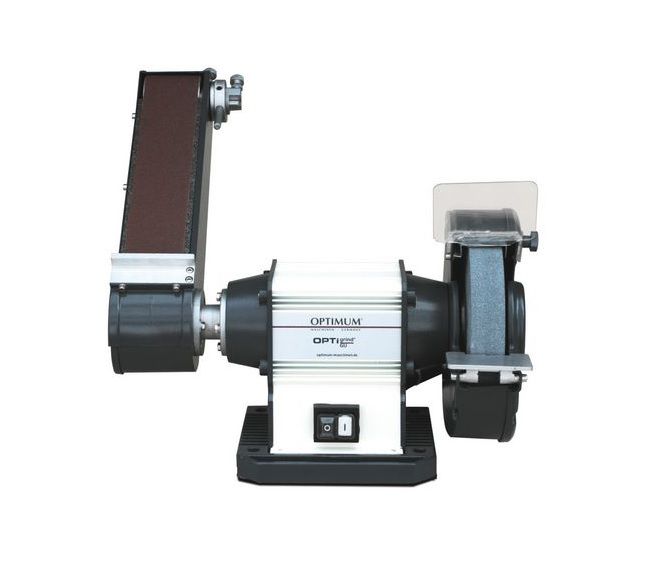

Sturmer Optimum OPTIgrind GU 20S Combi Bench Grinder Linisher 200mm x 30mm 600W 230v

Sturmer Optimum

OPTIgrind GU 20S Combi Bench Grinder Linisher 200mm x 30mm 600W 230v

ref: 3101570

• OPTI-grind GU 20S 200x30mm dia x 75mm sanding belt Combi grinder/linisher + extruded alu housing + larger HD flanges for high disc concentricity + 600W motor 230v
• Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
• Heavy, durable industrial design with maintenance-free motor
• Housing made of extruded aluminum
• Large, heavy mounting flanges and thus high disc concentricity
• Sanding attachment with graphite coating; prevents friction and heat
• Stop allows quick and easy sanding of workpieces
• Tape adjustment without tools - only adjustable with a handle screw
• Universal corundum grinding wheel and sanding belt included (Grinding wheel normal corundum fine K80, Sanding belt normal corundum fine K80)

Dimensions and weights

• Length approx.: 501 mm
• Width/depth approx.: 261 mm
• Height approx.: 459 mm
• Weight approx.: 20,7 kg

Electrical Data

• Drive motor output: 0,6 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

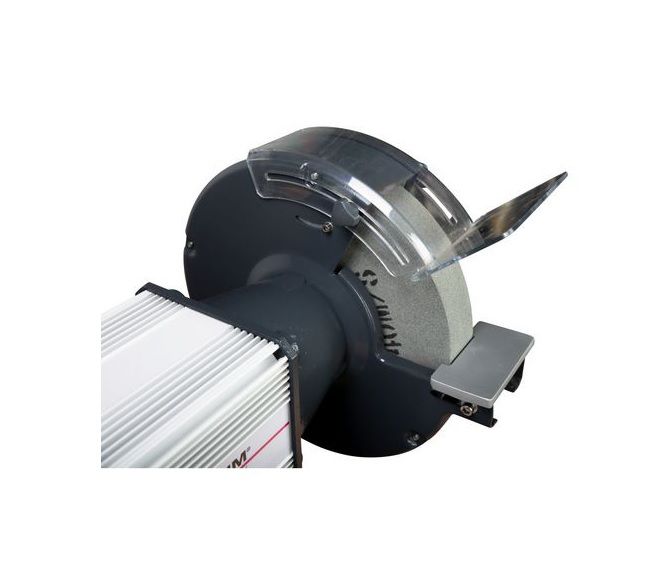

Grinding wheel(s)

• External diameter: 200 mm
• Width: 30 mm
• Drill hole: 32 mm
• Speed: 2850 min¯¹

Sanding attachment

• Grinding belt length: 762 mm
• Grinding belt width: 75 mm
• Grinding attachment swivel range: 90 °
• Extraction duct nominal width: 32 mm
• Grinding support length: 180 mm
• Grinding support width: 87 mm
• VPE: 1
