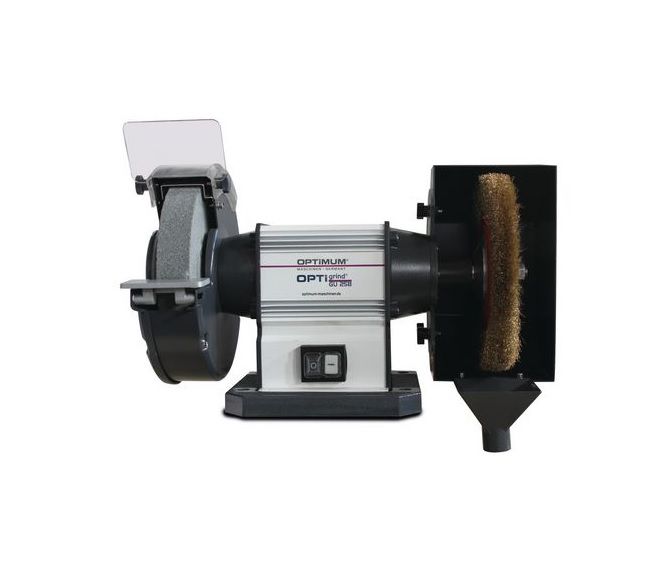

Sturmer Optimum OPTIgrind GU 20B Combi Bench Grinder 200mm x 30mm 600W 230v

Sturmer Optimum

OPTIgrind GU 20B Combi Bench Grinder 200mm x 30mm 600W 230v

ref: 3101610

• OPTI-grind GU 20B 200x30/25mm dia Combi grinder + extruded alu housing + larger HD flanges for high disc concentricity + 600W motor 230v
• Durable design with maintenance-free motor
• Housing made of extruded aluminum
• Large, heavy mounting flanges and thus high disc concentricity
• Grinding attachment with graphite coating; prevents friction and heat
• Stop allows quick and easy sanding of workpieces
• Includes Grinding wheel normal corundum coarse K36 and Round brush wire thickness 0.3 mm

Brush Housing

• Swiveling
• Extraction nozzle for connecting a suction device

Multipurpose wire brush

• High strength steel wire
• Available as accessories in different thicknesses

Brushes

• Multi Purpose wire brush outer diameter: 200 mm
• Multi Purpose wire brush width: 25 mm

Dimensions and weights

• Length approx.: 517 mm
• Width/depth approx.: 345 mm
• Height approx.: 282 mm
• Weight approx.: 18,5 kg

Electrical Data

• Drive motor output: 0,6 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Grinding wheel(s)

• External diameter: 200 mm
• Width: 30 mm
• Drill hole: 32 mm
• Speed: 2850 min¯¹
• VPE: 1

OPTIgrind GU 20B Optimum Bench Grinder Manual
