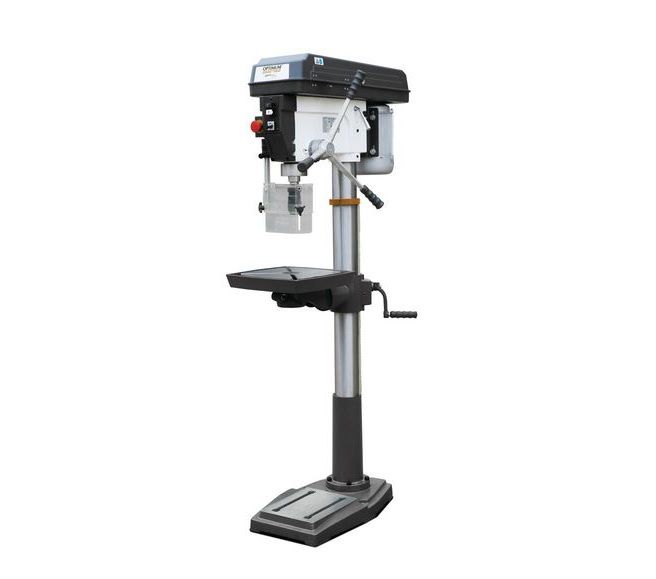

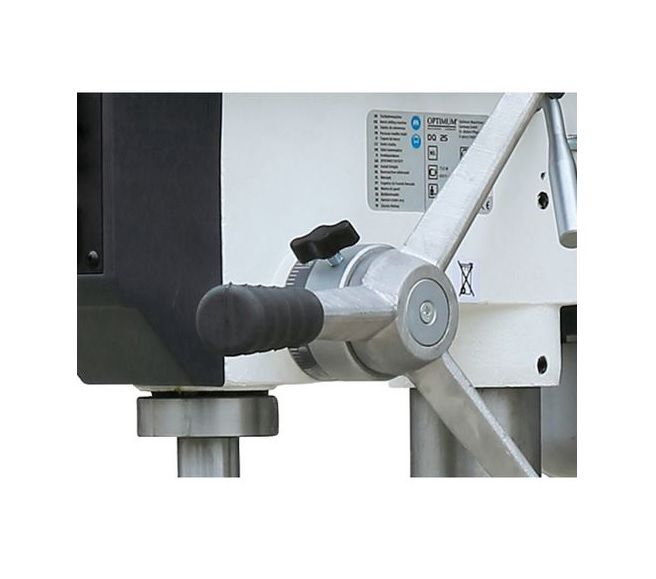

Sturmer Optimum OPTIdrill DQ 32 Upright Pillar Drill 1100W 415v

Sturmer Optimum

OPTIdrill DQ 32 Upright Pillar Drill 1100W 415v

ref: 3191049

• DQ 32 OPTI-drill 30mm (MK4) 9 Speed drill (120-1810 rpm) + GATES toothed V belt drive + + separate emergency STOP switch + guaranteed concentricity accuracy to 0.03mm + large base plate w T Slots + 1100W motor 415v

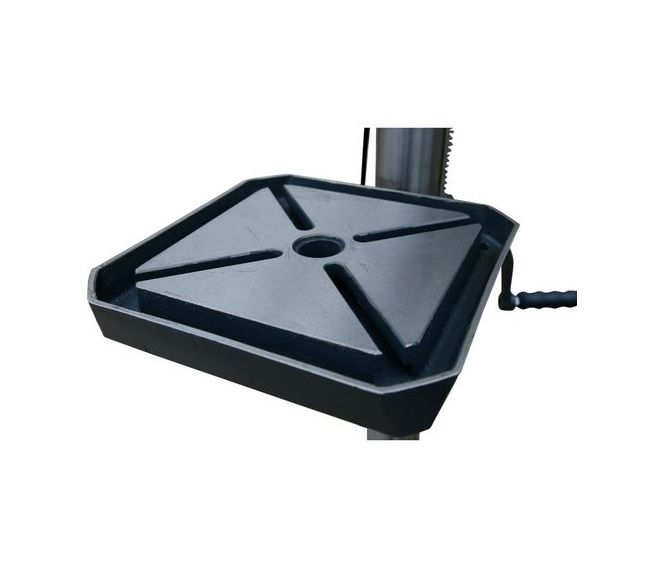

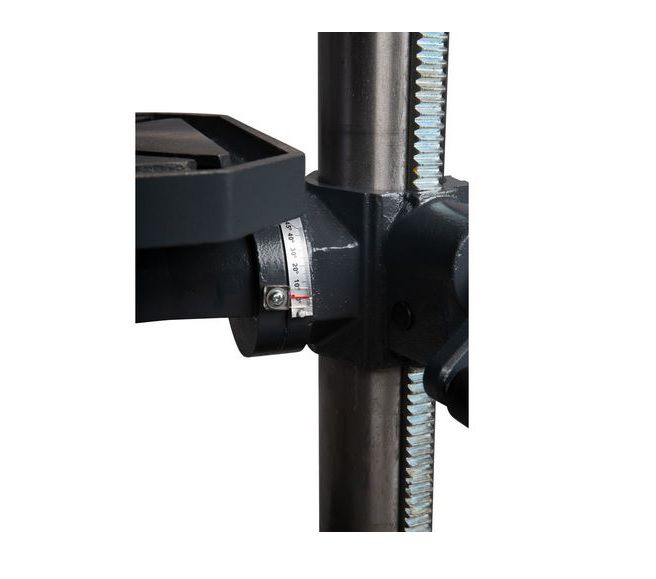

• Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
• Massive, large dimensioned base plate with grooves, heavily ribbed at the backside
• Ground multi-tooth driver

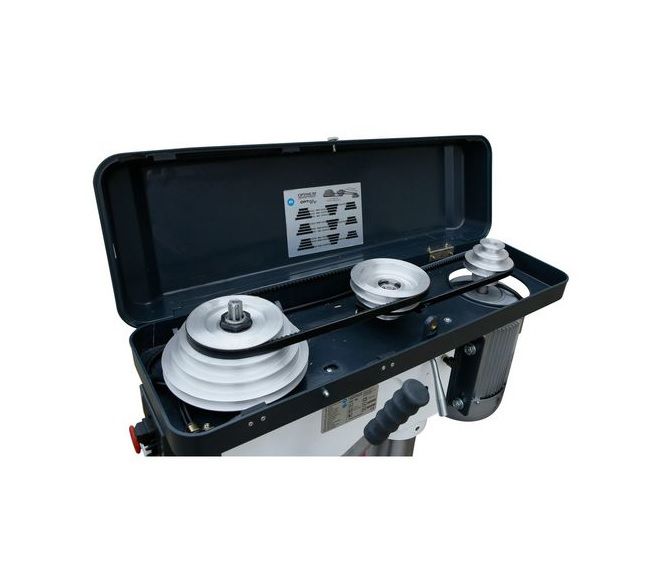

• Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
• Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
• Drill spindle with precision ball bearing
• Quick action drill chuck as standard equipment
• Belt cover with safety switch
• Easy to use switch according to IP 54
• Separate emergency stop pushbutton switch
• Includes Quick action drill chuck 1 - 16 mm, T-nuts, Morse taper MK 3/B16 (DQ 25), Morse taper MK 4/B16 (DQ 32), drift punch.

Dimensions and weights

• Column diameter: 92 mm
• Length approx.: 850 mm
• Width/depth approx.: 390 mm
• Height approx.: 1660 mm
• Weight approx.: 120 kg

Drilling performance

• Drilling performance steel (S235JR): 30 mm
• Continuous drilling performance steel (S235JR): 25 mm

Drilling table

• Workspace length: 355 mm
• Workspace width: 355 mm
• T-groove type: diagonal
• T-groove size: 14 mm
• T-groove number: 2
• Rotation: 360 °
• Angle: 45 °
• Load bearing capacity: 55 kg
• Max. distance spindle - drilling table: 640 mm

Electrical Data

• Drive motor output: 1,1 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 1170 mm
• Work area length: 575 mm
• Work area width: 350 mm
• Machine base T-groove size: 15 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 138 mm

Speed range

• Speed range: 120 – 1810 min¯¹
• Number of gears: 9

Spindle

• Quill stroke: 120 mm
• Spindle chuck: MT 4
• Reach: 254 mm
• VPE: 1

OPTIdrill DQ 32 Optimum Pillar Drill Manual
