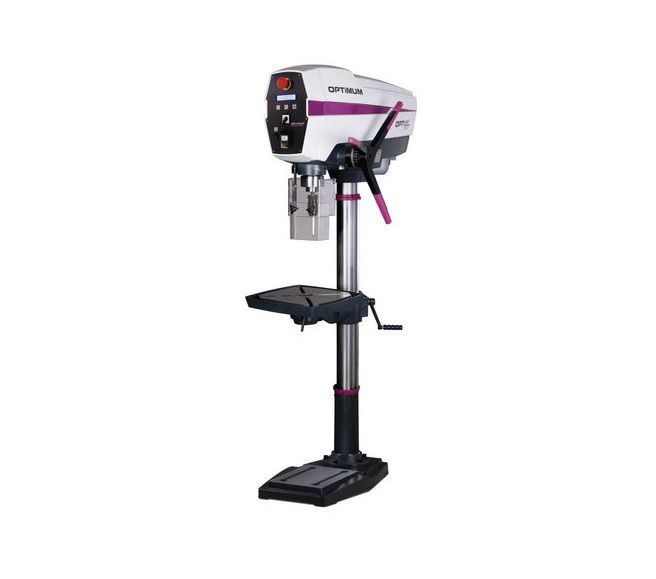

Sturmer Optimum OPTIdrill DP 33 Upright Pillar Drill 1100W 415v

Sturmer Optimum

OPTIdrill DP 33 Upright Pillar Drill 1100W 415v

ref: 3020640

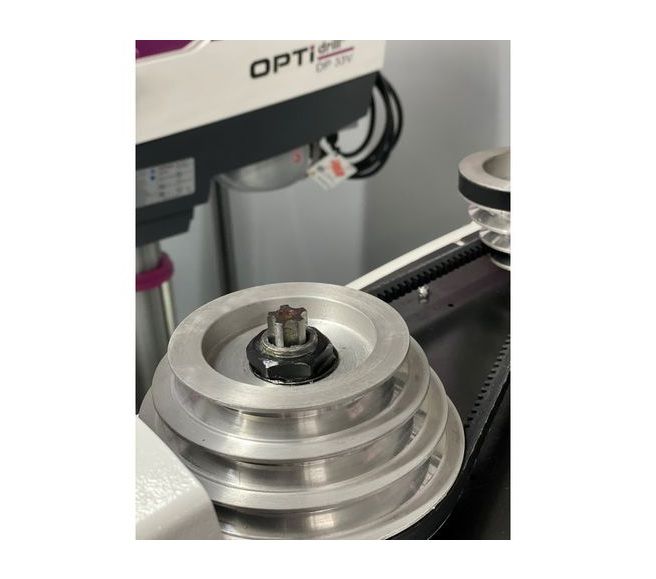

• OPTI-drill DP 33 Heavy duty industrial pillar drill + 9 gears 120-1810 rpm + GATES V toothed V belt drive + emergency safety stop + multi digital display + integrated LED + guaranteed concentricity to 0.2mm + thick walled steel column + 1100W industrial motor 415v
• Heavy-duty version
• Highly quiet running thanks to new spindle design
• Industrial motor

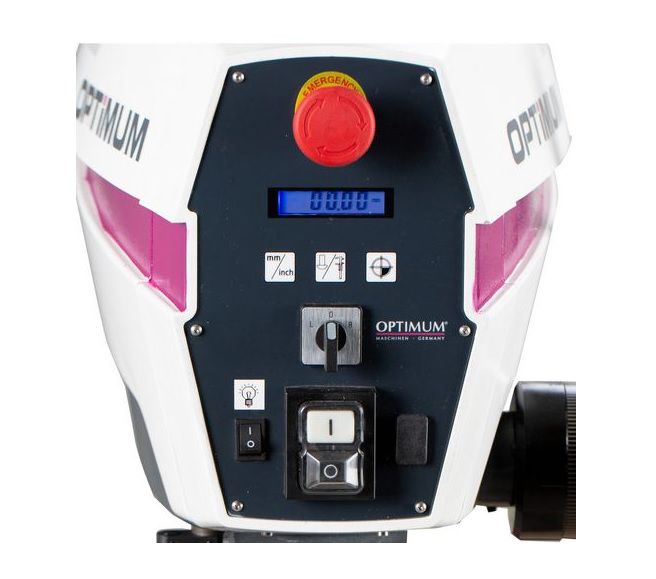

• Separate emergency-stop pushbutton

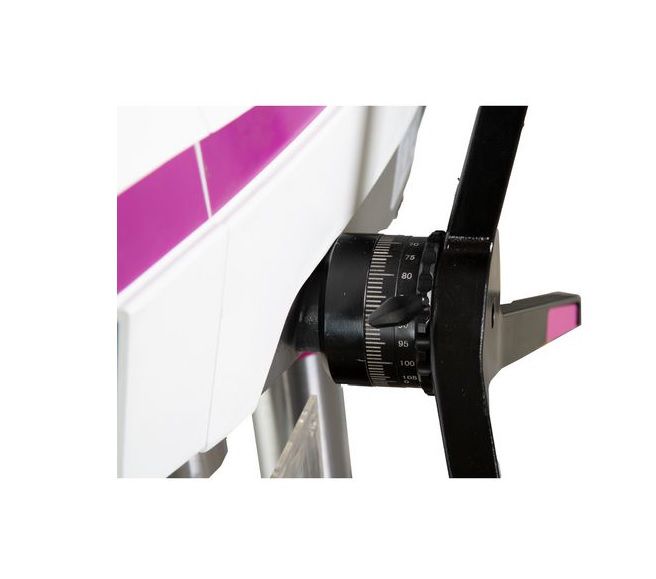

• Digital depth gauge
• LED machine light integrated in drill head
• Precisely machined, Stable drilling table with diagonally running T-slots with circulating cooling water channel
• Drilling table inclinable ± 45° and rotatable 360°

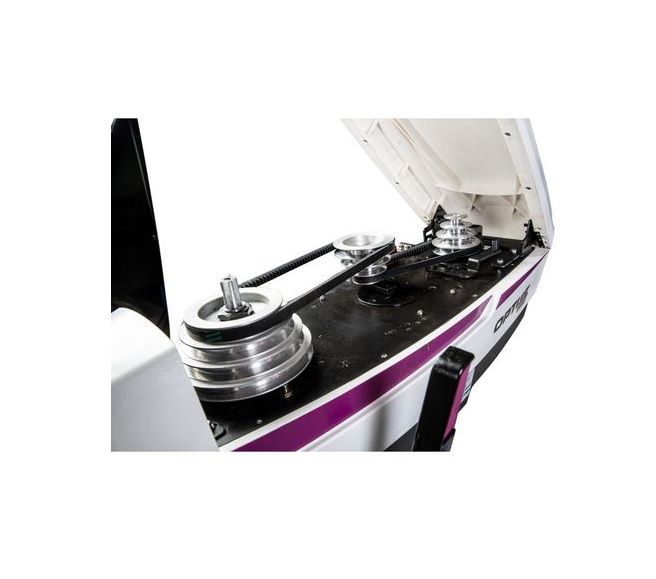

• V-belt cover with safety switch
• Precision spindle bore
• Machine operation Safety electrics in 24 V DC voltage
• Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
• Thick-walled steel column for high force absorption and stability
• Massive, large dimensioned base plate with T-slots

Dimensions and weights

• Column diameter: 92 mm
• Length approx.: 945 mm
• Width/depth approx.: 485 mm
• Height approx.: 1880 mm
• Weight approx.: 186 kg

Drilling performance

• Drilling performance steel (S235JR): 30 mm
• Continuous drilling performance steel (S235JR): 25 mm

Drilling table

• Workspace length: 387 mm
• Workspace width: 387 mm
• T-groove type: diagonal
• T-groove size: 14 mm
• T-groove number: 2
• Rotation: 360 °
• Angle: 45 °
• Max. distance spindle - drilling table: 775 mm

Electrical Data

• Drive motor output: 1,1 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 1300 mm
• Work area length: 270 mm
• Work area width: 327 mm
• Machine base T-groove size: 16 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 150 mm

Speed range

• Speed range: 120 – 1810 min¯¹
• Number of gears: 9
