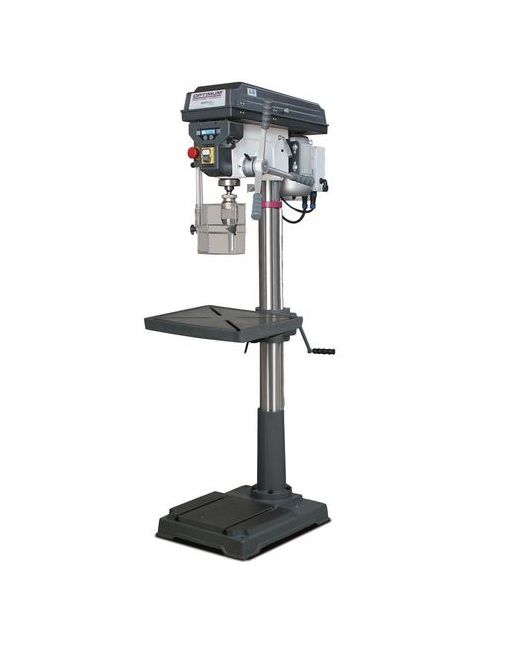

Sturmer Optimum OPTIdrill D 33 Pro Upright Pillar Drill 1100W 415v

X
Product Code: STU/3003040
Brand: Stuermer
Available to Order Please Contact Us
or Call 01726 828 388
£1,559.99 Inc. VAT
£1,299.99 Exc. VAT
Check out our Fair Deal on Delivery Promise
Stuermer
Special

Sturmer Optimum

OPTIdrill D 33 Pro Upright Pillar Drill 1100W 415v

ref: 3003040



Key Features

  • Industrial engine
  • Easy to use safety switch according to IP 54

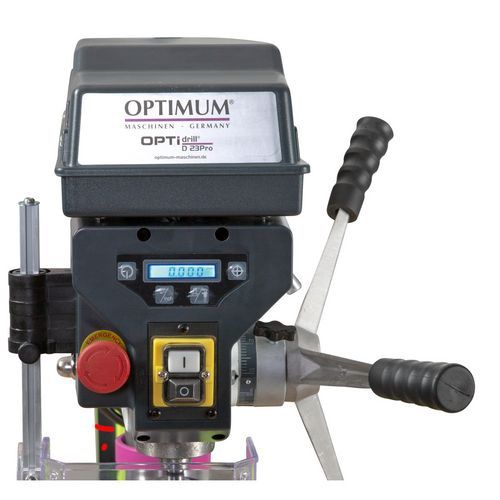

  • Digital drilling depth and speed indicator integrated in the housing
  • Separate emergency stop impact switch
  • Precision Spindle bore
  • Safety electronics in 24 V DC
  • Guaranteed concentricity measured less than 0.02 mm in the drill quill
  • Drill spindle with precision ball bearings
  • High quality keyless chuck
  • Digital depth gauge

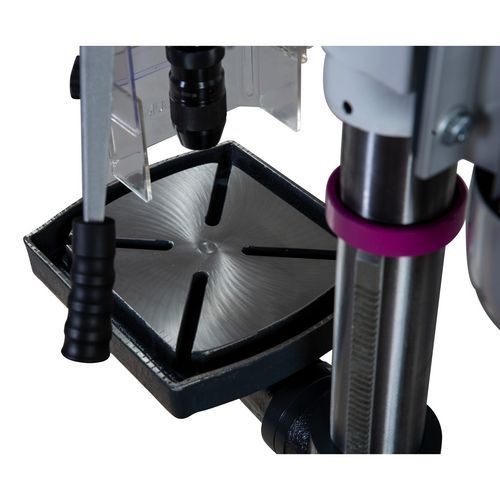

  • Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

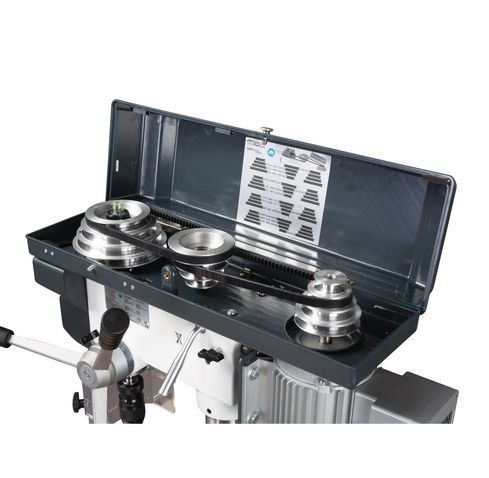

  • V-belt cover with safety switch
  • One piece cast aluminum die-cast quill lever with softgrip handles
  • Large, height-adjustable protective screen with safety switch
  • Heavy version of the entire machine
  • Massive, large base plate with T-slots, strongly ribbed on the back



Technical details

Dimensions and weights

  • Column diameter: 92 mm
  • Length approx.: 915 mm
  • Width/depth approx.: 450 mm
  • Height approx.: 1705 mm
  • Weight approx.: 137 kg

Drilling performance

  • Drilling performance steel (S235JR): 30 mm
  • Continuous drilling performance steel (S235JR): 25 mm

Drilling table

  • Workspace length: 475 mm
  • Workspace width: 425 mm
  • T-groove size: 14 mm
  • Rotation: 360 °
  • Angle: 45 °
  • Max. distance spindle - drilling table: 695 mm

Electrical Data

  • Drive motor output: 1,1 kW
  • Supply voltage: 400 V
  • Mains frequency: 50 Hz

Machine base

  • Max. distance spindle - machine base: 1180 mm
  • Work area length: 410 mm
  • Work area width: 325 mm
  • Machine base T-groove size: 16 mm
  • Machine base T-groove number: 2
  • Machine base T-groove spacing: 250 mm

Speed range

  • Speed range: 120 1810 min¯¹
  • Number of gears: 9 Stufen

Spindle

  • Quill stroke: 120 mm
  • Spindle chuck: MT 4
  • Reach: 254 mm
  • VPE: 1
