Sturmer MDB 21 Multi Hole Drilling Machine 415v
Product Code: STU/5943021
Brand: Stuermer
£4,319.99 Inc. VAT
£3,599.99 Exc. VAT

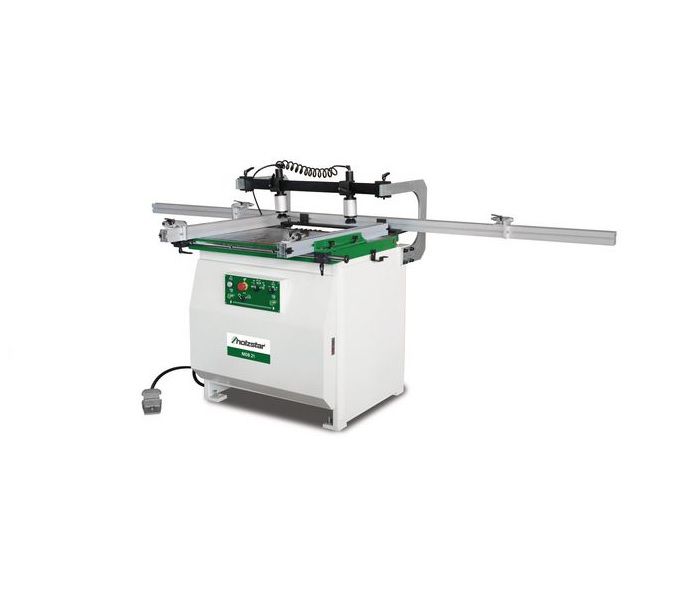

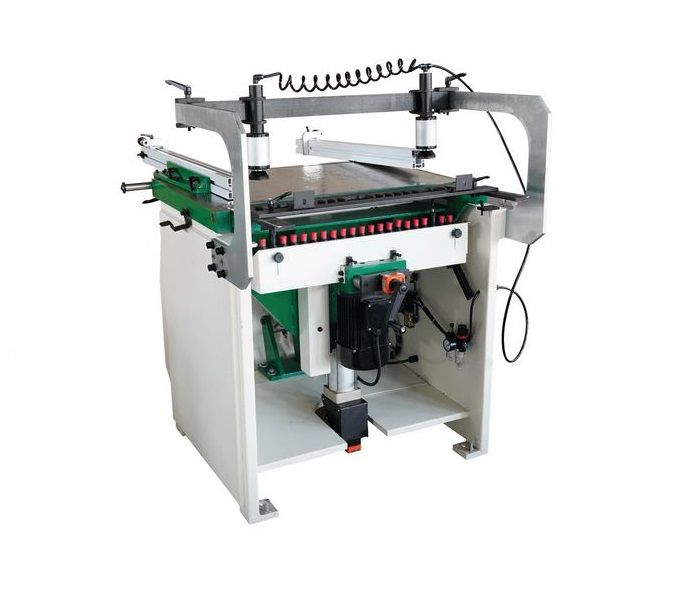

Sturmer MDB 21 Multi Hole Drilling Machine 415v
Key Features

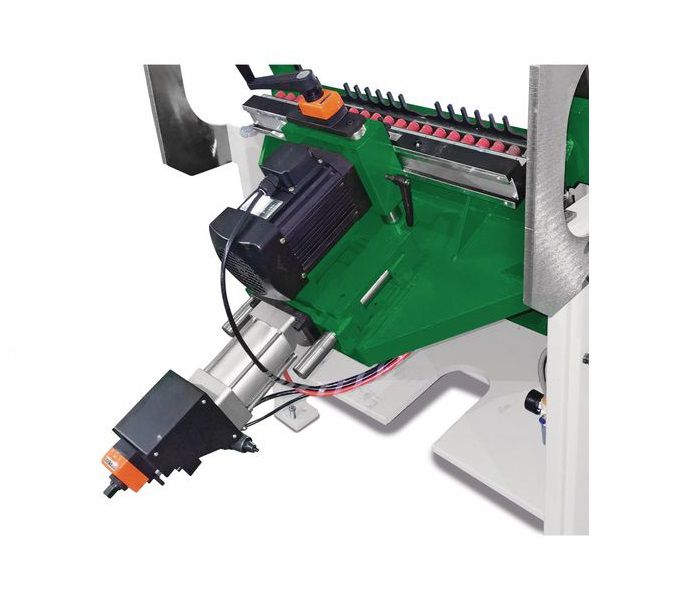

- Drilling unit with 21 spindles pneumatically swivelling from 0 to 90 degrees
- Adjustable drill feed
- Two adjustable pneumatic workpiece holders for flexible workpiece clamping
- Operation of the main functions clamping, drilling and releasing via foot pedal
- Drilling depth and drilling height display via counters
- Sturdy side stop profiles on the right and left with scale and one flip stop each
- 3 metre rear stop with scale and 2 flip stops
- Six quick-change drill chucks for 10 mm shank included
| Dimensions and weights | |
|---|---|
| Work table length | 890 mm |
| Work table width | 625 mm |
| Length approx. | 3000 mm |
| Width/depth approx. | 1300 mm |
| Height approx. | 1300 mm |
| Weight approx. | 360 kg |
| Electrical Data | |
|---|---|
| Drive motor input | 1.5 kW |
| Drive motor output | 1.1 kW |
| Nominal operating mode drive motor | S1 |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Pneumatic connection | |
|---|---|
| Working pressure | 6 – 8 bar |
| Spindle | |
|---|---|
| Max. drilling width | 640 mm |
| Drilling depth max. at 90° | 50 mm |
| Number of spindles | 21 |
| Distance between spindles | 32 mm |
| Spindle distance first to last | 640 mm |
| Spindle speed(s) | 2800 min¯¹ |
| Swivel of drill unit | 0 – 90 ° |
| Max. height of workpiece | 70 mm |
Items included
- Six quick-action chucks for shank diameter 10 mm
- Two rip fences with one flip stop each
- 3m aluminium stop with 2 flip stops
