Sturmer Holzstar UMK6 Universal Combination Woodworker with Stand 1000w 240v
Product Code: STU/5905600
Brand: Stuermer
In Offsite Stock - Delivery in 4 to 5 Days
Was £1,149.97 Inc. VAT
Now £999.98!
£833.32 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities
Sturmer Holzstar

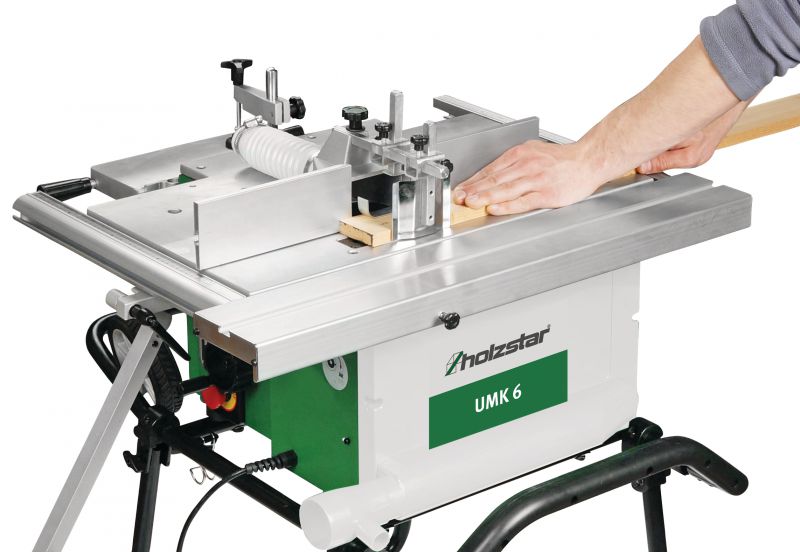

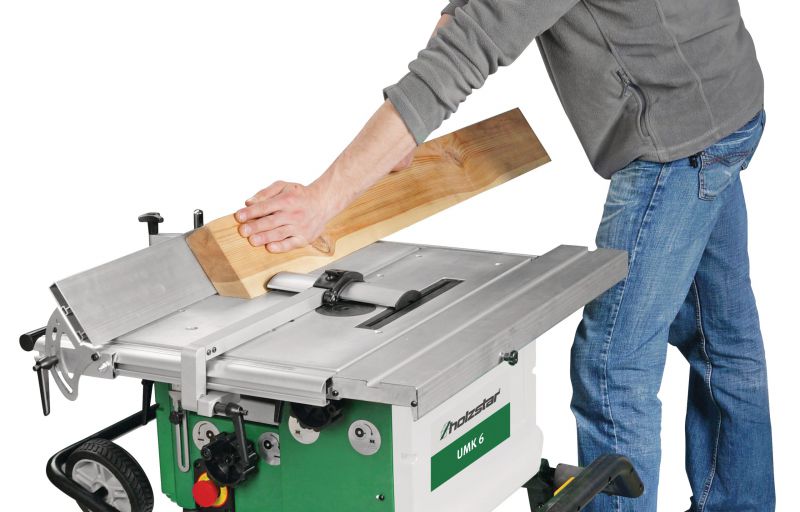

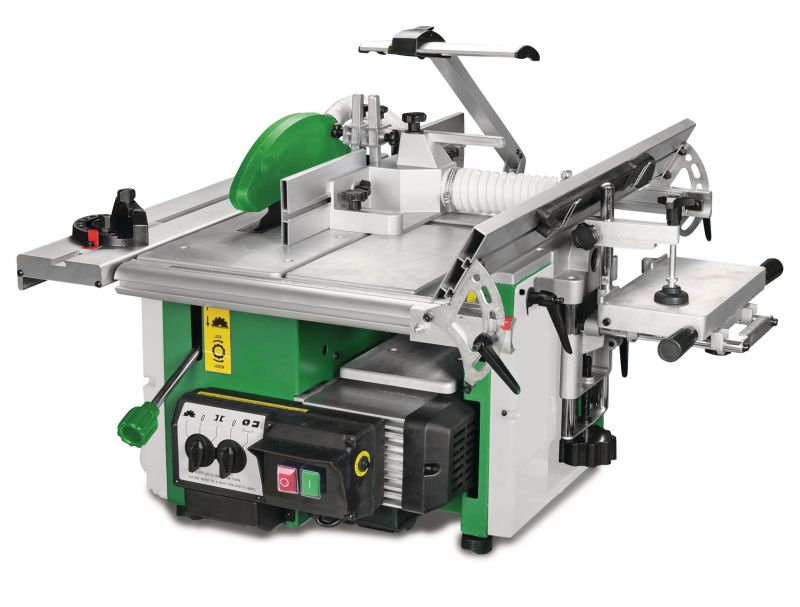

UMK6 Universal Woodworker Combination Machine with Stand 1000w 240v
ref: 5905600
Key Features
The Holzstar UMK 6 is a versatile entry-level combination woodworking machine that combines sawing, milling, planing, thicknessing, and slot mortising in one compact unit. Ideal for hobbyists and small workshops, it delivers precision, flexibility, and efficiency in the smallest of spaces.
- Precision 2-blade planer shaft with HSS blades
- Aluminum sliding carriage with mitre fence
- Compact, space-saving design with multiple applications
- Practical slot drilling device with workpiece clamp
- Two extraction ports for effective dust removal
- Quick and easy saw blade height adjustment

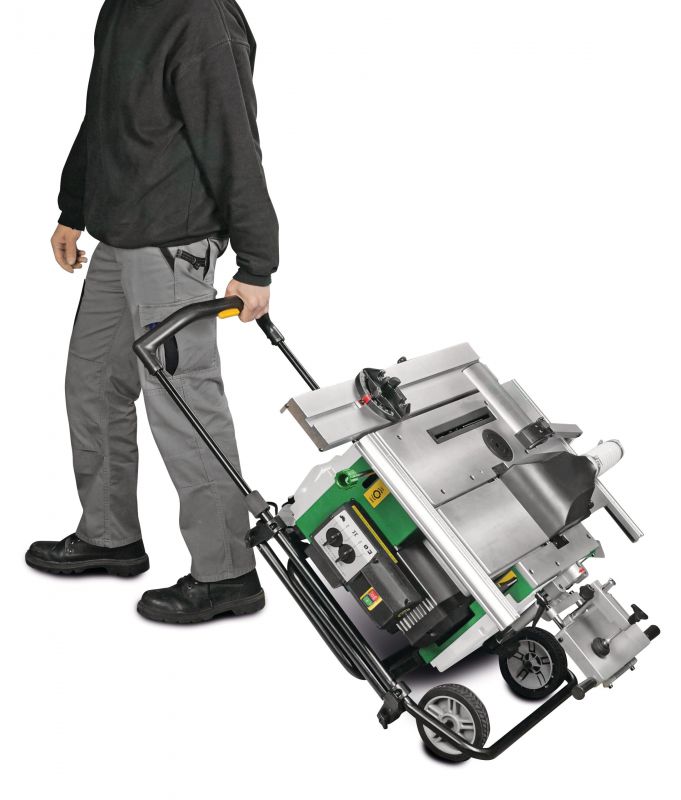

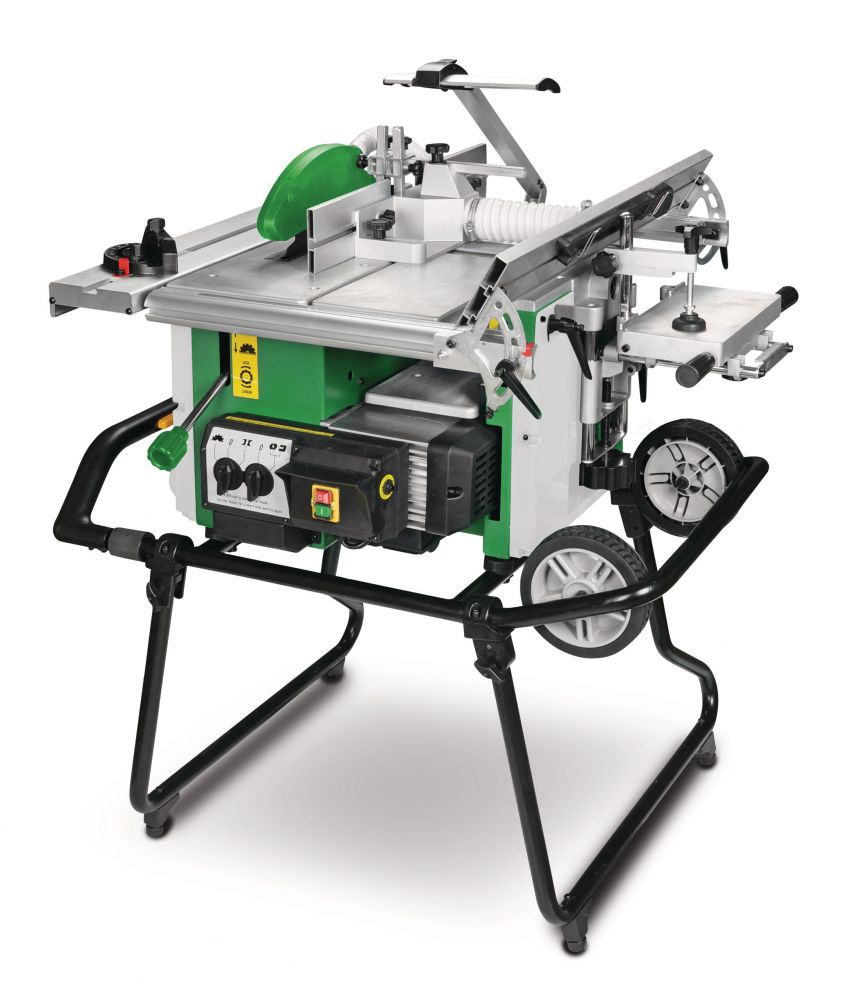

- Supplied with practical machine base and chassis for mobility and working height
Items included
- 2-blade planer shaft with HSS blades (set of 2)
- Saw blade 200 x 30 x 2.6 mm, Z20
- Aluminum sliding carriage for saw and router
- Multifunction fence for parallel cutting and planing
- Mitre fence
- Slot drilling device with clamping arm
- Workpiece pusher

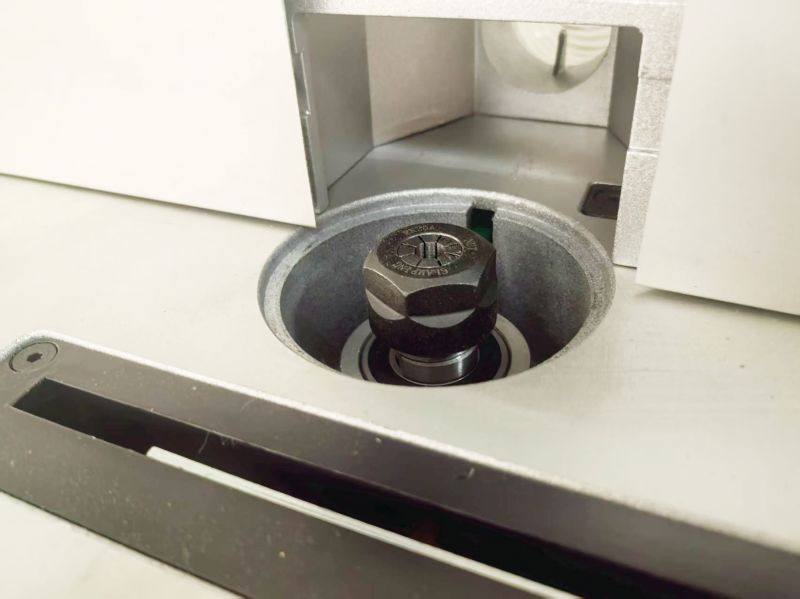

- ER20 collets 6 mm & 8 mm
- Clamping sleeves 6, 8, 10 mm
- Practical machine base with chassis
Technical details
Dimensions and Weights
- Length: 880 mm
- Width/Depth: 835 mm
- Height: 490 mm
- Net weight: 49 kg
Jointing
- Infeed table: 154 x 620 mm
- Max. cutting depth: 1.5 mm
Extraction Ports
- Saw blade guard: 30 mm
- Thicknesser: 50 mm
- Main port: 60 mm

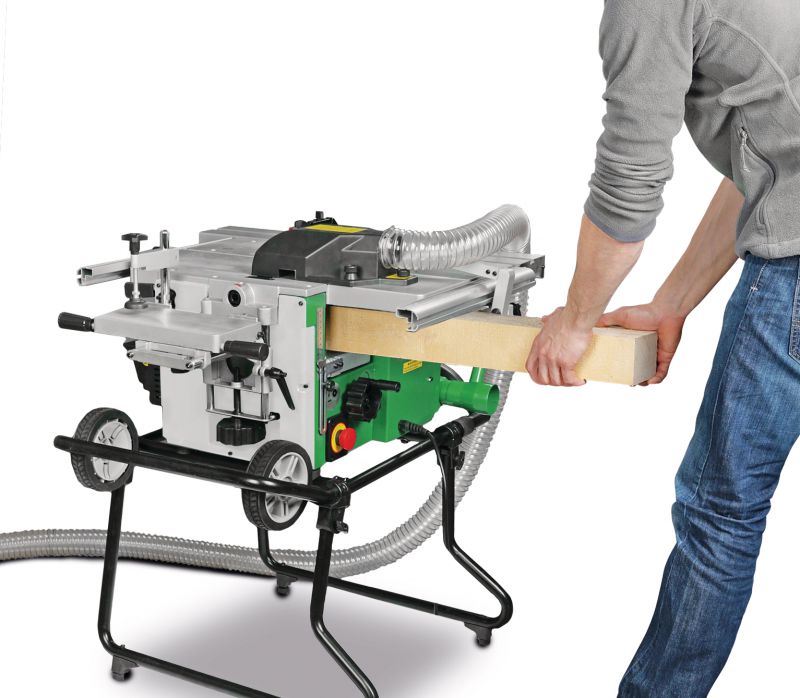

Thicknessing
- Table size: 320 x 154 mm
- Working height: 9 – 92 mm
- Max. cutting depth: 1 mm
Electrical Data
- Motor output: 1.0 kW
- Supply voltage: 230 V
- Frequency: 50 Hz
Sliding Carriage and Table
- Sliding table: 740 x 120 mm
- Table size: 620 x 300 mm
Milling Spindle
- Speed: 9000 min⁻¹
- Shaft diameter holder: 6 / 8 mm
Planing Shaft
- Diameter: 48 mm
- Number of blades: 2
- Speed: 6000 min⁻¹
Circular Saw Unit
- Max. cutting height (90°): 65 mm
- Saw blade: Ø200 mm
- Saw speed: 4200 min⁻¹
- Trimming length: 500 mm
Feed
- Feed speed: 7 m/min
- Feed shaft diameter: 20 mm
Slot Mortising Unit
- Table size: 260 x 125 mm
- Vertical stroke: 95 mm
- Drill depth: 60 mm
- Longitudinal stroke: 45 mm
- Shaft holder diameters: 6 / 8 / 10 mm
