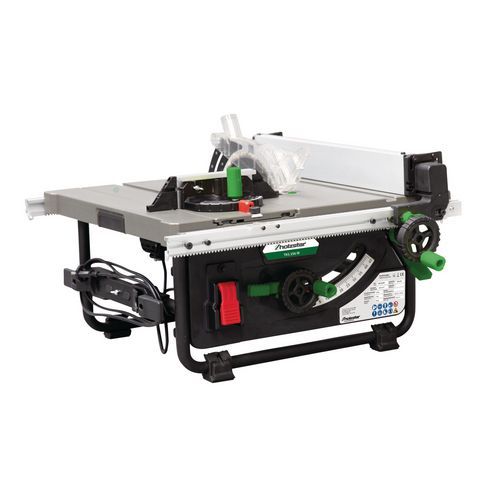

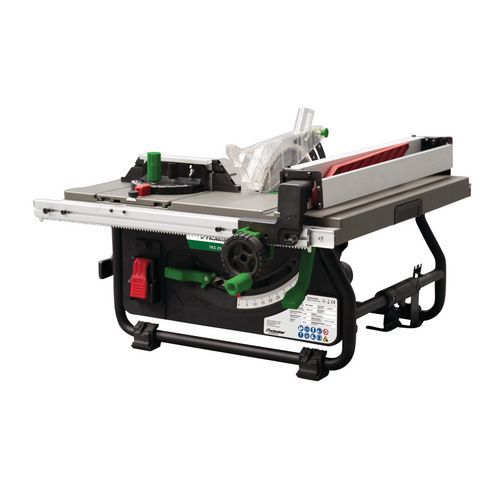

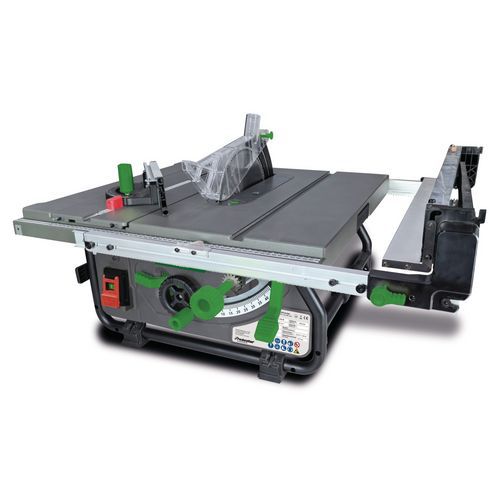

Sturmer Holzstar TKS 256 M Circular Table Saw 255mm 230v
Product Code: STU/5902256
Brand: Stuermer
£533.33 Inc. VAT
£444.44 Exc. VAT
Sturmer Holzstar
TKS 256 M Circular Table Saw 255mm 230v
ref: 5902256
Key Features
- Powerful 1800 W motor for a cutting height of up to 80 mm
- Easy to transport thanks to the low weight of just 20 kg

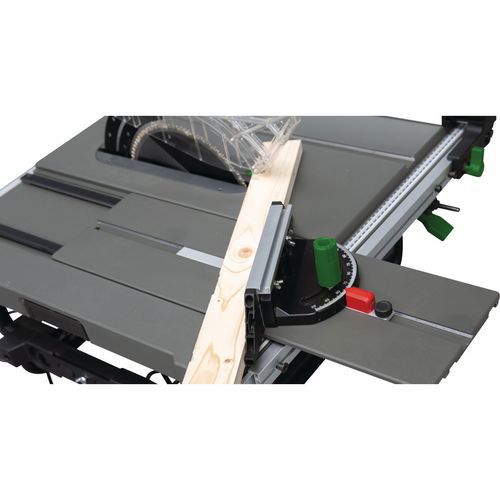

- Integrated sliding carriage with mitre fence and 45° inclination of the saw blade possible

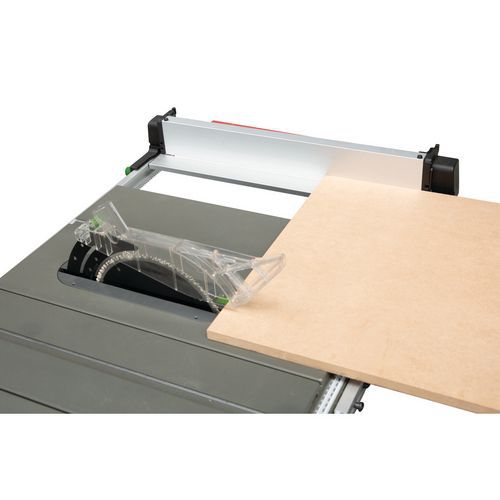

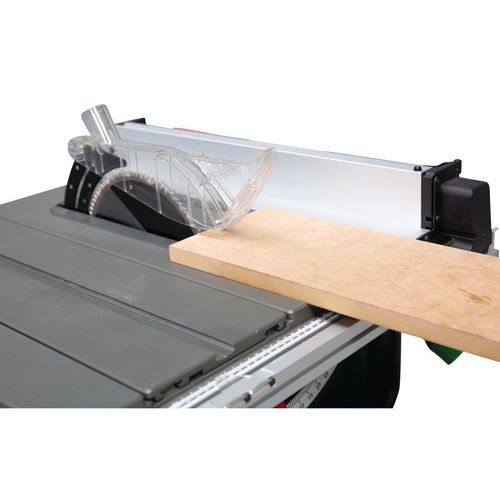

- Precise adjustment of the rip fence via toothed rack for a cutting width of up to 620 mm

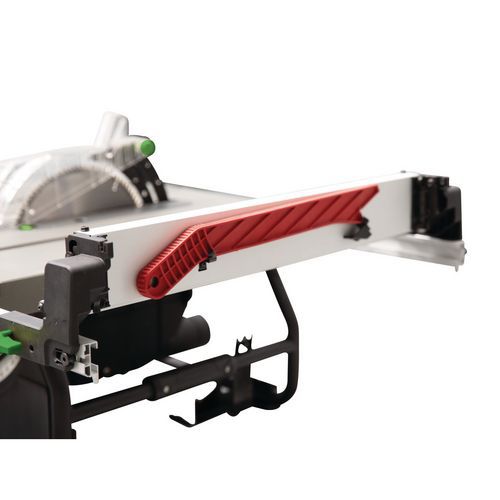

- Folding rip fence for workpiece support and stop for thin workpieces

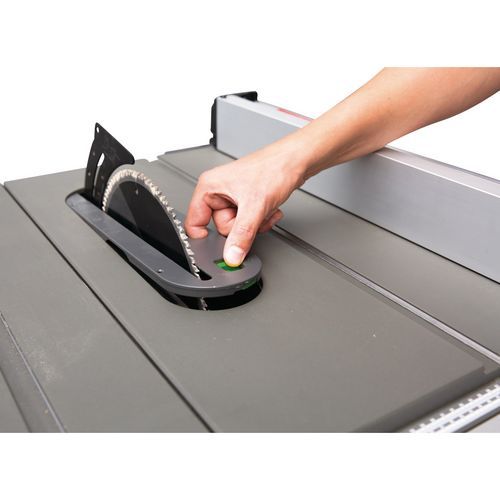

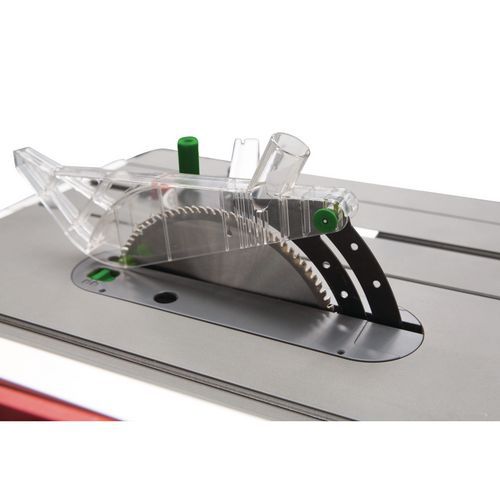

- Tool-free change of the saw blade guard and table insert
Items included
- saw blade: 255 x 30 x 3mm (48T)
- saw guard
- parallel guide
- angle guide
Technical details
Circular saw unit
- Max. cutting width with rip fence: 620 mm
- Max. cross cut width left from saw blade: 400 mm
- Saw blade angle: 90 45 °
- Max. cutting height 90°: 80 mm
- Max. cutting height 45°: 55 mm
- (Main) saw blade diameter: 255 mm
- Diameter saw blade bore: 30 mm
- (Main) saw blade speed: 6000 min¯¹
Dimensions and weights
- Length approx.: 630 mm
- Width/depth approx.: 649 mm
- Height approx.: 329 mm
- Weight approx.: 20 kg
Electrical Data
- Absorbed power drive motor: 1,8 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
Extraction port
- Extraction port diameter bottom: 63,5 mm
- Saw blade protection extraction port diameter: 35 mm
Noise emission
- Sound pressure level
- 95 dB(A)
Sliding carriage and table
- Table length: 630 mm
- Table width: 587 mm
- Work height: 330 mm
- VPE: 1
