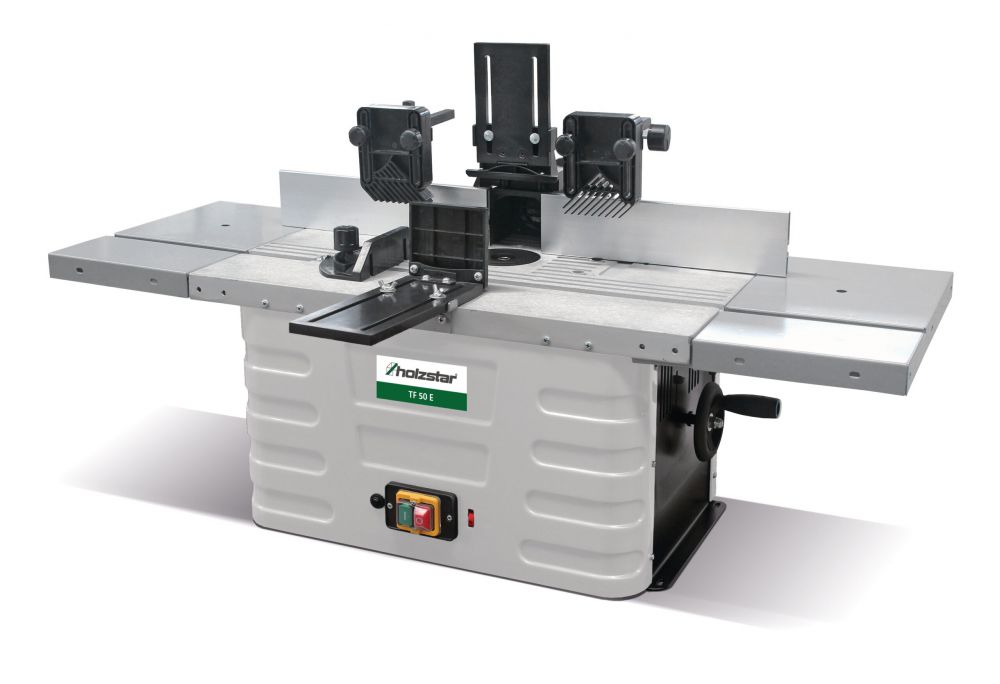

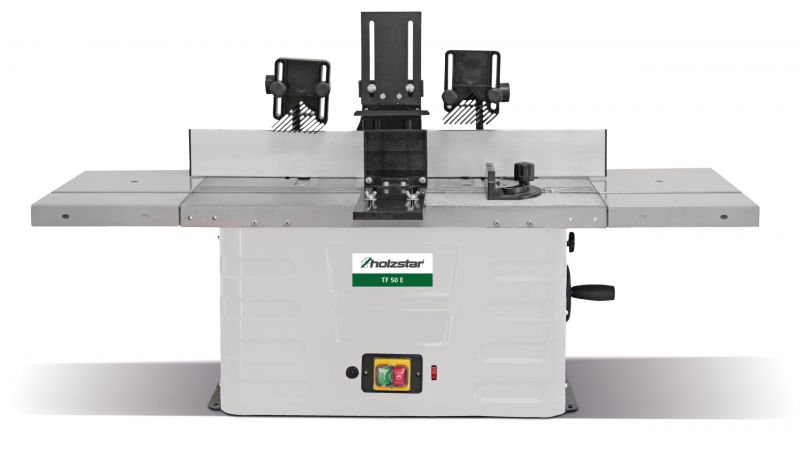

Sturmer Holzstar TF 50 E Benchtop Table Router 230V

Sturmer Holzstar

TF 50 E Benchtop Table Router 230V

ref: 5901905

• Compact and handy design for comfortable use
• Variable speed range from 11500 to 24000 min¯¹
• Spindle height adjustable from 0 to 40 mm
• Large table support thanks to standard extensions on both sides
• Work table made of aluminum
• Mitre stop and various collets included

Dimensions and weights

• Max. length: 610 mm
• Max. width/depth: 360 mm
• Max. height: 311 mm
• Length approx.: 1030 mm
• Width/depth approx.: 360 mm
• Height approx.: 311 mm
• Weight approx.: 21 kg

Electrical Data

• Drive motor output: 1,5 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Extraction port

• Extraction port diameter: 100 mm

Milling cutter diameter max.

• Max. tool diameter: 50 mm

Milling spindle

• Stroke: 40 mm
• Speed(s): 11500 – 24000 min¯¹

Work table

• Length: 610 mm
• Width: 360 mm
• Table height: 311 mm

• Table extensions on both sides

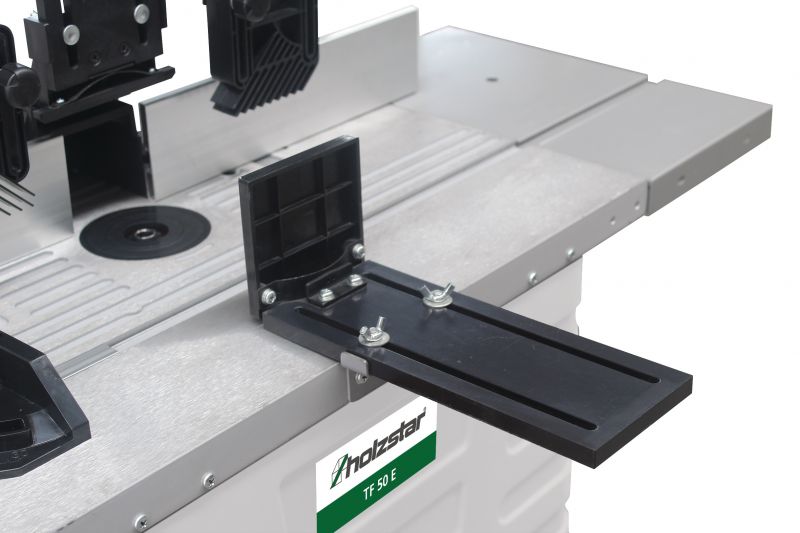

• Mitre fence
• Aluminum routing fence
• Collets included 6mm, 8mm, 12mm, 1/4" , 1/2"
• Assembly tool (hexagon socket wrench 4mm and 5mm, wrench SW19 and SW24)
