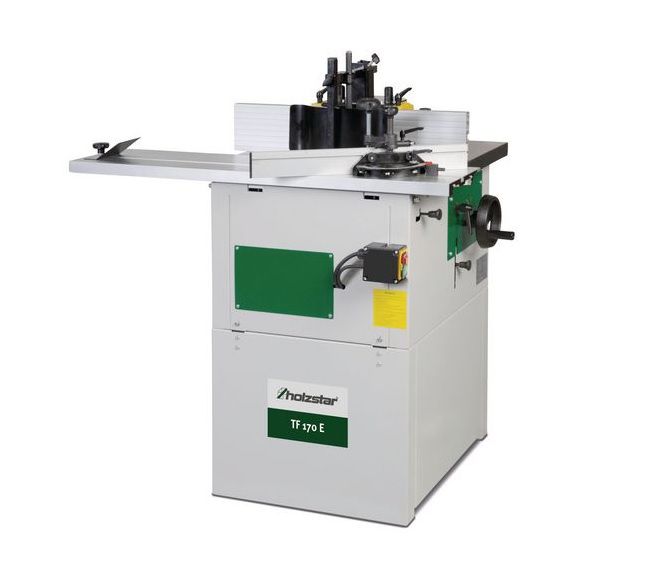

Sturmer Holzstar TF 170 E Spindle Moulder 4-Speed 1500W 230v
Product Code: STU/5901917
Brand: Stuermer
In Stock
£1,079.99 Inc. VAT
£899.99 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Sturmer Holzstar
TF 170 E Spindle Moulder 4-Speed 1500W 230v
ref: 5901917
Key Features
- TF 170 E 4 Speed spindle moulder (1400-9000 rpm) + alu sliding table beam w mitre att + cast iron table + Shaw type safety guard + 1500W motor 230v
- Smooth-action sliding carriage for precise workpiece guidance
- Milling stop with finely adjustable aluminium stops
- Quick and easy change of the speed by means of splined belts
- Large work surface with torsion-free cast-iron table
- Milling unit made of grey cast iron
- Downholder for precise workpiece guidance
Technical details
Dimensions and weights
- Max. length: 1000 mm
- Max. width/depth: 950 mm
- Max. height: 1170 mm
- Length approx.: 1000 mm
- Width/depth approx.: 900 mm
- Height approx.: 1140 mm
- Weight approx.: 96 kg
Electrical Data
- Drive motor output: 1,1 kW
- Absorbed power drive motor: 1,5 kW
- Total rated value: 1,5 kVA
- Mains frequency: 50 Hz
Milling cutter diameter max.
- Max. tool diamter: 160 mm
Milling spindle
- Stroke: 105 mm
- Max. protrusion over the table: 105 mm
- Speed(s): 1400/4000/6000/9000 min¯¹
- Arbor diameter: 30 mm
Work table
- Length: 600 mm
- Width: 400 mm
- Table height: 850 mm
- Sliding carriage length: 1000 mm
- Sliding carriage width: 218 mm
- Sliding carriage height: 850 mm
